NCP715 Series

LDO Regulator, 50 mA, Ultra-Low Iq

Catalog

LDO Regulator, 50 mA, Ultra-Low Iq

Part	Protection Features	Output Type	Package / Case	Current - Output	Voltage - Output (Min/Fixed)	Number of Regulators	Supplier Device Package	Supplier Device Package	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Mounting Type	PSRR	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Supplier Device Package	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Supplied Contents	Channels per IC	Board Type	Regulator Type
ON Semiconductor NCP715SQ12T2G	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.81 mOhm	5-TSSOP SC-70-5 SOT-353	50 mA	1.2 V	1	SC-88A	SOT-353	SC-70-5	-40 °C	125 ¯C	Positive	Surface Mount	60 dB	24 V
ON Semiconductor NCP715SQ50T2G	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.81 mOhm	5-TSSOP SC-70-5 SOT-353	50 mA	5 V	1	SC-88A	SOT-353	SC-70-5	-40 °C	125 ¯C	Positive	Surface Mount	56 dB	24 V	4.2 µA	0.35 V	5.8 µA
ON Semiconductor NCP715MX12TBG	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.81 mOhm	6-XFDFN	50 mA	1.2 V	1				-40 °C	125 ¯C	Positive	Surface Mount	60 dB	24 V				6-XDFN (1.5x1.5)

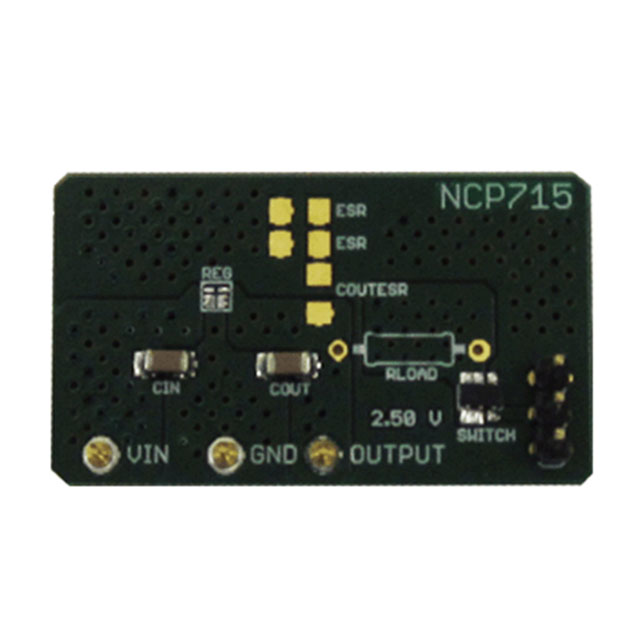

ON Semiconductor NCP715MXTBGEVB				50 mA																6 V	24 V	NCP715	Board(s)	1 - Single	Fully Populated	Positive Fixed
ON Semiconductor NCP715SQ30T2G	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.81 mOhm	5-TSSOP SC-70-5 SOT-353	50 mA		1	SC-88A	SOT-353	SC-70-5	-40 °C	125 ¯C	Positive	Surface Mount	60 dB	24 V	4.2 µA	0.4 V	5.8 µA
ON Semiconductor NCP715MX25TBG	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.81 mOhm	6-XFDFN	50 mA	2.5 V	1				-40 °C	125 ¯C	Positive	Surface Mount	60 dB	24 V	4.2 µA	0.45 V	5.8 µA	6-XDFN (1.5x1.5)
ON Semiconductor NCP715MX18TBG	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.81 mOhm	6-XFDFN	50 mA	1.8 V	1				-40 °C	125 ¯C	Positive	Surface Mount	60 dB	24 V	4.2 µA		5.8 µA	6-XDFN (1.5x1.5)
ON Semiconductor NCP715SN25T1G	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.81 mOhm	SOT-23-5 Thin TSOT-23-5	200 mA	2.5 V	1				-40 °C	125 °C	Positive	Surface Mount	60 dB	24 V	5.8 µA	0.45 V		5-TSOP

Catalog

LDO Regulator, 50 mA, Ultra-Low Iq

Key Features

• Operating Input Voltage Range: 2.5 V to 24 V

• 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.0 V, 3.3 v, 5 V Fixed output Voltagege Options

• Low 4.7 uA typ Quiescent Current

• PSRR 54 dB at 1 kHz

• Thermal Shutdown and Current Limit Protections

• Available in XDFN6 1.5 x 1.5 mm, TSOP-5 and SC-70 packages

Description

The NCP715 is 50 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra-low ground current consumption (4.7 uA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
