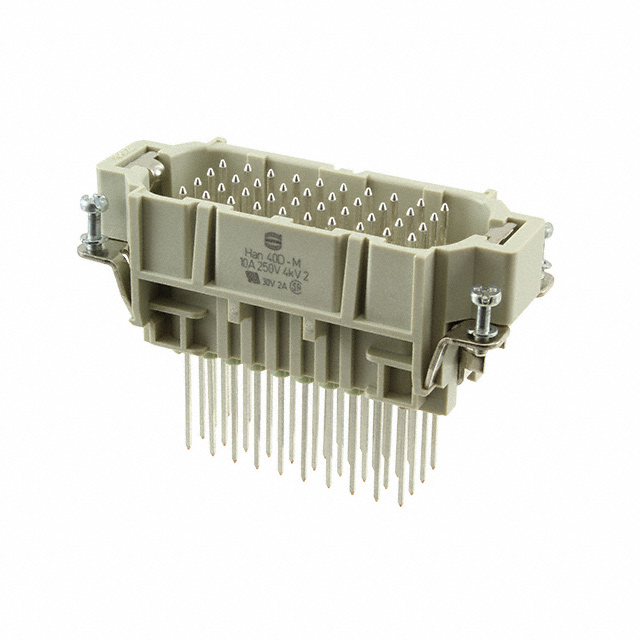

HAN D 40 POS. M INSERT WIRE WRAP ROHS COMPLIANT: NA
| Part | Housing Material | Material Flammability Rating | Contact Material | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Gender | Size | Connector Type | Termination Style | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Polycarbonate (PC) | UL94 V-0 | Copper Alloy | 10 A | 125 °C | -40 C | 40+Ground | Male | 16 B | Insert | Wire Wrap | 250 V |
