MAX20056 Series

Catalog

IC LED DRVR CTRLR PWM 24TSSOP

Part	Voltage - Supply (Min) [Min]	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Number of Outputs	Mounting Type	Type	Topology	Qualification	Frequency [Max]	Frequency [Min]	Current - Output / Channel	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Supply (Max) [Max]	Supplier Device Package	Package / Case	Package / Case	Package / Case [y]	Voltage - Output
Analog Devices Inc./Maxim Integrated MAX20056BAUGB/V+	4.5 V	Automotive	-40 °C	125 °C	PWM	6	Surface Mount	DC DC Controller	SEPIC Step-Down (Buck) Step-Up (Boost)	AEC-Q100	2.2 MHz	400 kHz	120 mA	4.8 V	5.2 V	42 V	24-TSSOP-EP	0.173 in	24-TSSOP Exposed Pad	4.4 mm
Analog Devices Inc./Maxim Integrated MAX20056BAUGB/V+T	4.5 V	Automotive	-40 °C	125 °C	PWM	6	Surface Mount	DC DC Controller	SEPIC Step-Down (Buck) Step-Up (Boost)	AEC-Q100	2.2 MHz	400 kHz	120 mA			42 V	24-TSSOP-EP	0.173 in	24-TSSOP Exposed Pad	4.4 mm
Analog Devices Inc./Maxim Integrated MAX20056BAUGA/V+T	4.5 V	Automotive	-40 °C	125 °C	PWM	6	Surface Mount	DC DC Controller	SEPIC Step-Down (Buck) Step-Up (Boost)	AEC-Q100	2.2 MHz	400 kHz	120 mA			42 V	24-TSSOP-EP	0.173 in	24-TSSOP Exposed Pad	4.4 mm	5 V

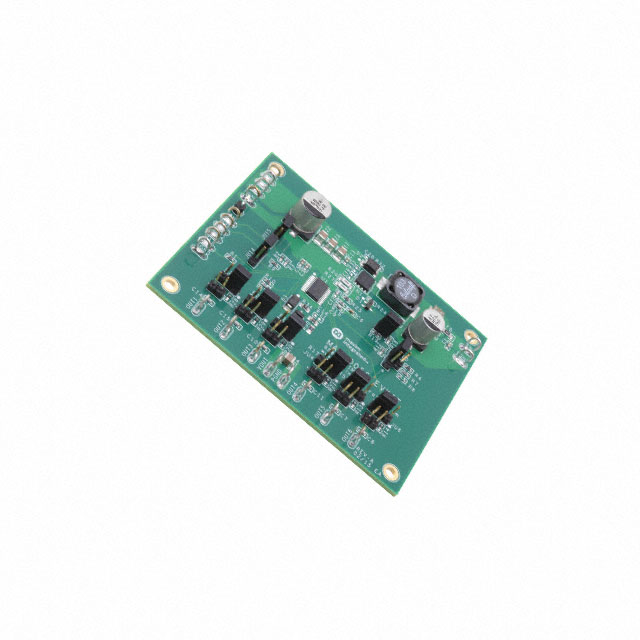

Analog Devices Inc./Maxim Integrated MAX20056BEVKIT#
Analog Devices Inc./Maxim Integrated MAX20056BAUGA/V+	4.5 V	Automotive	-40 °C	125 °C	PWM	6	Surface Mount	DC DC Controller	SEPIC Step-Down (Buck) Step-Up (Boost)	AEC-Q100	2.2 MHz	400 kHz	120 mA			42 V	24-TSSOP-EP	0.173 in	24-TSSOP Exposed Pad	4.4 mm	5 V
