837-062 Series
Manufacturer: EDAC Inc.
Beta
⌘K

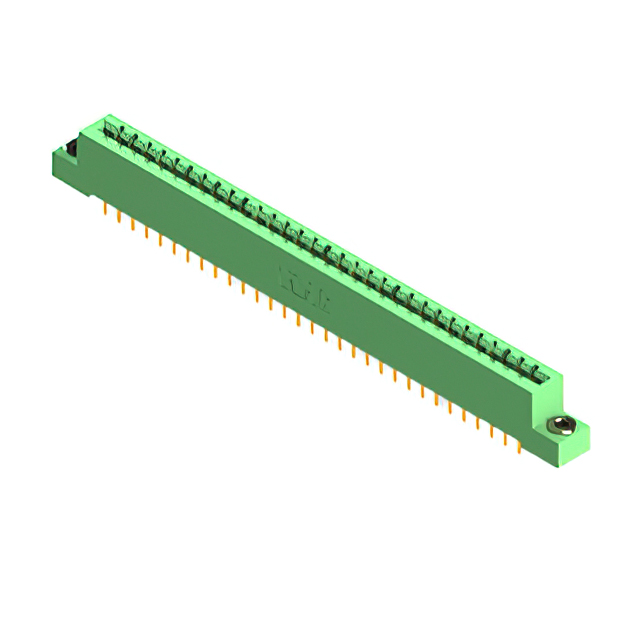

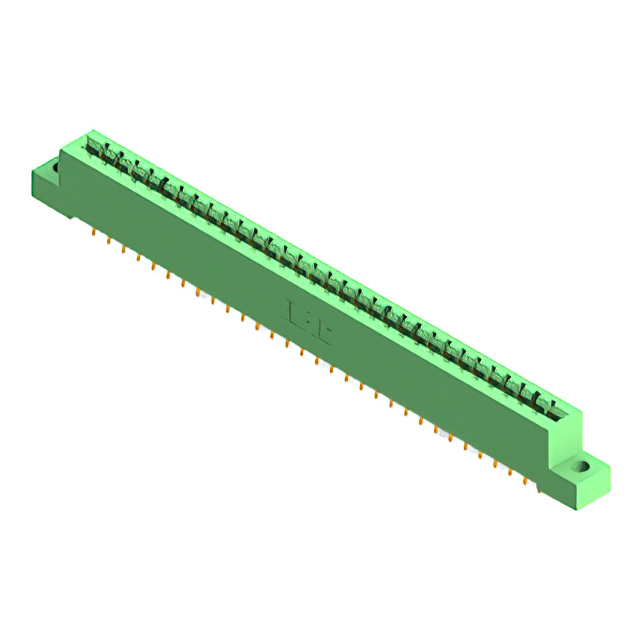

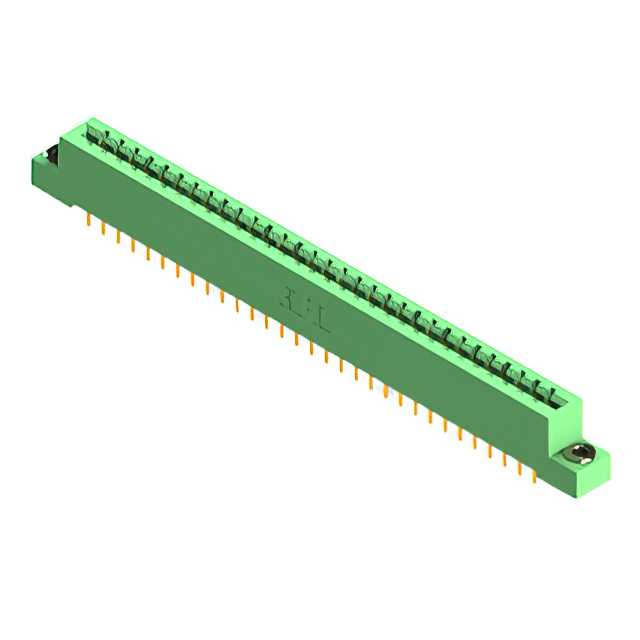

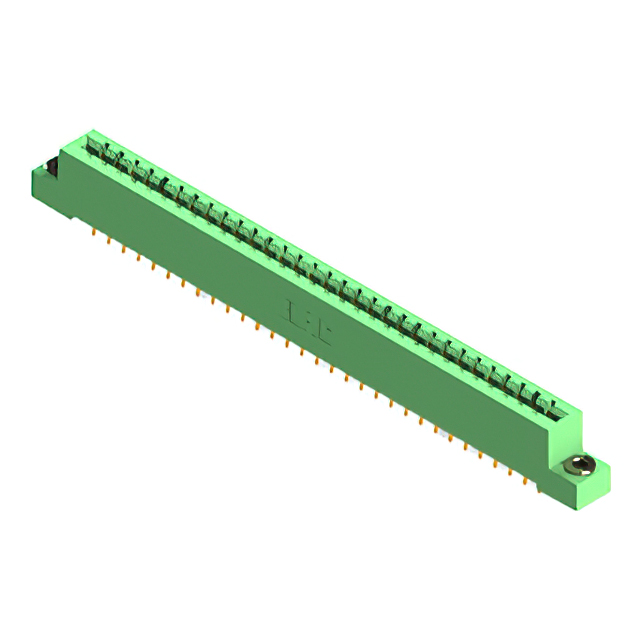

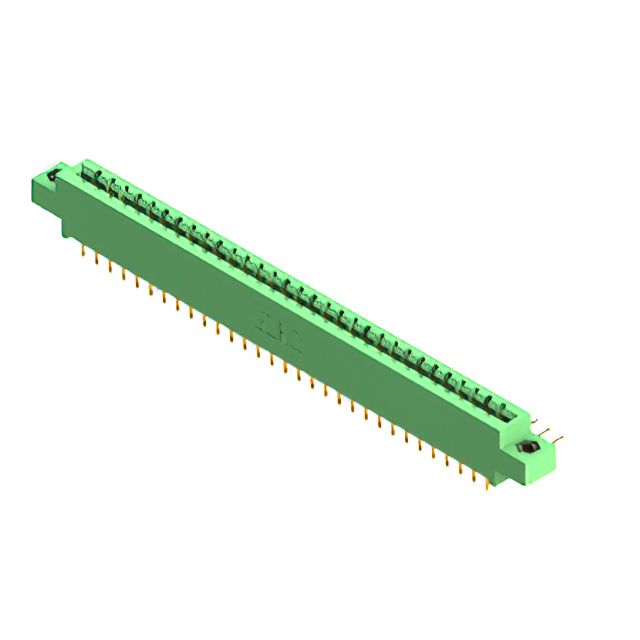

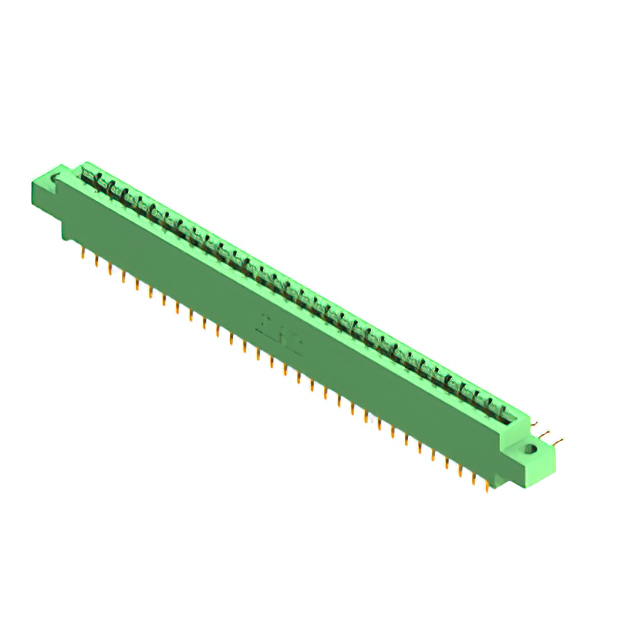

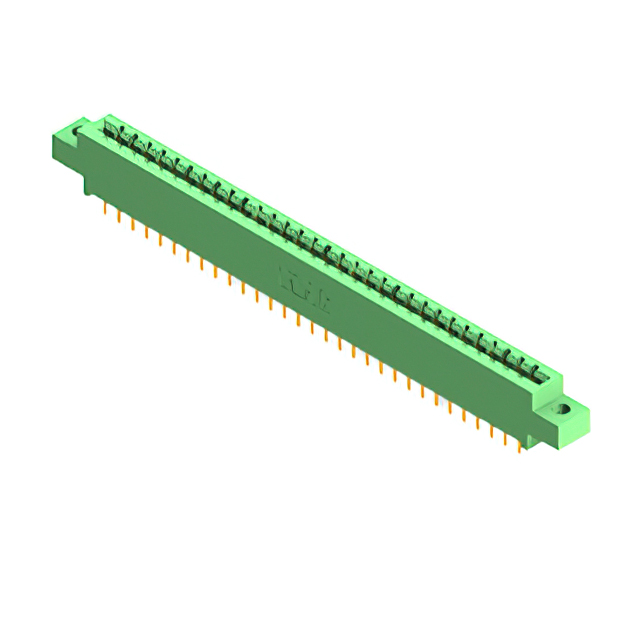

CONN EDGE DUAL FMALE 62POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Positions | Read Out | Number of Positions/Bay/Row [custom] | Pitch | Pitch | Gender | Card Thickness [Max] | Card Thickness [Min] | Color | Number of Rows [custom] | Contact Finish | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.156 " | 3.96 mm | Through Hole | Wire Wrap | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.128 " | 3.25 mm | Through Hole | Wire Wrap | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | Flush Mount Top Opening Unthreaded | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.116 " | 2.95 mm | Board Edge Straddle Mount | Solder | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | Floating Bobbin Flush Mount | Card Extender |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.156 " | 3.96 mm | Right Angle Through Hole | Solder | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | Right Angle Through Hole | Solder | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.156 " | 3.96 mm | Board Edge Straddle Mount | Solder | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | Flush Mount Top Opening Unthreaded | Card Extender |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.156 " | 3.96 mm | Board Edge Straddle Mount | Solder | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | Flush Mount Top Opening Unthreaded | Card Extender |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.116 " | 2.95 mm | Through Hole | Solder | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | Floating Bobbin Flush Mount | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.116 " | 2.95 mm | Through Hole | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | Floating Bobbin Top Mount Opening | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Cantilever | Copper Alloy | 0.116 " | 2.95 mm | Through Hole | Wire Wrap | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | 62 | Dual | 31 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 2 | Gold | Floating Bobbin Flush Mount |
