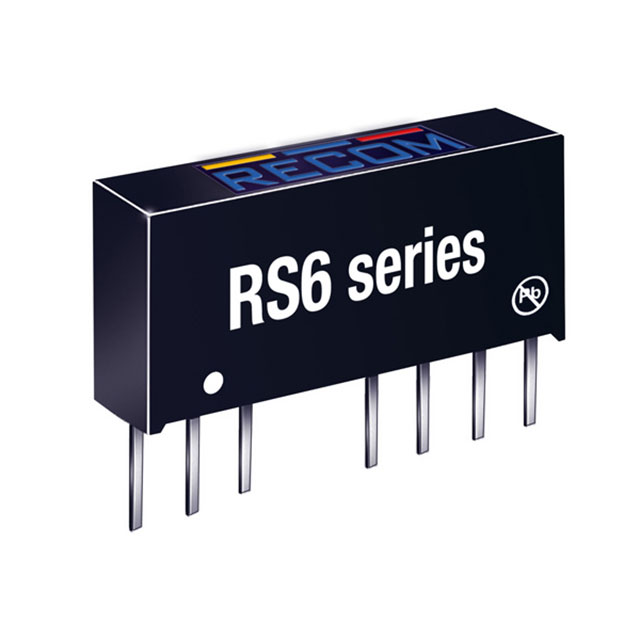

RS6-2405 Series
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1.2A SIP8
Manufacturer: RECOM Power
Catalog
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1.2A SIP8
Beta
⌘K
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1.2A SIP8
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1.2A SIP8
Isolated DC/DC Converters - Through Hole 6W 18-36Vin 5Vout 1.2A SIP8
| Part | Current - Output (Max) [Max] | Applications | Type | Package / Case | Package / Case | Voltage - Output 2 | Power (Watts) | Number of Outputs | Voltage - Input (Min) [Min] | Efficiency | Features | Voltage - Isolation | Voltage - Input (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RECOM Power | 600 mA | ITE (Commercial) | Isolated Module | 8-SIP Module | 7 Leads | -5 V | 6 W | 2 | 18 V | 85 % | OCP Remote On/Off SCP UVLO | 1.6 kV | 36 V | 21.8 mm | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | 5 V | -40 °C | 75 ░C | Through Hole | Active Low Enable |
 RECOM Power | 500 mA | ITE (Commercial) | Isolated Module | 8-SIP Module | 6 Leads | 6 W | 1 | 9 V | 87 % | OCP Remote On/Off SCP UVLO | 1.6 kV | 18 V | 21.8 mm | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | 12 V | -40 °C | 75 ░C | Through Hole | Active Low Enable | |
 RECOM Power | 1.2 A | ITE (Commercial) | Isolated Module | 8-SIP Module | 6 Leads | 6 W | 1 | 9 V | 86 % | OCP Remote On/Off SCP UVLO | 1.6 kV | 18 V | 21.8 mm | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | 5 V | -40 °C | 75 ░C | Through Hole | Active Low Enable | |
RECOM Power | 400 mA | ITE (Commercial) | Isolated Module | 8-SIP Module | 6 Leads | 6 W | 1 | 36 V | 88 % | OCP Remote On/Off SCP UVLO | 1.6 kV | 75 V | 21.8 mm | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | 15 V | -40 °C | 75 ░C | Through Hole | Active Low Enable | |
RECOM Power | 1.2 A | ITE (Commercial) | Isolated Module | 8-SIP Module | 6 Leads | 6 W | 1 | 36 V | 87 % | OCP Remote On/Off SCP UVLO | 1.6 kV | 75 V | 21.8 mm | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | 5 V | -40 °C | 75 ░C | Through Hole | Active Low Enable | |
 RECOM Power | ITE (Commercial) | Isolated Module | 8-SIP Module | 6 Leads | -15 V | 6 W | 2 | 36 V | 88 % | OCP Remote On/Off SCP UVLO | 1.6 kV | 75 V | 21.8 mm | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | 15 V | -40 °C | 75 ░C | Through Hole | Active Low Enable | |
RECOM Power | 400 mA | ITE (Commercial) | Isolated Module | 8-SIP Module | 6 Leads | 6 W | 1 | 4.5 V | 86 % | OCP Remote On/Off SCP UVLO | 1.6 kV | 9 V | 21.8 mm | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | 15 V | -40 °C | 75 ░C | Through Hole | Active Low Enable | |
RECOM Power | ITE (Commercial) | Isolated Module | 8-SIP Module | 6 Leads | -15 V | 6 W | 2 | 9 V | 87 % | OCP Remote On/Off SCP UVLO | 1.6 kV | 18 V | 21.8 mm | 0.36 " | 9.2 mm | 0.86 in | 0.44 " | 11.1 mm | 15 V | -40 °C | 75 ░C | Through Hole | Active Low Enable |
