M2023B2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Actuator Material | Termination Style | Switch Function | Current Rating (Amps) | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Features | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Bushing Thread | Mounting Type | Illumination | Voltage Rating - DC | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

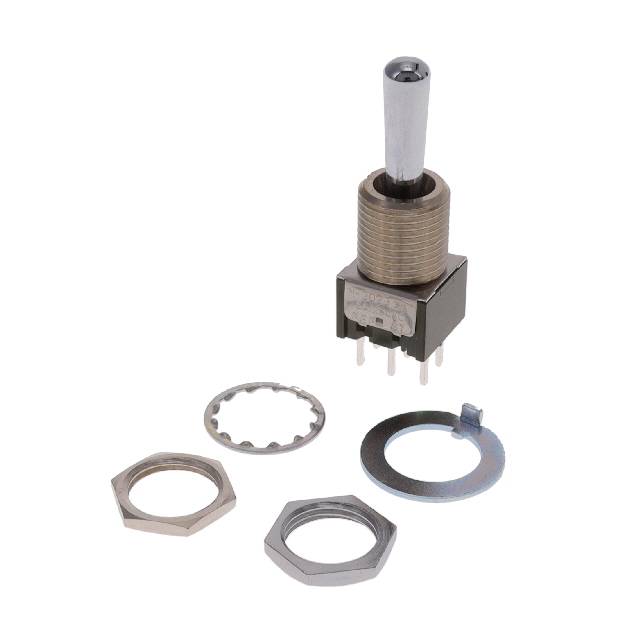

 NKK Switches | 25000 Steps | Brass Chrome Plated | PC Pin | On-Off-On | 3 A 6 A | 17.5 mm | 85 °C | -30 ░C | DPDT | Epoxy Sealed Terminals | 12.5 mm | 125 V | M12 x 1 | Panel Mount | Non-Illuminated | 30 V | Standard Round |

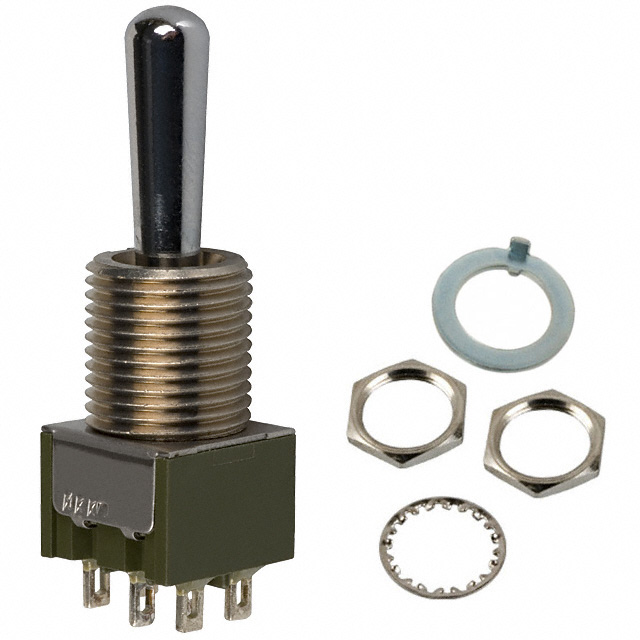

 NKK Switches | 25000 Steps | Brass Chrome Plated | Solder Lug | On-Off-On | 3 A 6 A | 17.5 mm | 85 °C | -30 ░C | DPDT | Black Cap | 12.5 mm | 125 V | M12 x 1 | Panel Mount | Non-Illuminated | 30 V | Standard Round with Cap |
 NKK Switches | 25000 Steps | Brass Chrome Plated | Solder Lug | On-Off-On | 3 A 6 A | 17.5 mm | 85 °C | -30 ░C | DPDT | Epoxy Sealed Terminals | 12.5 mm | 125 V | M12 x 1 | Panel Mount | Non-Illuminated | 30 V | Standard Round |
