RF Connectors / Coaxial Connectors SEE 9631-7179-10
RF Connectors / Coaxial Connectors SEE 9631-7179-10
| Part | Voltage Rating | Body Finish | Impedance | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Material | Dielectric Material | Shield Termination | Frequency - Max [Max] | Contact Termination | Connector Type | Center Contact Plating | Mounting Type | Housing Color | Connector Style | Number of Ports | Fastening Type | Mating Cycles | Cable Group | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

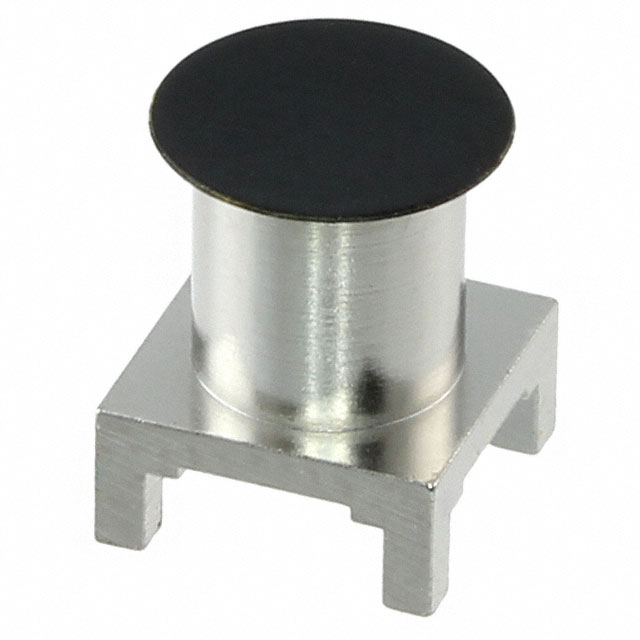

Molex | 335 V | Nickel | 50 Ohms | 155 °C | -55 °C | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Solder | Female Socket Jack | Gold | Through Hole | Silver | MCX | 1 | Snap-On | 500 | ||
Molex | |||||||||||||||||||||
Molex | |||||||||||||||||||||
Molex | 335 V | Nickel | 50 Ohms | 155 °C | -55 °C | Zinc Alloy | Brass | Polytetrafluoroethylene (PTFE) | Crimp | 6000 MHz | Crimp | Male Pin Plug | Gold | Free Hanging (In-Line) | Silver | MCX | 1 | Snap-On | 500 | 188 316 RG-174 | 1 Connector 1 Contact 1 Ferrule |
Molex | |||||||||||||||||||||
Molex | 335 V | Nickel | 50 Ohms | 155 °C | -55 °C | Zinc Alloy | Brass | Polytetrafluoroethylene (PTFE) | Crimp | 6000 MHz | Solder | Male Pin Plug | Gold | Free Hanging (In-Line) | Silver | MCX | 1 | Snap-On | 500 | 188 316 RG-174 | 1 Connector 1 Contact 1 Ferrule |
 Molex | 335 V | Nickel | 50 Ohms | 155 °C | -55 °C | Zinc Alloy | Brass | Polytetrafluoroethylene (PTFE) | Crimp | 6000 MHz | Solder | Male Pin Plug | Gold | Free Hanging (In-Line) Right Angle | Silver | MCX | 1 | Snap-On | 500 | 188 316 RG-174 | 1 Connector 1 End Cap 1 Ferrule |
 Molex | 335 V | Nickel | 50 Ohms | 155 °C | -55 °C | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Solder | Female Socket Jack | Gold | Through Hole | Silver | MCX | 1 | Snap-On | 500 |
