9844 Series
Manufacturer: Belden Inc.
Beta
⌘K

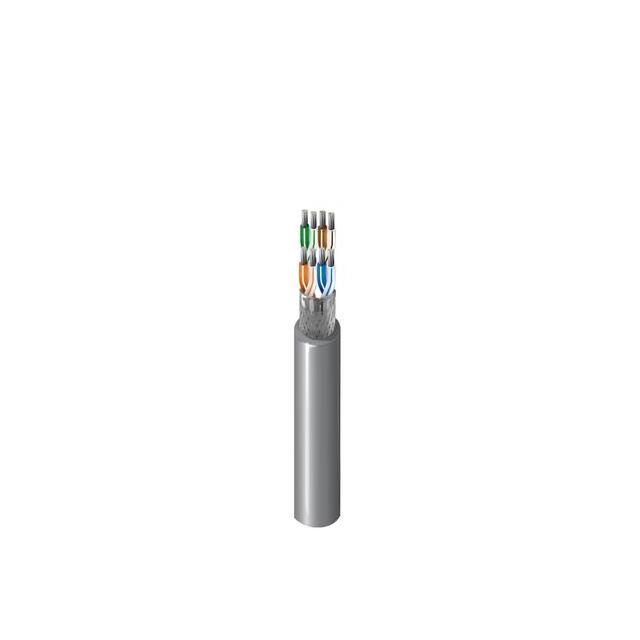

MULTI-PAIR 8CON 24AWG CHROM
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Material | Jacket Color | Length | Length | Number of Conductors | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Jacket (Insulation) Material | Voltage | Features | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 0.035 in | 0.889 mm | Multi-Pair | Copper Tinned | Chrome | 152.4 m | 500 ft | 8 | Computer | 7 | 32 AWG | 80 °C | -30 ░C | Polyethylene (PE) | Poly-Vinyl Chloride (PVC) | 300 VDC | Drain Wire | Braid Foil | 9.91 mm | 0.39 in | UL Style 2919 | 24 AWG |
