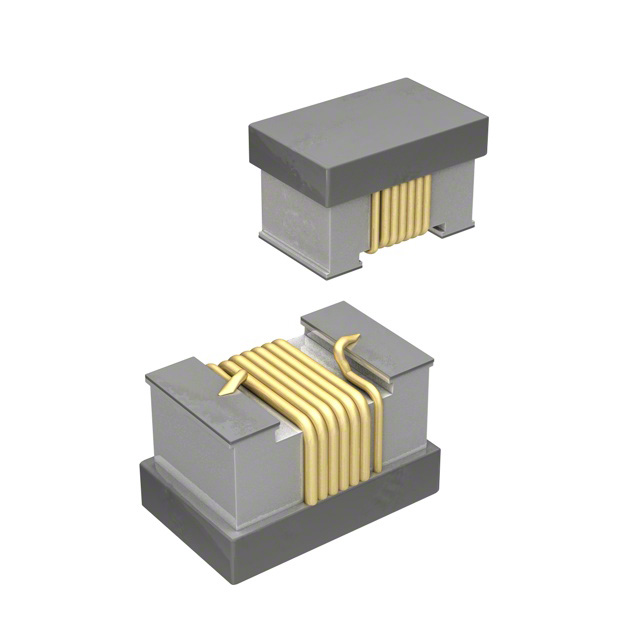

CW160808 Series

Catalog

MAGNETICS-HIGH Q CHIP INDUCTOR /TAPE & REEL - 7" REEL

Part	Supplier Device Package	Q @ Freq	Type	Shielding	Frequency - Self Resonant	DC Resistance (DCR)	Current Rating (Amps)	Mounting Type	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Tolerance	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Material - Core	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CW160808-82NG	0603 (1608 Metric)	34 250 MHz	Drum Core Wirewound	Unshielded	1.7 GHz	540 mOhm	400 mA	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	150 MHz	2 %	82 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina
Bourns Inc. CW160808-12NG	0603 (1608 Metric)		Drum Core Wirewound	Unshielded	4 GHz	130 mOhm	700 mA	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	250 MHz	2 %	12 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina	250 MHz	30
Bourns Inc. CW160808-68NG	0603 (1608 Metric)		Drum Core Wirewound	Unshielded	1.7 GHz	340 mOhm	600 mA	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	200 MHz	2 %	68 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina	250 MHz		35
Bourns Inc. CW160808-R10J	0603 (1608 Metric)	34 250 MHz	Drum Core Wirewound	Unshielded	1.4 GHz	710 mOhm	400 mA	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	150 MHz	5 %	100 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina
Bourns Inc. CW160808-47NJ	0603 (1608 Metric)		Drum Core Wirewound	Unshielded	2.1 GHz	280 mOhm	600 mA	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	200 MHz	5 %	47 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina	250 MHz		35
Bourns Inc. CW160808-R22J	0603 (1608 Metric)	25 100 MHz	Drum Core Wirewound	Unshielded	990 MHz	1.9 Ohm	0.2 A	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	100 MHz	5 %	220 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina
Bourns Inc. CW160808-39NG	0603 (1608 Metric)		Drum Core Wirewound	Unshielded	2.2 GHz	250 mOhm	600 mA	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	250 MHz	2 %	39 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina	250 MHz		35
Bourns Inc. CW160808-3N9G		16 250 MHz	Drum Core Wirewound	Unshielded	6 GHz	80 mOhm	700 mA	Surface Mount		Nonstandard	125 °C	-40 C	1.2 mm	0.047 "	250 MHz	2 %	3.9 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina
Bourns Inc. CW160808-10NJ	0603 (1608 Metric)		Drum Core Wirewound	Unshielded	4.8 GHz	130 mOhm	700 mA	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	250 MHz	5 %	10 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina	250 MHz	30
Bourns Inc. CW160808-R10G	0603 (1608 Metric)	34 250 MHz	Drum Core Wirewound	Unshielded	1.4 GHz	710 mOhm	400 mA	Surface Mount	1608 Metric	0603	125 °C	-40 C	1.2 mm	0.047 "	150 MHz	2 %	100 nH	0.065 in	0.041 in	1.05 mm	1.65 mm	Alumina
