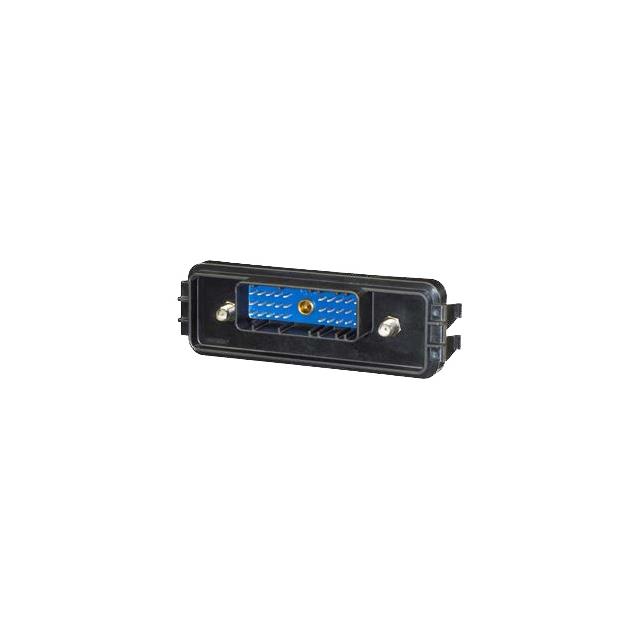

581 06 30 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
CONN HEADER R/A 31POS
| Part | Applications | Connector Type | Number of Rows [custom] | Contact Type | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Contact Material | Ingress Protection | Termination | Fastening Type | Number of Positions [custom] | Number of Positions [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Current Rating (Amps) | Insulation Material | Number of Positions Loaded | Contact Finish - Post | Style | Mounting Type | Contact Finish - Mating | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Automotive | Header | 3 | Male Pin | Shrouded - 4 Wall | 0.126 " | 3.2 mm | Circular | Brass | IP67/IP69K | Solder | Latch Lock | 30 | 1 | 85 °C | -40 C | Ferrite Filter | 10 A | Glass Filled Polymer | All | Tin | Board to Cable/Wire | Panel Mount Right Angle Through Hole | Gold | Black | |
Cinch Connectivity Solutions | Automotive | Header | 3 | Male Pin | Shrouded - 4 Wall | 0.126 " | 3.2 mm | Circular | Brass | IP67/IP69K | Solder | Latch Lock | 30 | 1 | 85 °C | -40 C | Ferrite Filter | 10 A | Glass Filled Polymer | All | Tin | Board to Cable/Wire | Panel Mount Right Angle Through Hole | Gold | Black | |
 Cinch Connectivity Solutions | Automotive | Header | 3 | Male Pin | Shrouded - 4 Wall | 0.126 " | 3.2 mm | Circular | Brass | IP67/IP69K | Solder | Latch Lock | 85 °C | -40 C | Ferrite Filter | 10 A | Glass Filled Polymer | All | Tin | Board to Cable/Wire | Panel Mount Right Angle Through Hole | Gold | Black | 32 | ||
 Cinch Connectivity Solutions | Automotive | Header | 3 | Male Pin | Shrouded - 4 Wall | 0.126 " | 3.2 mm | Circular | Brass | IP67/IP69K | Solder | Latch Lock | 85 °C | -40 C | Ferrite Filter | 10 A | Glass Filled Polymer | All | Tin | Board to Cable/Wire | Panel Mount Right Angle Through Hole | Gold | Black | 32 | ||
 Cinch Connectivity Solutions | Automotive | Header | 3 | Male Pin | Shrouded - 4 Wall | 0.126 " | 3.2 mm | Circular | Brass | IP67/IP69K | Solder | Latch Lock | 85 °C | -40 C | 10 A | Glass Filled Polymer | All | Tin | Board to Cable/Wire | Panel Mount Right Angle Through Hole | Gold | Black | 32 | |||
Cinch Connectivity Solutions | Automotive | Header | 3 | Male Pin | Shrouded - 4 Wall | 0.126 " | 3.2 mm | Circular | Brass | IP67/IP69K | Solder | Latch Lock | 85 °C | -40 C | 10 A | Glass Filled Polymer | All | Tin | Board to Cable/Wire | Panel Mount Right Angle Through Hole | Gold | Black | 32 | |||
Cinch Connectivity Solutions | Automotive | Header | 3 | Male Pin | Shrouded - 4 Wall | 0.126 " | 3.2 mm | Circular | Brass | IP67/IP69K | Solder | Latch Lock | 30 | 1 | 85 °C | -40 C | 10 A | Glass Filled Polymer | All | Tin | Board to Cable/Wire | Panel Mount Right Angle Through Hole | Gold | Black |
