09330062 Series

Manufacturer: HARTING

Catalog

HAN 6 ES-M ROHS COMPLIANT: YES

Part	Contact Finish	Housing Material	Material Flammability Rating	Color	Contact Material	Number of Positions	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Current Rating (Amps)	Size	Connector Type	Termination Style	Number of Positions	Contact Type
HARTING 09330062616	Silver	Polycarbonate (PC)	UL94 V-0	Gray	Copper Alloy	6+Ground	Male	125 °C	-40 C	600 V	16 A	6B	Insert	Push In

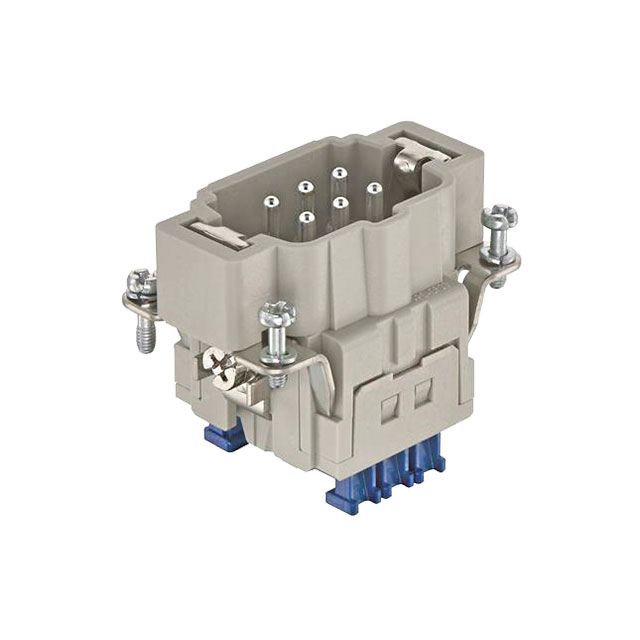

HARTING 09330062648	Silver	Polycarbonate (PC)	UL94 V-0	Gray	Copper Alloy	6+Ground	Male	125 °C	-40 C	500 V	16 A	6B	Insert	Tension Clamp

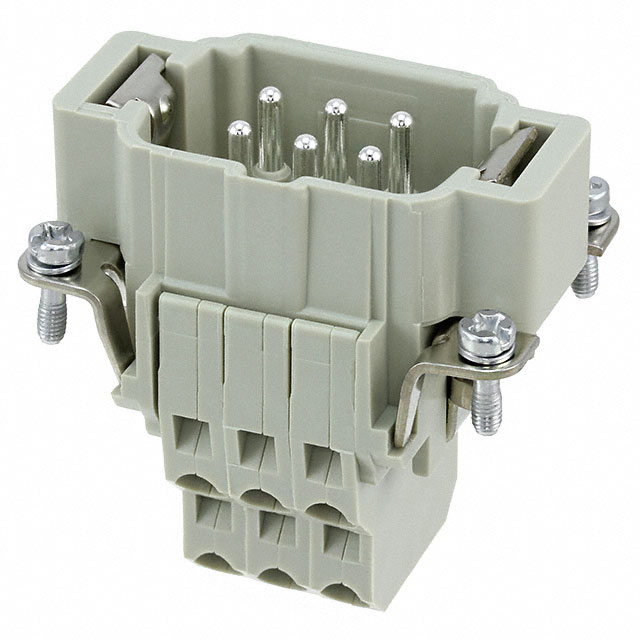

HARTING 09330062672	Silver	Polycarbonate (PC)	UL94 V-0	Gray	Copper Alloy	6+Ground	Male	125 °C	-40 C	600 V	16 A	6B	Insert	Push In

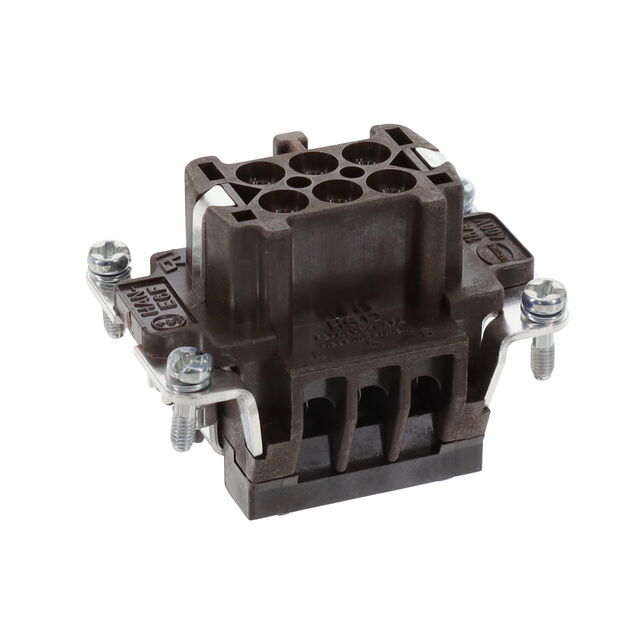

HARTING 09330062752							Female						Insert without Contacts	Crimp	6
HARTING 09330062602		Polycarbonate (PC)	UL94 V-0	Gray		6+Ground	Male	125 °C	-40 C	600 V	16 A	6B	Insert without Contacts	Crimp		Han®

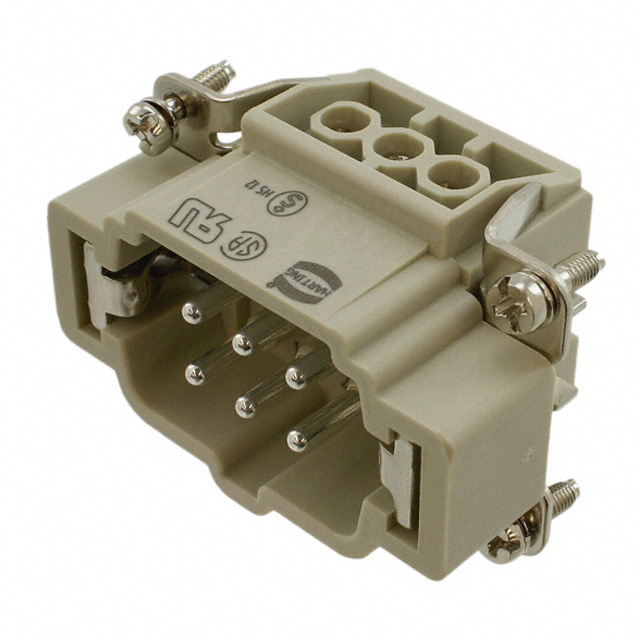

HARTING 09330062601	Silver	Polycarbonate (PC)	UL94 V-0	Gray	Copper Alloy	6+Ground	Male	125 °C	-40 C	600 V	16 A	6B	Insert	Screw
HARTING 09330062772	Silver	Polycarbonate (PC)	UL94 V-0	Gray	Copper Alloy	6+Ground	Female	125 °C	-40 C	600 V	16 A	6B	Insert	Push In
