WP7A-S03 Series

Catalog

CONN PLUG 34POS SMD GOLD

Part	Contact Finish	Connector Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Positions [custom]	Features	Height Above Board	Height Above Board	Number of Positions
JAE Electronics WP7B-P034VA1-R6000	Gold	Plug Outer Shroud Contacts	0.4 mm	0.016 in	0.1 Ám	4 Áin	2	0.7 mm	0.02 in	0.5 mm	Surface Mount	34	Solder Retention

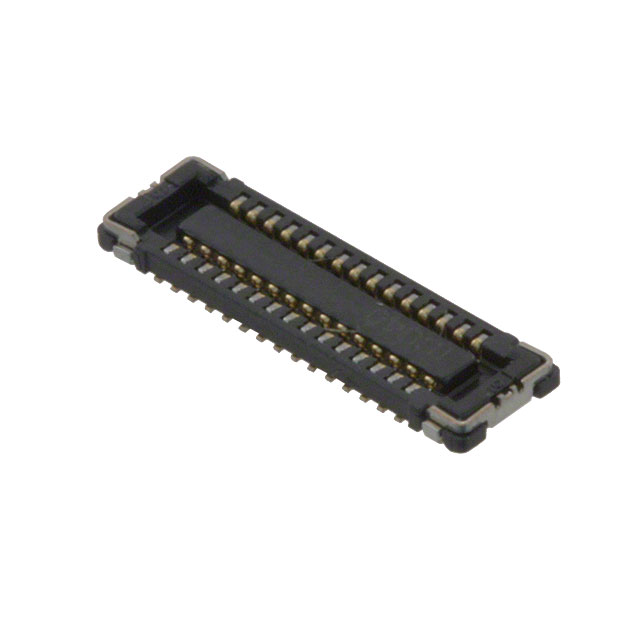

JAE Electronics WP7A-S030VA1-R8000	Gold	Receptacle Center Strip Contacts	0.4 mm	0.016 in	0.1 Ám	4 Áin	2	0.7 mm			Surface Mount		Solder Retention	0.028 in	0.71 mm	30
JAE Electronics WP7A-S030VA1-R500	Gold	Receptacle Center Strip Contacts	0.4 mm	0.016 in	0.1 Ám	4 Áin	2	0.7 mm			Surface Mount		Solder Retention	0.028 in	0.71 mm	30

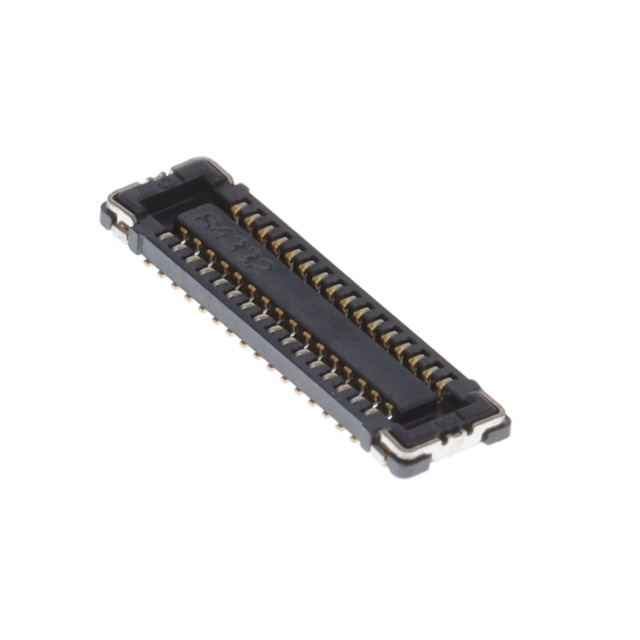

JAE Electronics WP7A-S032VA1-R8000	Gold	Receptacle Center Strip Contacts	0.4 mm	0.016 in	0.1 Ám	4 Áin	2	0.7 mm			Surface Mount		Solder Retention	0.028 in	0.71 mm
JAE Electronics WP7A-S032VA1-R500	Gold	Receptacle Center Strip Contacts	0.4 mm	0.016 in	0.1 Ám	4 Áin	2	0.7 mm			Surface Mount		Solder Retention	0.028 in	0.71 mm

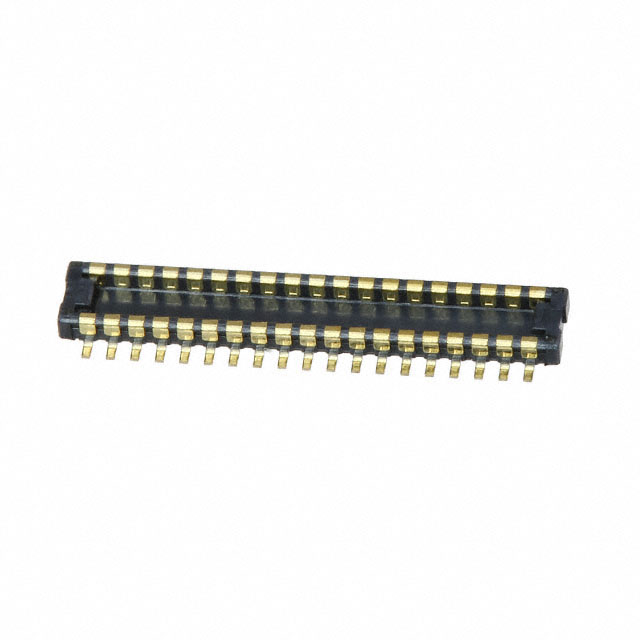

JAE Electronics WP7B-P034VA1-R500	Gold	Plug Outer Shroud Contacts	0.4 mm	0.016 in	0.1 Ám	4 Áin	2	0.7 mm	0.02 in	0.5 mm	Surface Mount	34	Solder Retention
JAE Electronics WP7A-S032VA1-R6000	Gold	Receptacle Center Strip Contacts	0.4 mm	0.016 in	0.1 Ám	4 Áin	2	0.7 mm			Surface Mount		Solder Retention	0.028 in	0.71 mm
