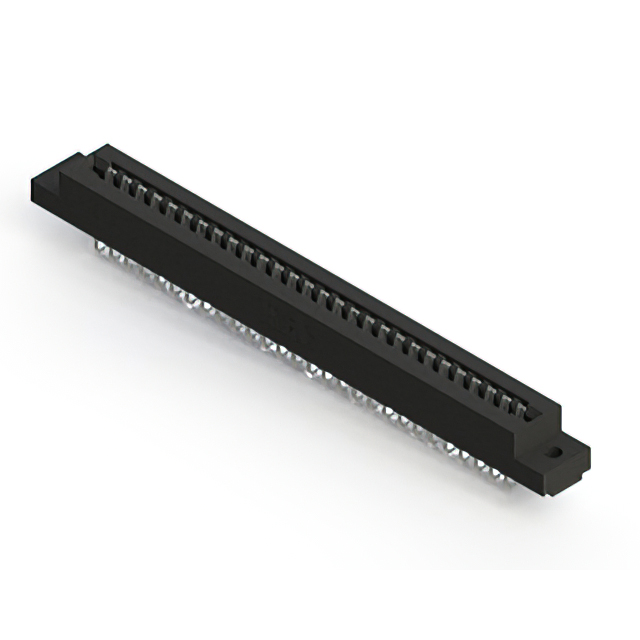

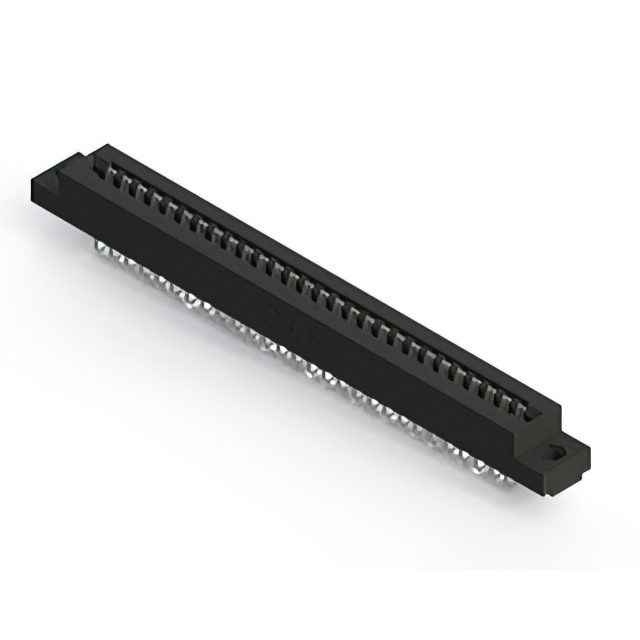

857-056 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 56POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Mounting Type | Features | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Number of Positions/Bay/Row | Contact Material | Color | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Number of Rows [custom] | Contact Type | Card Type | Read Out | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Board Edge Straddle Mount | Card Extender | Solder | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Tin | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Solder | Flush Mount M3 Threaded Insert Top Opening | Gold | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Right Angle Through Hole | Solder | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | Tin | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Wire Wrap | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Solder | Flush Mount M3 Threaded Insert Top Opening | Gold | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Wire Wrap | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Gold | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Solder Eyelet(s) | Floating Bobbin Flush Mount | 2.95 mm | 0.116 " | Gold | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Right Angle Through Hole | Solder | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Tin | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Solder | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Tin | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Solder Eyelet(s) | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | Tin | 28 | Copper Alloy | Black | Female | 125 °C | -40 C | 3.96 mm | 0.156 in | 2 | Semi Bellows | Non Specified - Dual Edge | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 56 |
