MAX908 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC COMPARATOR 4 GEN PUR 14SOIC

Part	Current - Quiescent (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Elements	Propagation Delay (Max) [Max]	Output Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Mounting Type	Voltage - Input Offset (Max)	CMRR, PSRR (Typ)	Current - Input Bias (Max) [Max]	Package / Case [x]	Package / Case [y]	Package / Case
Analog Devices Inc./Maxim Integrated MAX908CSD-T	1 mA	70 °C	0 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Surface Mount	2 mV	86.02 dB 86.02 dB	0.3 µA	0.154 in	3.9 mm	14-SOIC

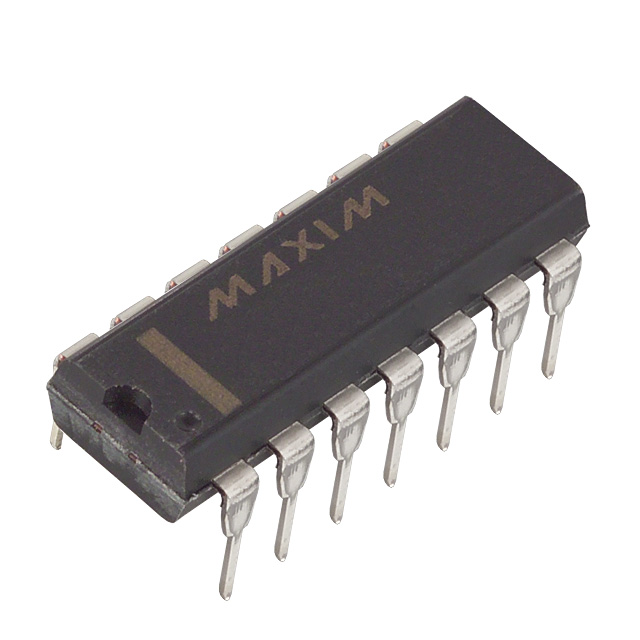

Analog Devices Inc./Maxim Integrated MAX908CPD	1 mA	70 °C	0 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Through Hole	2 mV	86.02 dB 86.02 dB	0.3 µA	0.3 "	7.62 mm	14-DIP
Analog Devices Inc./Maxim Integrated MAX908EPD+	1 mA	85 °C	-40 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Through Hole	2 mV	86.02 dB 86.02 dB	0.3 µA	0.3 "	7.62 mm	14-DIP
Analog Devices Inc./Maxim Integrated MAX908CSD+	1 mA	70 °C	0 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Surface Mount	2 mV	86.02 dB 86.02 dB	0.3 µA	0.154 in	3.9 mm	14-SOIC
Analog Devices Inc./Maxim Integrated MAX908CSD+T	1 mA	70 °C	0 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Surface Mount	2 mV	86.02 dB 86.02 dB	0.3 µA	0.154 in	3.9 mm	14-SOIC
Analog Devices Inc./Maxim Integrated MAX908CPD+	1 mA	70 °C	0 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Through Hole	2 mV	86.02 dB 86.02 dB	0.3 µA	0.3 "	7.62 mm	14-DIP
Analog Devices Inc./Maxim Integrated MAX908ESD+T	1 mA	85 °C	-40 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Surface Mount	2 mV	86.02 dB 86.02 dB	0.3 µA	0.154 in	3.9 mm	14-SOIC
Analog Devices Inc./Maxim Integrated MAX908ESD+	1 mA	85 °C	-40 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Surface Mount	2 mV	86.02 dB 86.02 dB	0.3 µA	0.154 in	3.9 mm	14-SOIC
Analog Devices Inc./Maxim Integrated MAX908EPD	1 mA	85 °C	-40 °C	General Purpose	4	50 ns	TTL	4.5 V	11 V	Through Hole	2 mV	86.02 dB 86.02 dB	0.3 µA	0.3 "	7.62 mm	14-DIP
