GE24I18 Series

Catalog

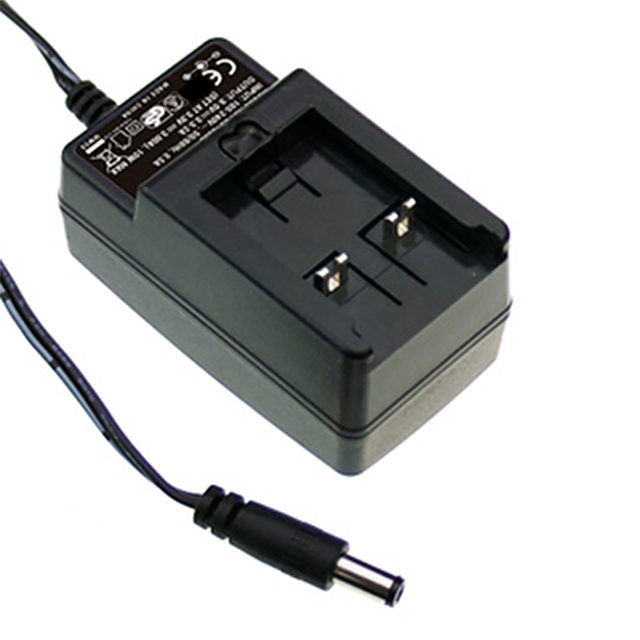

AC/DC WALL MOUNT ADAPTER 18V 24W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Output Connector [x]	Output Connector [diameter]	Output Connector	Power (Watts)	No Load Power Consumption	Input Type	Efficiency	Form	Polarization	Input Connector	Applications	Cord Length	Cord Length	Approval Agency	Voltage - Output	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
MEAN WELL USA Inc. GE24I18-P1J	264 VAC	90 VAC	50 °C	-10 °C	International	11 mm	2.1 mm 5.5 mm	Barrel Plug	24 W	75 mW	Multi-Blade (Sold Separately)	Level VI	Wall Mount	Positive Center	Multi-Blade (Sold Separately)	ITE (Commercial)	1.5 m	59 in	CCC CE cULus GS RCM	18 V	1.33 A	3.19 in	1.59 in	40.5 mm	81 mm	43 mm	1.69 "
