FI-RE31S Series

Catalog

CONN RCPT 31POS 0.02 GOLD SMD

Part	Contact Material	Applications	Insulation Material	Contact Finish - Mating	Contact Type	Connector Type	Number of Positions Loaded	Style	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Mated Stacking Heights	Number of Rows	Termination	Number of Positions [custom]	Insulation Height
JAE Electronics FI-RE31S-VF-R1300	Copper Alloy	General Purpose Medical	Plastic	Gold	Female Blade Socket	Receptacle	All	Board to Cable/Wire	Latch Holder	80 °C	-40 C	Shielded Solder Retention	Surface Mount	Tin	4.65 mm	0.183 in	UL94 V-0	0.5 mm	0.02 in	0.8 A	10.1 mm 16.1 mm	1	Solder	31

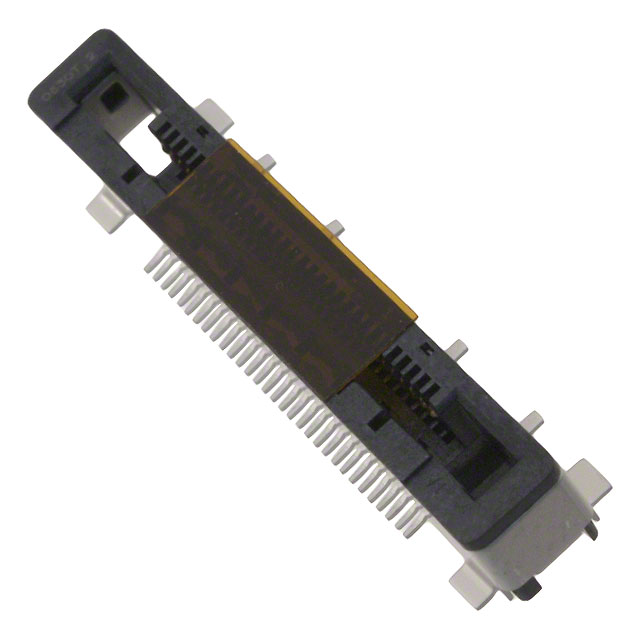

JAE Electronics FI-RE31S-VF	Copper Alloy	General Purpose Medical	Plastic	Gold	Female Blade Socket	Receptacle	All	Board to Cable/Wire	Latch Holder	80 °C	-40 C	Shielded Solder Retention	Surface Mount	Tin	4.65 mm	0.183 in	UL94 V-0	0.5 mm	0.02 in	0.8 A	10.1 mm 16.1 mm	1	Solder	31
JAE Electronics FI-RE31S-HF	Copper Alloy	General Purpose Medical	Plastic	Gold	Female Blade Socket	Receptacle	All	Board to Cable/Wire	Latch Holder	80 °C	-40 C	Shielded Solder Retention	Right Angle Surface Mount	Tin	0.148 in		UL94 V-0	0.5 mm	0.02 in	0.8 A		1	Solder	31	3.75 mm
JAE Electronics FI-RE31S-HF-R1500	Copper Alloy	General Purpose Medical	Plastic	Gold	Female Blade Socket	Receptacle	All	Board to Cable/Wire	Latch Holder	80 °C	-40 C	Shielded Solder Retention	Right Angle Surface Mount	Tin	0.148 in		UL94 V-0	0.5 mm	0.02 in	0.8 A		1	Solder	31	3.75 mm
