FR02FR16 Series
Manufacturer: NKK Switches
Beta
⌘K

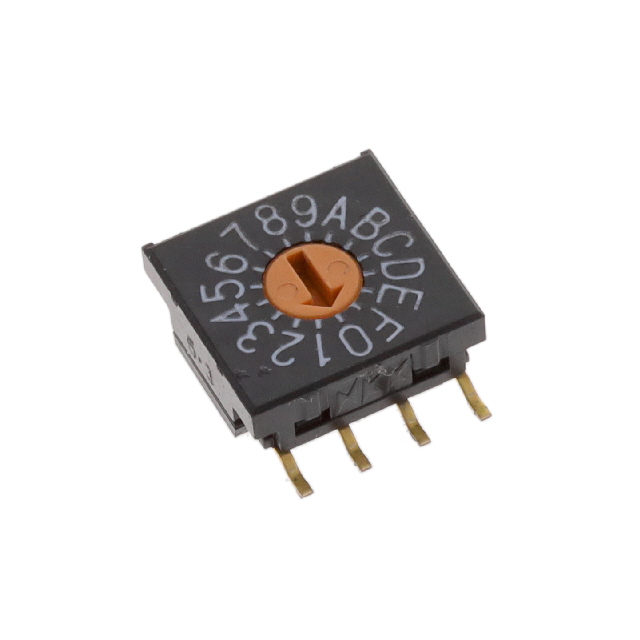

ROTARY CODED SWITCH, ULTRA THIN DIP, FR02 SERIES, SURFACE MOUNT, 16 POSITION, 5 VDC, HEXADECIMAL
| Part | Mechanical Life | Length [x] | Length [x] | Electrical Life | Body Material | Actuator Level | Mounting Type | Pitch | Pitch | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Termination Style | Contact Finish | Current Rating (Amps) | Actuator Type | Circuit | Washable | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Steps | 0.394 in | 10 mm | 10000 Cycles | Polyamide (PA) Nylon Glass Filled | Flush Recessed | Surface Mount | 2.54 mm | 0.1 " | 5 V | 0.154 in | 3.9 mm | Gull Wing | Gold | 100 mA | Rotary for Tool | Hexadecimal | 85 °C | -25 °C | 16 | Copper Alloy |
