L722A Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
JACK, 2.0MM PIN, LONG BUSHING, S
| Part | Mounting Type | Gender | Internal Switch(s) | Connector Type | Body Color | Contact Material | Voltage - Rated | Thread Size | Contact Material - Plating [custom] | Body Material | Termination | Shielding | Includes | Housing Material | Number of Positions/Contacts | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Features | Contact Material - Plating | Insulation Color | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actual Diameter | Actual Diameter | Mounting Feature | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

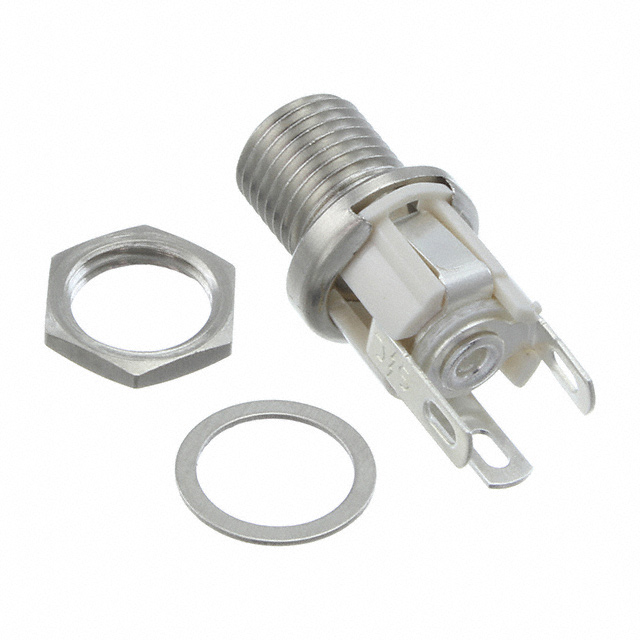

 Switchcraft Inc. | Through Hole | Male | Single Switch | Jack | Silver White | Copper Alloy | 24 VDC | 5/16"-32 | Silver | Copper Alloy | Solder Eyelet(s) | Unshielded | Connector Nut Washer | Thermoplastic | 2 Conductors 3 Conductors | ||||||||||||

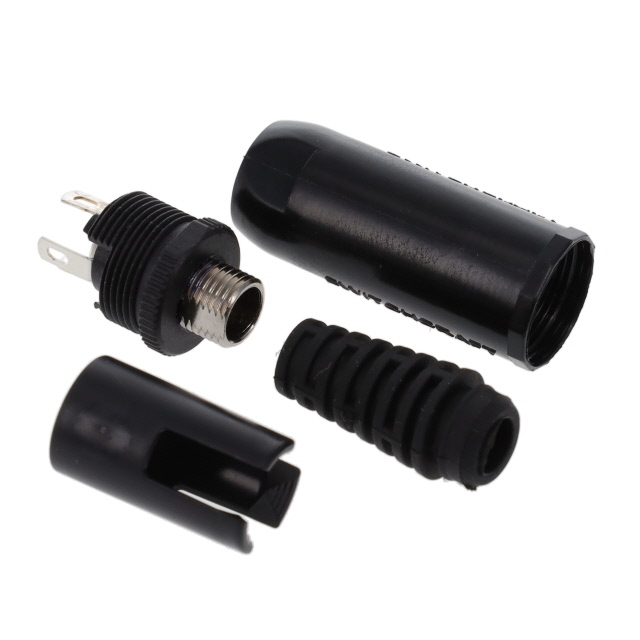

 Switchcraft Inc. | Free Hanging (In-Line) | Male | Jack | Black Silver | Copper Alloy | 24 VDC | Copper Alloy | Solder Eyelet(s) | Unshielded | Thermoplastic | 2 Conductors 3 Conductors | 2 mm | 0.079 in | Strain Relief | Tin | Black | 5 A | -40 °C | 105 ░C | 0.079 " | 2 mm | ||||||
Switchcraft Inc. | Free Hanging (In-Line) | Male | Jack | Black Silver | Copper Alloy | 24 VDC | Copper Alloy | Solder Eyelet(s) | Unshielded | Thermoplastic | 2 Conductors 3 Conductors | 2 mm | 0.079 in | Tin | Black | 5 A | -40 °C | 105 ░C | 0.079 " | 2 mm | |||||||

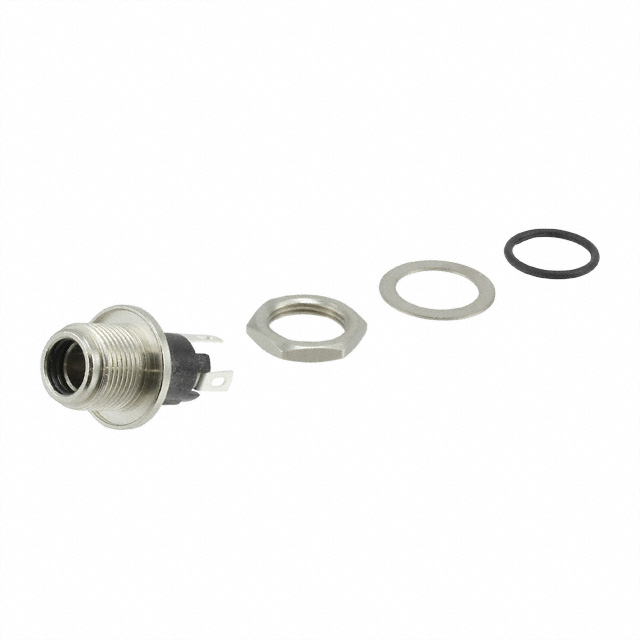

 Switchcraft Inc. | Male | Normally Closed Single Switch | Jack | Black Silver | Copper Alloy | 30 V | 7/16"-32 | Silver | Copper Alloy | Solder Eyelet(s) | Unshielded | 1 Connector 1 Nut 1 O-Ring 1 Washer | Thermoplastic | 2 Conductors 3 Conductors | 2 mm 5.5 mm | 0.079 in 0.217 " | Mounting Hardware Thread Lock | 5 A | 0.079 " | 2 mm | Bulkhead - Front Side Nut | IP68 |
