DCCM25 Series

Manufacturer: Cinch Connectivity Solutions

Catalog

CABLE ASSY D-MIC-D 25P 457.2MM

Part	2nd Connector	1st Connector	Type	Number of Positions	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Dielectric Material	Current Rating (Amps)	Mounting Type	Flange Feature	Termination	Material Flammability Rating	Shell Material, Finish	Number of Rows [custom]	Connector Style	Features	Contact Type	Connector Type	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]

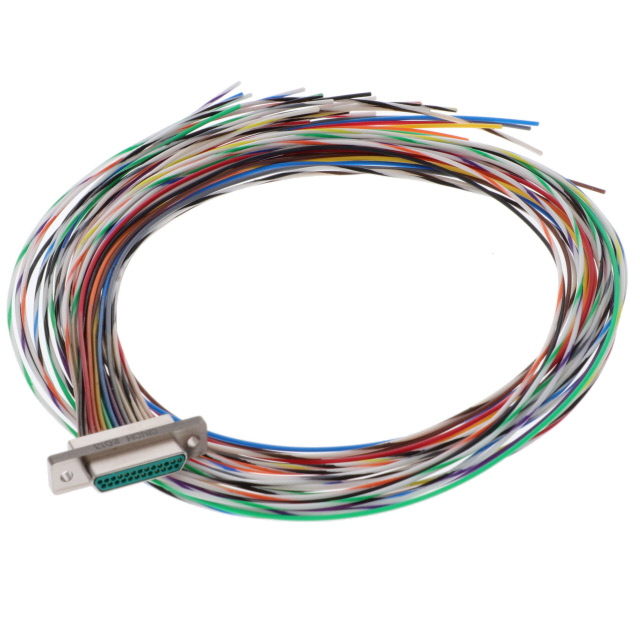

Cinch Connectivity Solutions DCCM25P6E5-18.0BN	Individual Wire Leads	Male Pins Plug	D-Type Micro-D	25	457.2 mm	1.5 ft	50 µin	1.27 µm	Gold	Individual Multiple

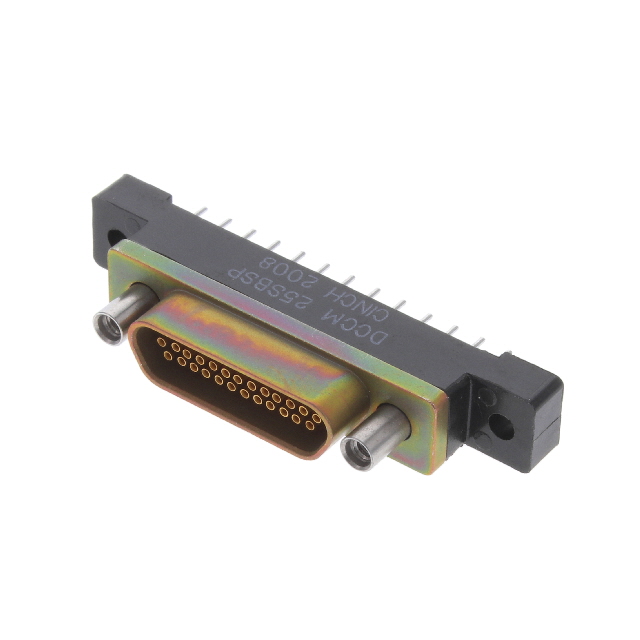

Cinch Connectivity Solutions DCCM25SBSP				25			50 µin	1.27 µm	Gold		-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	3 A	Through Hole	Female Screwlock Mating Side	Solder	UL94 V-0	Aluminum Alloy Yellow Chromate Plated Cadmium	2	D-Type Micro-D	Shielded	Signal	Receptacle Female Sockets	0.043 in	0.05 in
Cinch Connectivity Solutions DCCM25SSB				25			50 µin	1.27 µm	Gold		-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	3 A	Panel Mount			UL94 V-0	Aluminum Alloy Yellow Chromate Plated Cadmium	2	D-Type Micro-D	Shielded	Signal	Receptacle Female Sockets	0.043 in	0.05 in

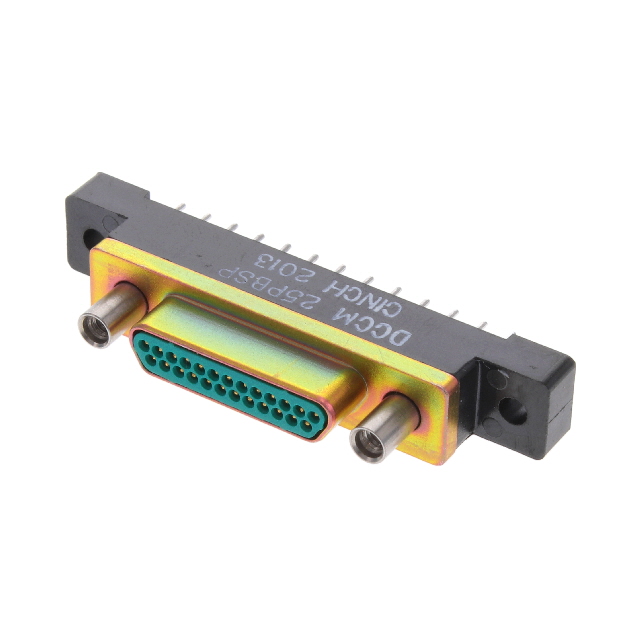

Cinch Connectivity Solutions DCCM25PBSPN				25			50 µin	1.27 µm	Gold		-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	3 A	Through Hole	Female Screwlock Mating Side	Solder	UL94 V-0	Aluminum Alloy Electroless Nickel Plated	2	D-Type Micro-D	Shielded	Signal	Plug Male Pins	0.043 in	0.05 in
Cinch Connectivity Solutions DCCM25SBSPN				25			50 µin	1.27 µm	Gold		-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	3 A	Through Hole	Female Screwlock Mating Side	Solder	UL94 V-0	Aluminum Alloy Electroless Nickel Plated	2	D-Type Micro-D	Shielded	Signal	Receptacle Female Sockets	0.043 in	0.05 in

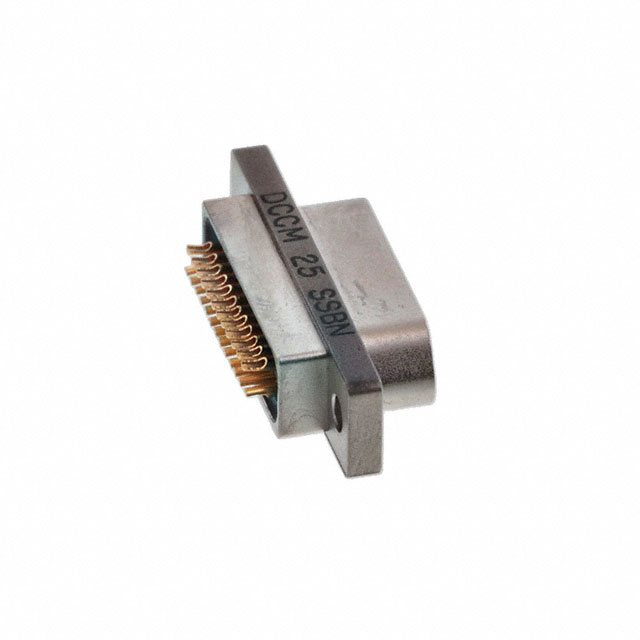

Cinch Connectivity Solutions DCCM25SSBN				25			50 µin	1.27 µm	Gold		-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	3 A	Panel Mount			UL94 V-0	Aluminum Alloy Electroless Nickel Plated	2	D-Type Micro-D	Shielded	Signal	Receptacle Female Sockets	0.043 in	0.05 in

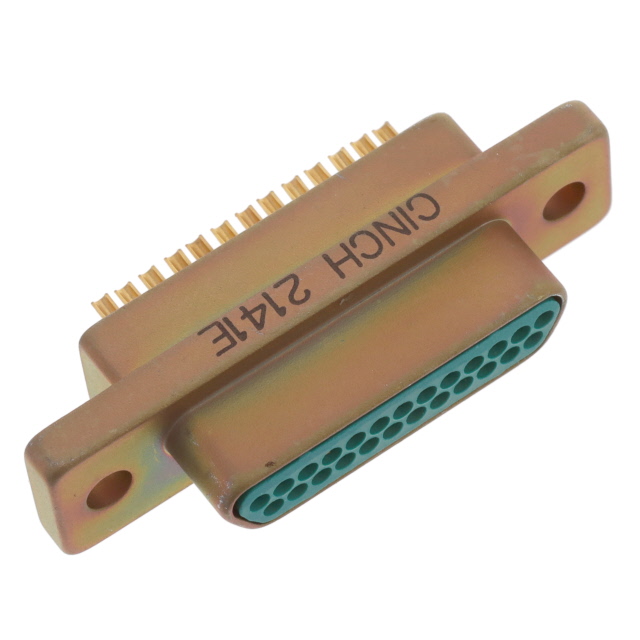

Cinch Connectivity Solutions DCCM25PSB				25			50 µin	1.27 µm	Gold		-55 C	135 °C	Copper Alloy	Diallyl Phthalate (DAP) Glass Filled	3 A	Panel Mount			UL94 V-0	Aluminum Alloy Yellow Chromate Plated Cadmium	2	D-Type Micro-D	Shielded	Signal	Plug Male Pins	0.043 in	0.05 in
