GF-1126 Series

Catalog

SWITCH SLIDE DPDT 11A 125V

Part	Actuator Material	Switch Travel	Mechanical Life	Electrical Life	Actuator Type	Termination Style	Switch Function	Contact Material	Current Rating (Amps)	Circuit	Contact Finish	Contact Timing	Voltage Rating - DC	Mounting Type	Actuator Length [x]	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]

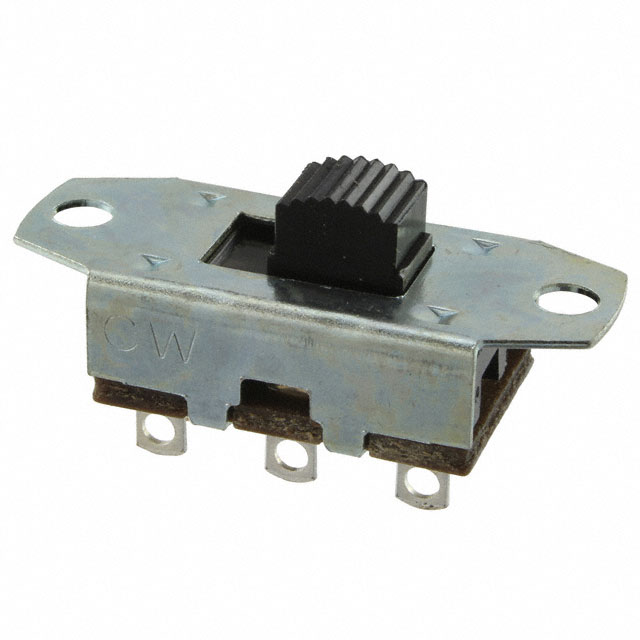

CW Industries GF-1126-0025	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Steps	6000 Cycles	Standard	Solder Lug	On-On	Copper	11 A 500 mA	DPDT	Silver	Not Specified	125 VDC	Panel Mount	4.78 mm	125 V	-10 °C	104 °C

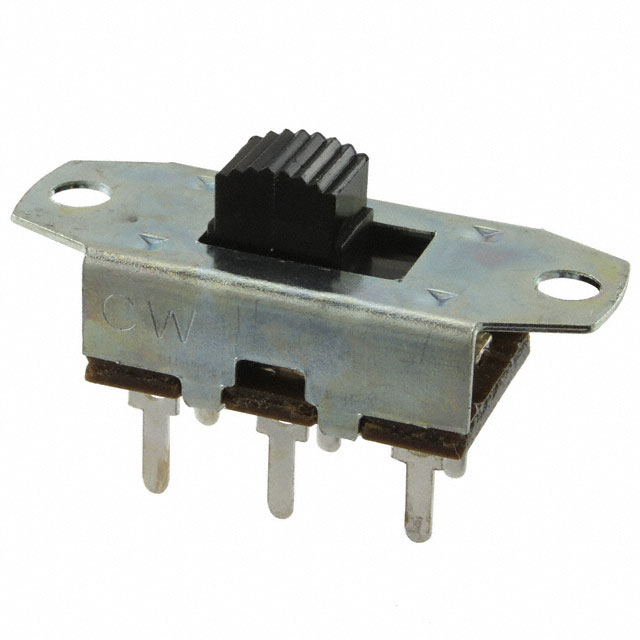

CW Industries GF-1126-0029	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Steps	6000 Cycles	Standard	PC Pin	On-On	Copper	11 A 500 mA	DPDT	Silver	Not Specified	125 VDC	Panel Mount	4.78 mm	125 V	-10 °C	104 °C

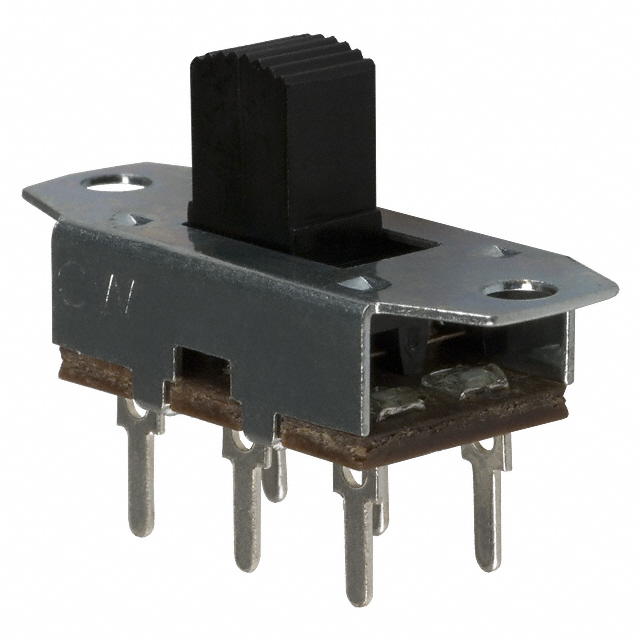

CW Industries GF-1126-1110	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Steps	6000 Cycles	Standard	PC Pin	On-On	Copper	11 A 500 mA	DPDT	Silver	Not Specified	125 VDC	Panel Mount	8.74 mm	125 V	-10 °C	104 °C

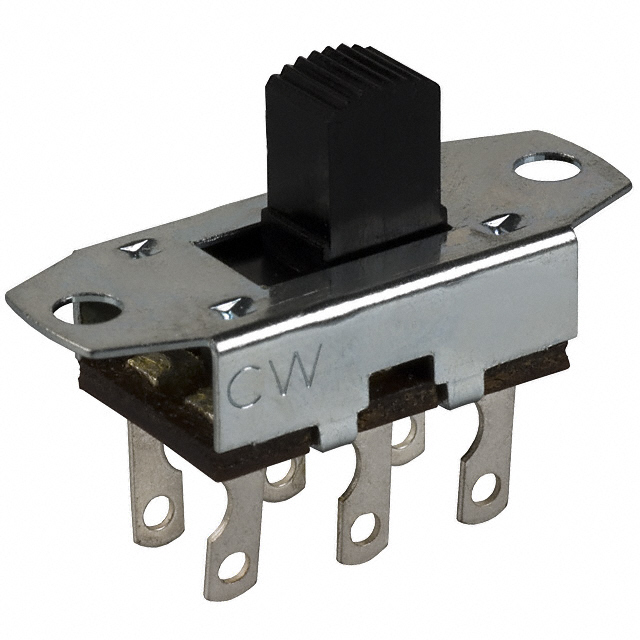

CW Industries GF-1126-0033	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Steps	6000 Cycles	Standard	Solder Lug	On-On	Copper	11 A 500 mA	DPDT	Silver	Not Specified	125 VDC	Panel Mount	8.74 mm	125 V	-10 °C	104 °C
CW Industries GF-1126-0001	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Steps	6000 Cycles	Standard	PC Pin	On-On	Copper	11 A 500 mA	DPDT	Silver	Not Specified	125 VDC	Panel Mount	8.74 mm	125 V	-10 °C	104 °C
