XA Series
Manufacturer: IDEC
Beta
⌘K

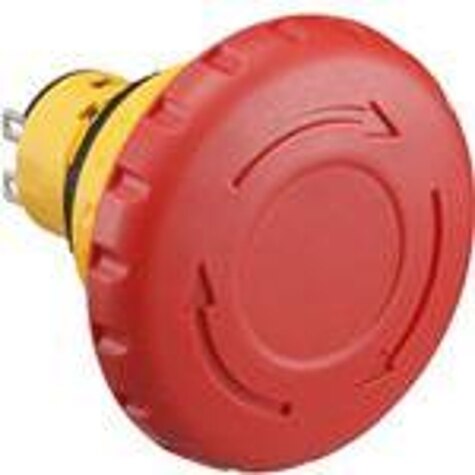

EMERGENCY STOP SWITCH, DPST-1NO, SPST-NC, PUSHLOCK RESET/PUSH-PULL, THROUGH HOLE, 5 A, 250 V
| Part | Voltage Rating - DC | Ingress Protection | Switch Function | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Circuit | Reset Operation | Termination Style | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Features | Electrical Life | Mechanical Life | Type | Actuator Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 30 V | IP65 - Dust Tight Water Resistant | Off-On On-Off | 16.2 mm | 2 A 3 A | DPST-NO/NC | Pull Twist | PC Pin | Panel Mount Front | -25 °C | 60 °C | 125 V | ||||||
 IDEC | 30 V | IP65 IP67 IP69K | On-Off | 16.2 mm | 2 A 3 A | SPST-NC | Pull Twist | Solder Lug | Panel Mount Front | -25 °C | 70 °C | 125 V | Push-Lock Turn-Reset | |||||
 IDEC | 30 V | IP65 - Dust Tight Water Resistant | Off-Mom | 16.2 mm | 2 A 3 A | SPST-NO | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | -25 °C | 60 °C | 125 V | 100000 Cycles | 100000 Cycles | Standard | Button Mushroom Round | |||
 IDEC | 30 V | IP65 - Dust Tight Water Resistant | On-Off | 16.2 mm | 2 A 3 A | SPST-NC | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | -25 °C | 60 °C | 125 V | 100000 Cycles | 100000 Cycles | Standard | Button Mushroom Round | |||
 IDEC | 30 V | IP40 | On-Off | 16.2 mm | 2 A 3 A | SPST-NC | Pull Twist | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | -25 °C | 60 °C | 125 V | ||||||
IDEC | 30 V | IP65 - Dust Tight Water Resistant | Off-On On-Off | 16.2 mm | 2 A 3 A | DPST-NO/NC | Pull Twist | Solder Lug | Panel Mount Front | -25 °C | 60 °C | 125 V | ||||||
30 V | IP65 - Dust Tight Water Resistant | Off-On On-Off | 16.2 mm | 2 A 3 A | 3PST-2NC/1NO | Pull Twist | Screw Terminal | Panel Mount Front | -25 °C | 60 °C | 125 V | |||||||
IDEC | 30 V | IP40 | On-Off | 16.2 mm | 2 A 3 A | DPST-NC | Pull Twist | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | -25 °C | 60 °C | 125 V | ||||||
IDEC | 30 V | IP40 | On-Off | 16.2 mm | 2 A 3 A | SPST-NC | Pull Twist | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | -25 °C | 60 °C | 125 V | ||||||
IDEC | 30 V | IP65 - Dust Tight Water Resistant | Off-Mom | 16.2 mm | 2 A 3 A | SPST-NO | Solder Quick Connect - 0.110" (2.8mm) | Panel Mount Front | -25 °C | 60 °C | 125 V | 100000 Cycles | 100000 Cycles | Standard | Button Mushroom Round | Yellow |
