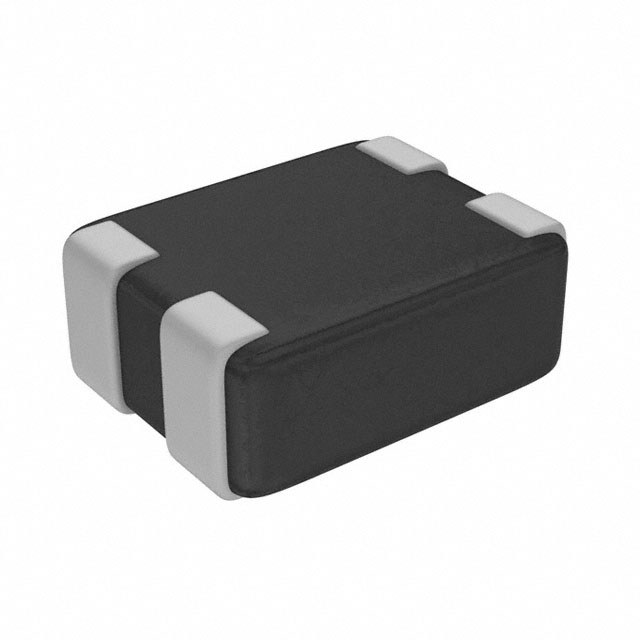

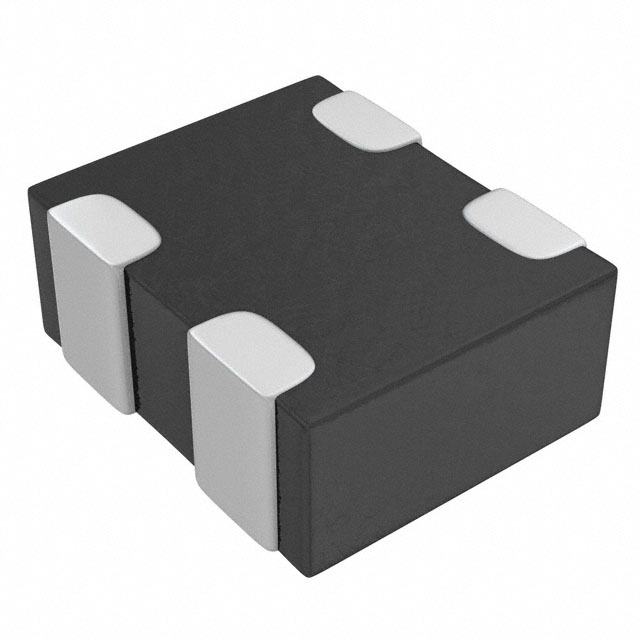

EXC-24 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CMC 100MA 2LN 90 OHM SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max]	Height (Max) [Max]	Number of Lines	Voltage Rating - DC	Current Rating (Max) [Max]	Mounting Type	DC Resistance (DCR) (Max) [Max]	Impedance @ Frequency	Package / Case	Package / Case
Panasonic Industrial Automation Sales EXC-24CG900U	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	100 mA	Surface Mount	3 Ohm	90 Ohms	0504 (1210 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-24CD900U			0.6 mm	0.024 in	2	5 V	160 mA	Surface Mount	2 Ohm	90 Ohms	0504 (1210 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-24CH900U	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	130 mA	Surface Mount	2.5 Ohm	90 Ohms	0504 (1210 Metric)
Panasonic Industrial Automation Sales EXC-24CF900U	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	130 mA	Surface Mount	2.5 Ohm	90 Ohms	0504 (1210 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-24CG240U	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	160 mA	Surface Mount	1.5 Ohm	24 Ohms	0504 (1210 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-24CE121U	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	140 mA	Surface Mount	2.2 Ohm	120 Ohms	0504 (1210 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-24CP221U	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	350 mA	Surface Mount	400 mOhm	220 Ohms	0504 (1210 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-24CE201U	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	130 mA	Surface Mount	2.7 Ohm	200 Ohms	0504 (1210 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-24CE360UP	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	200 mA	Surface Mount	1 Ohm	36 Ohms	0504 (1210 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-24CN601X	85 °C	-40 °C	0.6 mm	0.024 in	2	5 V	200 mA	Surface Mount	900 mOhm	600 Ohms	0504 (1210 Metric)	4 Lead
