HDSP Series

Catalog

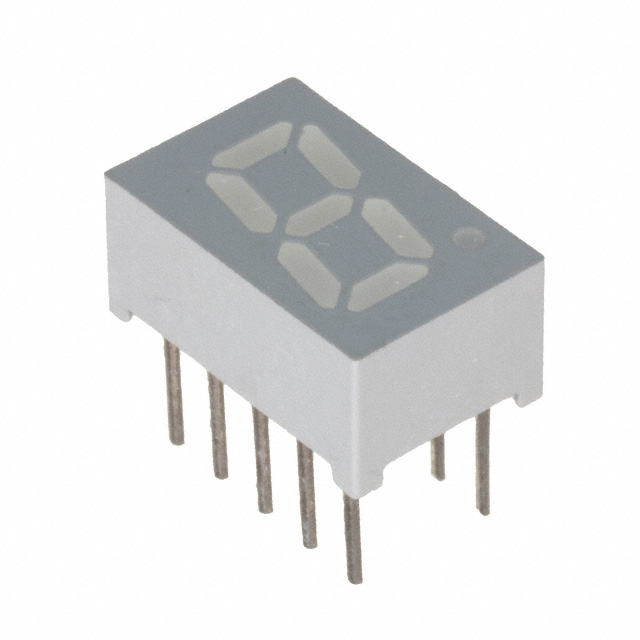

S4 PCB 8MM RED CA BLACK

Part	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Display Type	Current - Test	Color	Number of Characters [custom]	Wavelength - Peak [custom]	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Common Pin
Broadcom Limited HDSP-211C	52 mW	10-DIP	4.88 mm	0.192 "	1.97 V	7-Segment	20 mA	Red	1	640 nm	8 mm	0.32 in	5 mm	11 mm	7 mm	0.197 in	0.433 in	0.276 in	Common Anode
Broadcom Limited HDSP-213C	52 mW	10-DIP	4.88 mm	0.192 "	1.97 V	7-Segment	20 mA	Red	1	640 nm	8 mm	0.32 in	5 mm	11 mm	7 mm	0.197 in	0.433 in	0.276 in	Common Cathode
Broadcom Limited HDSP-203C	52 mW	10-DIP	4.88 mm	0.192 "	1.97 V	7-Segment	20 mA	Red	1	640 nm	8 mm	0.32 in	5 mm	11 mm	7 mm	0.197 in	0.433 in	0.276 in	Common Cathode
