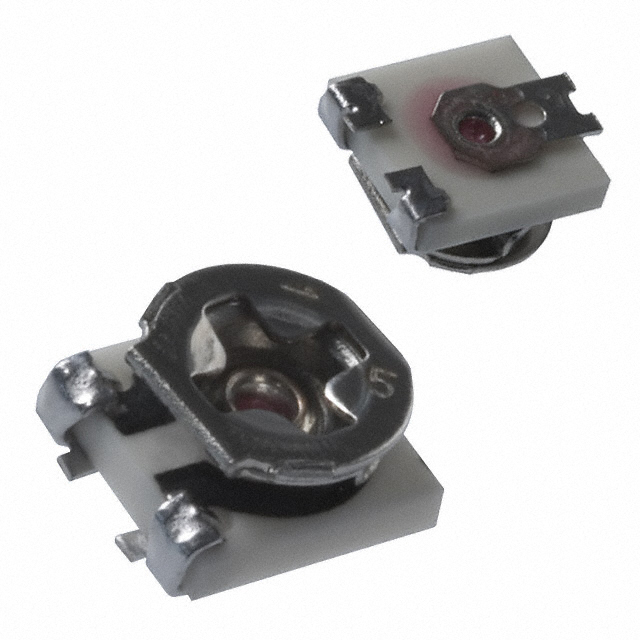

3303X Series

Catalog

TRIMMER 2K OHM 0.15W J LEAD TOP

Part	Tolerance	Resistance	Mounting Type	Termination Style	Power (Watts)	Number of Turns	Adjustment Type	Resistive Material	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient
Bourns Inc. 3303X-3-202E	25 %	2 kOhms	Surface Mount	J Lead	150 mW	1	Top Adjustment	Cermet	0.148 in 3.75 mm	0.118 in 3 mm	250 ppm/°C
Bourns Inc. 3303X-3-501E	25 %	0.5 kOhms	Surface Mount	J Lead	150 mW	1	Top Adjustment	Cermet	0.148 in 3.75 mm	0.118 in 3 mm	250 ppm/°C
Bourns Inc. 3303X-3-502E	25 %	5 kOhms	Surface Mount	J Lead	150 mW	1	Top Adjustment	Cermet	0.148 in 3.75 mm	0.118 in 3 mm	250 ppm/°C
Bourns Inc. 3303X-3-104E	25 %	100 kOhms	Surface Mount	J Lead	150 mW	1	Top Adjustment	Cermet	0.148 in 3.75 mm	0.118 in 3 mm	250 ppm/°C
Bourns Inc. 3303X-3-503E	25 %	50000 Ohms	Surface Mount	J Lead	150 mW	1	Top Adjustment	Cermet	0.148 in 3.75 mm	0.118 in 3 mm	250 ppm/°C
Bourns Inc. 3303X-3-101E	25 %	100 Ohms	Surface Mount	J Lead	150 mW	1	Top Adjustment	Cermet	0.148 in 3.75 mm	0.118 in 3 mm	250 ppm/°C
