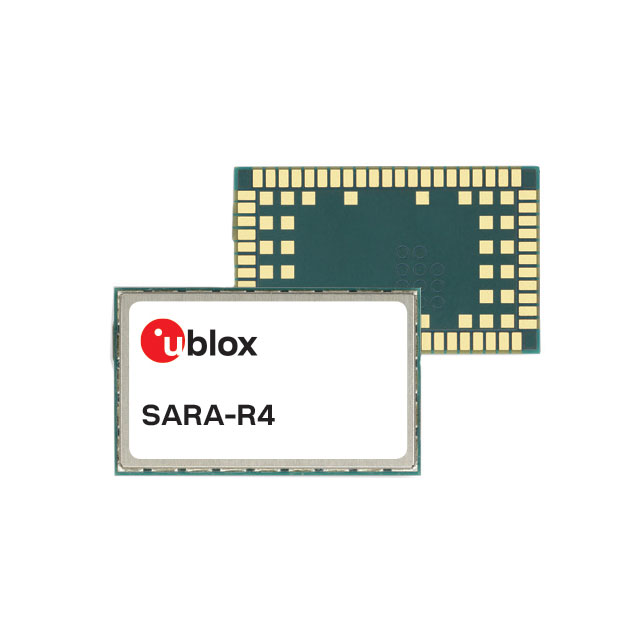

SARA-R422 Series

Manufacturer: u-blox

Catalog

RF TXRX MOD CELL CAST IOT SMD

Part	Antenna Type	Modulation	Power - Output	RF Family/Standard	Current - Receiving	Mounting Type	Package / Case	Serial Interfaces	Frequency	Frequency	Data Rate	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Current - Transmitting	Protocol	Operating Temperature (Min)	Operating Temperature (Max)	Sensitivity	Current - Receiving (Max)	Current - Receiving (Min)	Current - Transmitting (Min)	Current - Transmitting (Max)	Utilized IC / Part
u-blox SARA-R422-00B	Antenna Not Included Castellation	8PSK GMSK	33 dBm	Cellular	350 mA	Surface Mount	96-SMD Module	GPIO I2C UART USB	1.7GHz 1.8GHz 1.9GHz 2.1GHz 700MHz 750MHz 800MHz 850MHz 900MHz	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz	1.119 Mbps	3.2 V	4.5 V	350 mA	4G LTE CAT M1 NB-IoT	-40 °C	85 °C
u-blox SARA-R422S-00B	Antenna Not Included Castellation	8PSK GMSK	33 dBm	Cellular	350 mA	Surface Mount	96-SMD Module	GPIO I2C UART USB	1.7GHz 1.8GHz 1.9GHz 2.1GHz 700MHz 750MHz 800MHz 850MHz 900MHz	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz	1.119 Mbps	3.2 V	4.5 V	350 mA	4G LTE CAT M1 NB-IoT	-40 °C	85 °C
u-blox SARA-R422S-01B	Antenna Not Included	8PSK GMSK QPSK	33 dBm	Cellular Navigation		Surface Mount	96-SMD Module	I2C I2S SDIO SPI UART USB	1.7GHz 1.8GHz 1.9GHz 2.1GHz 700MHz 750MHz 800MHz 850MHz 900MHz	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz	1.119 Mbps	3.2 V	4.5 V		BeiDou CDMA Galileo GLONASS GNSS GPRS GPS GSM HSPA LTE UMTS	-40 °C	85 °C	-167 dBm	1.9 A	65 mA	65 mA	1.9 A	UBX-M8
u-blox SARA-R422M8S-00B	Antenna Not Included Castellation	8PSK GMSK	33 dBm	Cellular	350 mA	Surface Mount	96-SMD Module	GPIO I2C UART USB	1.7GHz 1.8GHz 1.9GHz 2.1GHz 700MHz 750MHz 800MHz 850MHz 900MHz	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 750 MHz 800 MHz 850 MHz 900 MHz	1.119 Mbps	3.2 V	4.5 V	350 mA	4G LTE CAT M1 NB-IoT	-40 °C	85 °C
