PZC35 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 70POS 2.54MM

Part	Contact Finish - Mating	Termination	Material Flammability Rating	Connector Type	Overall Contact Length	Overall Contact Length	Contact Type	Insulation Height	Insulation Height	Mounting Type	Current Rating (Amps)	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Number of Rows [custom]	Insulation Color	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Fastening Type	Contact Finish - Post	Number of Positions	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post [custom]	Contact Length - Post [custom]
Sullins Connector Solutions PZC35DFEN	Gold	Solder	UL94 V-0	Header	23.83 mm	0.938 in	Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	8.08 mm	0.318 in	Polyester Thermoplastic	2	Black	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	70	Square	0.1 "	2.54 mm	0.52 in	13.21 mm
Sullins Connector Solutions PZC35DACN	Gold	Solder	UL94 V-0	Header	16.51 mm	0.65 in	Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	5.84 mm	0.23 in	Polyester Thermoplastic	2	Black	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	70	Square	0.1 "	2.54 mm	0.32 in	8.13 mm

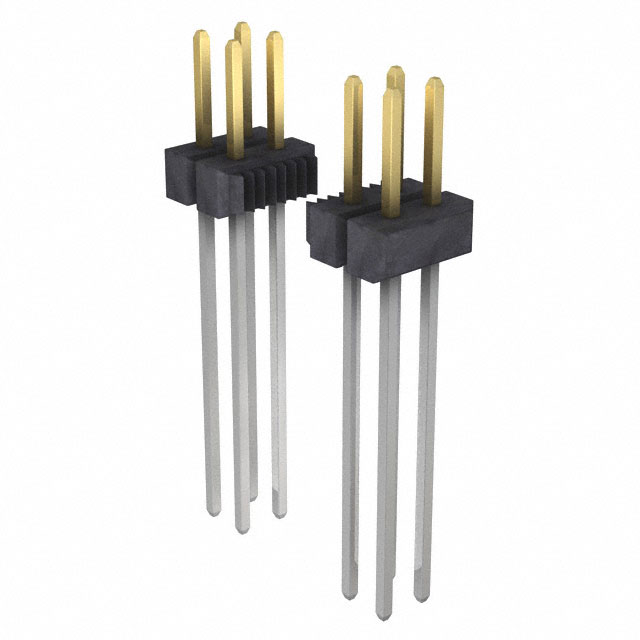

Sullins Connector Solutions PZC35DAHN	Gold	Solder	UL94 V-0	Header	29.21 mm	1.15 in	Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	5.84 mm	0.23 in	Polyester Thermoplastic	2	Black	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	70	Square	0.1 "	2.54 mm	0.82 in	20.83 mm
Sullins Connector Solutions PZC35SFBN	Gold	Solder	UL94 V-0	Header	16.21 mm	0.638 in	Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	8.08 mm	0.318 in	Polyester Thermoplastic		Black	Unshrouded			2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	35	Square	0.1 "	2.54 mm	0.22 in	5.58 mm	1
Sullins Connector Solutions PZC35DAEN	Gold	Solder	UL94 V-0	Header	21.59 mm	0.85 in	Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	5.84 mm	0.23 in	Polyester Thermoplastic	2	Black	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	70	Square	0.1 "	2.54 mm	0.52 in	13.21 mm
Sullins Connector Solutions PZC35SBCN	Gold	Solder	UL94 V-0	Header			Male Pin	0.14 in	3.56 mm	Right Angle Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	5.84 mm	0.23 in	Polyester Thermoplastic		Black	Unshrouded			2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	35	Square	0.1 "	2.54 mm	0.32 in	8.13 mm	1
Sullins Connector Solutions PZC35SADN	Gold	Solder	UL94 V-0	Header			Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	5.84 mm	0.23 in	Polyester Thermoplastic		Black	Unshrouded			2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	35	Square	0.1 "	2.54 mm	0.42 in	10.67 mm	1	19.05 mm	0.75 in
Sullins Connector Solutions PZC35DFAN	Gold	Solder	UL94 V-0	Header			Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	8.08 mm	0.318 in	Polyester Thermoplastic	2	Black	Unshrouded	0.1 in	2.54 mm	2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	70	Square	0.1 "	2.54 mm	0.12 in	3.05 mm		13.67 mm	0.538 in
Sullins Connector Solutions PZC35SAFN	Gold	Solder	UL94 V-0	Header	24.13 mm	0.95 in	Male Pin	0.1 in	2.54 mm	Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	5.84 mm	0.23 in	Polyester Thermoplastic		Black	Unshrouded			2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	35	Square	0.1 "	2.54 mm			1			15.75 mm	0.62 "

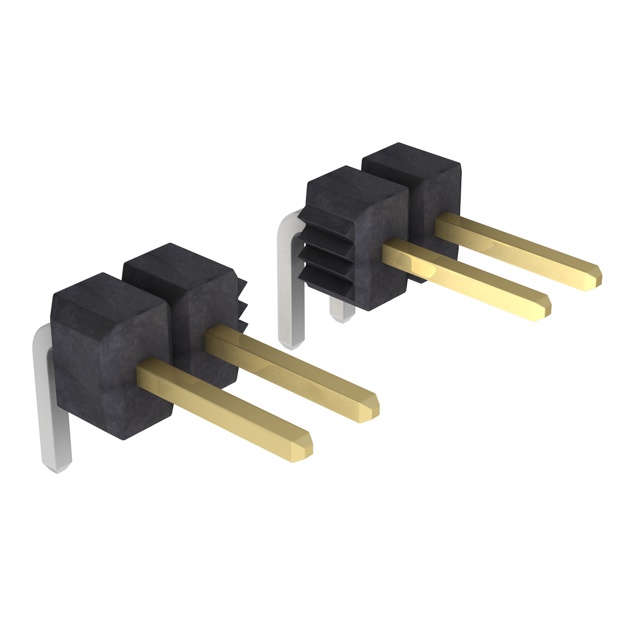

Sullins Connector Solutions PZC35SBAN	Gold	Solder	UL94 V-0	Header			Male Pin	0.14 in	3.56 mm	Right Angle Through Hole	3 A	Copper Alloy	All	0.25 µm	10 µin	5.84 mm	0.23 in	Polyester Thermoplastic		Black	Unshrouded			2.54 µm	100 µin	Board to Board Cable	Push-Pull	Tin	35	Square	0.1 "	2.54 mm	0.12 in	3.05 mm	1
