0670-0 Series

Catalog

CONN PIN RCPT .015-.025 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Tail Type	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth [z]	Socket Depth [z]	Contact Finish Thickness	Contact Finish Thickness	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]

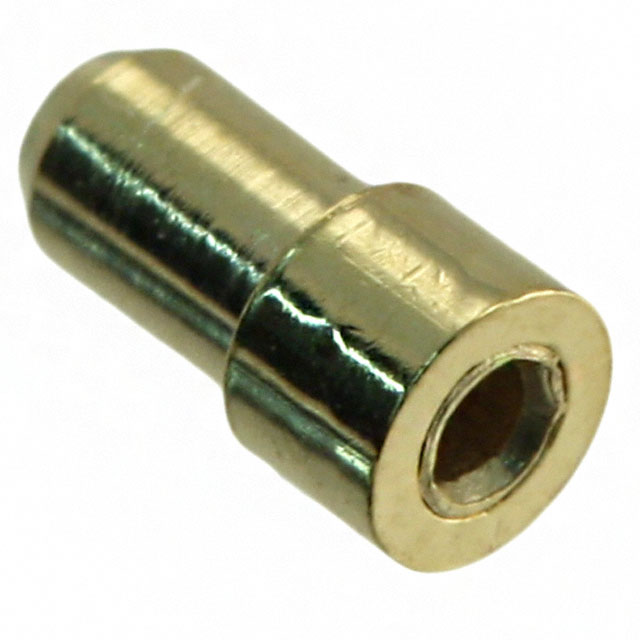

Mill-Max Manufacturing Corp. 0670-0-15-15-30-27-10-0	-55 C	125 °C	0.06 in	1.52 mm	Beryllium Copper	No Tail	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.113 in	2.87 mm	30 Áin	0.76 Ám	Solder	0.072 "	1.83 mm	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 0670-0-15-01-30-27-10-0	-55 C	125 °C	0.06 in	1.52 mm	Beryllium Copper	No Tail	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.113 in	2.87 mm	30 Áin	0.76 Ám	Solder	0.072 "	1.83 mm	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 0670-0-15-15-30-14-10-0	-55 C	125 °C	0.06 in	1.52 mm	Beryllium Copper	No Tail	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.113 in	2.87 mm	10 Áin	0.25 Ám	Solder	0.072 "	1.83 mm	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 0670-0-15-80-30-14-10-0	-55 C	125 °C	0.06 in	1.52 mm	Beryllium Copper	No Tail	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	0.113 in	2.87 mm	10 Áin	0.25 Ám	Solder	0.072 "	1.83 mm	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 0670-0-15-80-30-84-10-0	-55 C	125 °C	0.06 in	1.52 mm	Beryllium Copper	No Tail	Tin	0.64 mm	0.015 "	0.025 in	0.38 mm	0.113 in	2.87 mm	100 µin	2.54 µm	Solder	0.072 "	1.83 mm	0.135 in	3.43 mm
