1174L Series

Catalog

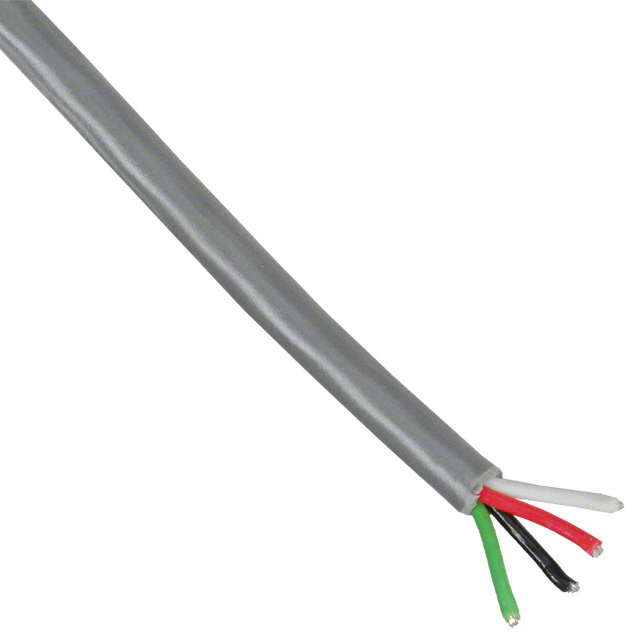

MULTICONDUCTOR CABLE, UNSHIELDED, 4 CONDUCTOR, 22 AWG, 0.35 MM², 1000 FT, 305 M

Part	Wire Gauge	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Cable Type	Conductor Insulation	Length	Length	Number of Conductors	Voltage	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 1174L SL001	22 AWG	Slate	0.189 in	4.8 mm	Copper Tinned	0.635 mm	0.025 in	30 AWG	7	Communication Control	Multi-Conductor	Low Smoke Zero Halogen (LSZH)	304.8 m	1000 ft	4	300 VDC	Low Smoke Zero Halogen (LSZH)
ALPHA WIRE 1174L SL005	22 AWG	Slate	0.189 in	4.8 mm	Copper Tinned	0.635 mm	0.025 in	30 AWG	7	Communication Control	Multi-Conductor	Low Smoke Zero Halogen (LSZH)			4	300 VDC	Low Smoke Zero Halogen (LSZH)	100 ft	30.5 m
ALPHA WIRE 1174L SL002	22 AWG	Slate	0.189 in	4.8 mm	Copper Tinned	0.635 mm	0.025 in	30 AWG	7	Communication Control	Multi-Conductor	Low Smoke Zero Halogen (LSZH)	152.4 m	500 ft	4	300 VDC	Low Smoke Zero Halogen (LSZH)
