ALC40C Series
Manufacturer: KEMET
Beta
⌘K

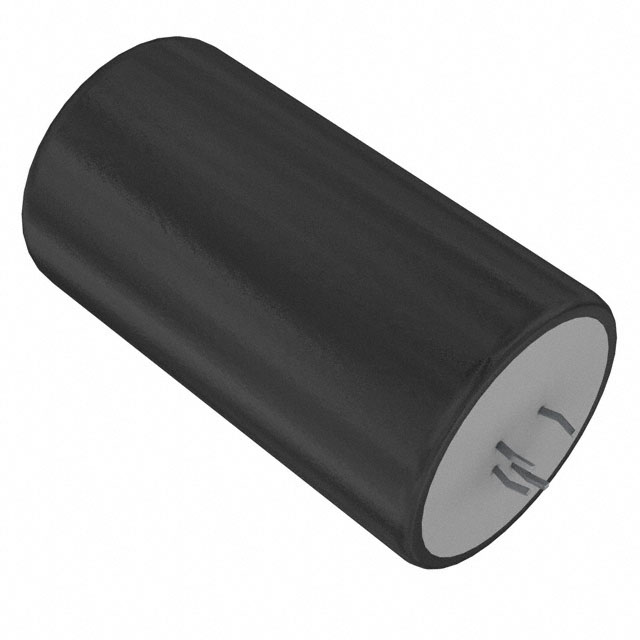

CAP ALUM 1000UF 20% 400V SNAP TH
| Part | Lifetime @ Temp. | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Ripple Current @ High Frequency | Voltage - Rated | Tolerance | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Capacitance | Ripple Current @ Low Frequency | ESR (Equivalent Series Resistance) | Polarization | Impedance | Size / Dimension [diameter] | Size / Dimension [diameter] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 9000 Hrs | 0.886 in | 22.5 mm | -40 C | 105 ░C | Through Hole | 10.16 A | 400 V | 20 % | Radial Can - Snap-In - 4 Lead | 3.228 in | 82 mm | 1000 µF | 4.85 A | 118 mOhm | Polar | 73 mOhms | 1.575 in | 40 mm | General Purpose |
KEMET | 18000 Hrs | 0.886 in | 22.5 mm | -40 C | 105 ░C | Through Hole | 10.04 A | 450 V | 20 % | Radial Can - Snap-In - 4 Lead | 3.228 in | 82 mm | 820 µF | 4.3 A | 154 mOhm | Polar | 85 mOhms | 1.575 in | 40 mm | General Purpose |
 KEMET | 9000 Hrs | 0.886 in | 22.5 mm | -40 C | 105 ░C | Through Hole | 450 V | 20 % | Radial Can - Snap-In - 4 Lead | 3.228 in | 82 mm | 1000 µF | Polar | 1.772 " | 45 mm | General Purpose |
