WR-80P-V Series
Manufacturer: JAE Electronics
Beta
⌘K

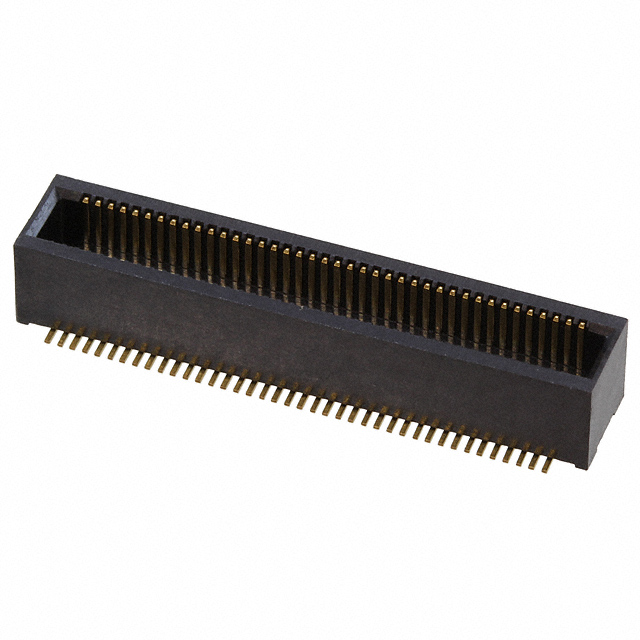

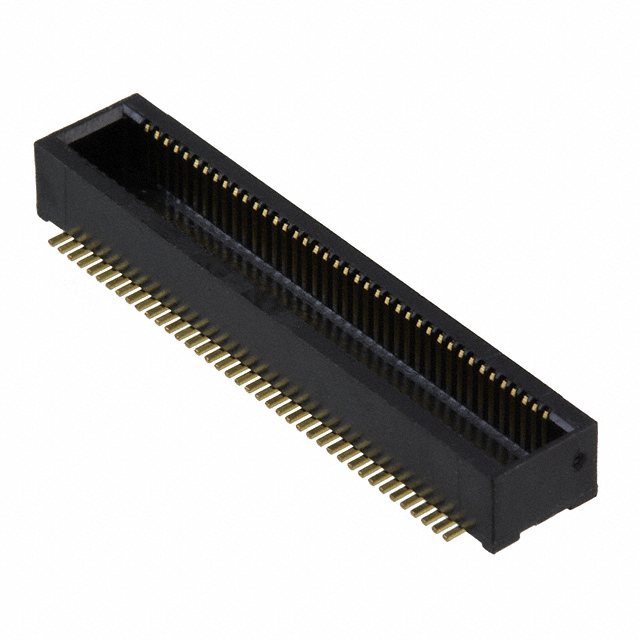

CONN PLUG 80POS SMD GOLD
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Connector Type | Mounting Type | Number of Rows [custom] | Mated Stacking Heights | Contact Finish | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 80 | 0.1 Ám | 4 Áin | 0.02 " | 0.5 mm | 0.157 in | 4 mm | Plug Outer Shroud Contacts | Surface Mount | 2 | 5 mm 5.5 mm 8 mm | Gold | ||
 JAE Electronics | 80 | 0.1 Ám | 4 Áin | 0.02 " | 0.5 mm | 0.118 in | 3 mm | Plug Outer Shroud Contacts | Surface Mount | 2 | 4 mm 4.5 mm 7 mm | Gold | ||
 JAE Electronics | 80 | 0.1 Ám | 4 Áin | 0.02 " | 0.5 mm | 0.157 in | 4 mm | Plug Outer Shroud Contacts | Surface Mount | 2 | 5 mm 5.5 mm 8 mm | Gold | ||
JAE Electronics | 80 | 0.1 Ám | 4 Áin | 0.02 " | 0.5 mm | Plug Outer Shroud Contacts | Surface Mount | 2 | 6 mm 6.5 mm 9 mm | Gold | 5 mm | 0.197 in |
