501876 Series

2.00mm Pitch, iGrid PCB Header, Dual Row, Right-Angle, Through Hole, Matte Tin (Sn) Plating, Positive Lock, 26 Circuits, Tray, 3.20mm PC Tail Length, Natural

Manufacturer: Molex

Catalog

2.00mm Pitch, iGrid PCB Header, Dual Row, Right-Angle, Through Hole, Matte Tin (Sn) Plating, Positive Lock, 26 Circuits, Tray, 3.20mm PC Tail Length, Natural

Part	Shrouding	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Mounting Type	Number of Positions	Contact Shape	Fastening Type	Connector Type	Termination	Insulation Color	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions	Applications
Molex 5018762242
Molex 5018763046	Shrouded - 4 Wall	Board to Cable/Wire	1 çm	39.4 çin	-40 °C	105 ░C	Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm	250 VAC	0.079 in	2 mm	Varies by Wire Gauge	Through Hole Right Angle	30	Square	Latch Holder	Header	Solder	Green	0.327 "	8.3 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	1 µm	39.4 µin	Tin
Molex 5018762244	Shrouded - 4 Wall	Board to Cable/Wire	1 çm	39.4 çin	-40 °C	105 ░C	Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm	250 VAC	0.079 in	2 mm	Varies by Wire Gauge	Through Hole Right Angle	22 positions	Square	Latch Holder	Header	Solder	Blue	0.327 "	8.3 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	1 µm	39.4 µin	Tin

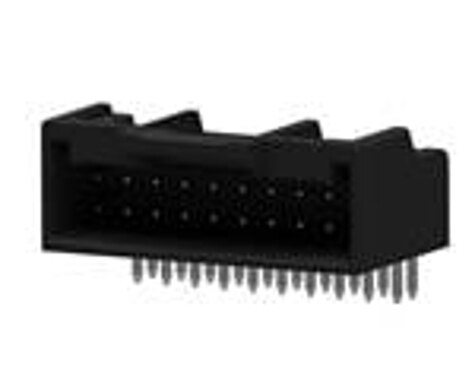

Molex 5018761641	Shrouded - 4 Wall	Board to Cable/Wire	1 çm	39.4 çin	-40 °C	105 ░C	Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm	250 VAC	0.079 in	2 mm	Varies by Wire Gauge	Through Hole Right Angle		Square	Latch Holder	Header	Solder	Black	0.327 "	8.3 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	1 µm	39.4 µin	Tin	16
Molex 5018761842	Shrouded - 4 Wall	Board to Cable/Wire	1 çm	39.4 çin	-40 °C	105 ░C	Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm	250 VAC	0.079 in	2 mm	Varies by Wire Gauge	Through Hole Right Angle	18	Square	Latch Holder	Header	Solder	Red	0.327 "	8.3 mm	UL94 V-0	Glass Filled Nylon Polyamide (PA)	1 µm	39.4 µin	Tin

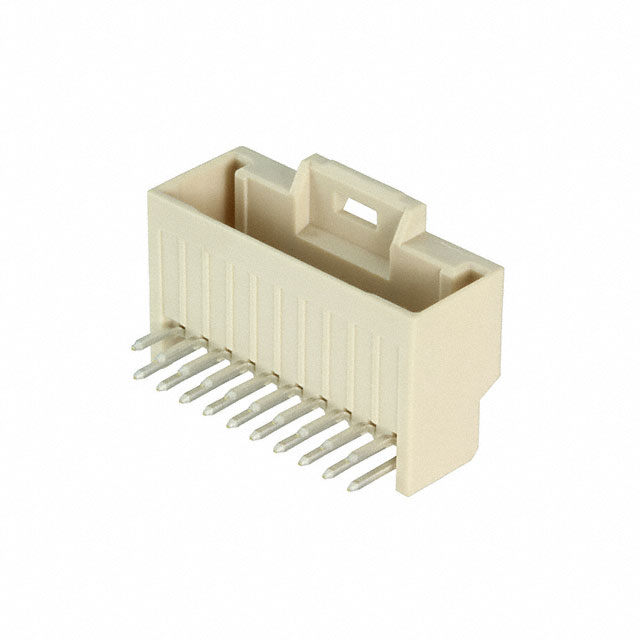

Molex 5018762040	Shrouded - 4 Wall	Board to Cable/Wire					Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm		0.079 in	2 mm		Through Hole Right Angle	20	Square	Latch Holder	Header	Solder	Natural	0.327 "	8.3 mm	UL94 V-0	Polyamide (PA66) Nylon 6/6 Glass Filled			Tin		Automotive General Purpose Industrial Medical Telecommunications
Molex 5018763040	Shrouded - 4 Wall	Board to Cable/Wire					Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm		0.079 in	2 mm		Through Hole Right Angle	30	Square	Latch Holder	Header	Solder	Natural	0.327 "	8.3 mm	UL94 V-0	Polyamide (PA66) Nylon 6/6 Glass Filled			Tin		Automotive General Purpose Industrial Medical Telecommunications

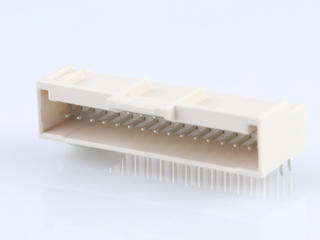

Molex 5018763240	Shrouded - 4 Wall	Board to Cable/Wire					Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm		0.079 in	2 mm		Through Hole Right Angle		Square	Latch Holder	Header	Solder	Natural	0.327 "	8.3 mm	UL94 V-0	Polyamide (PA66) Nylon 6/6 Glass Filled			Tin		Automotive General Purpose Industrial Medical Telecommunications

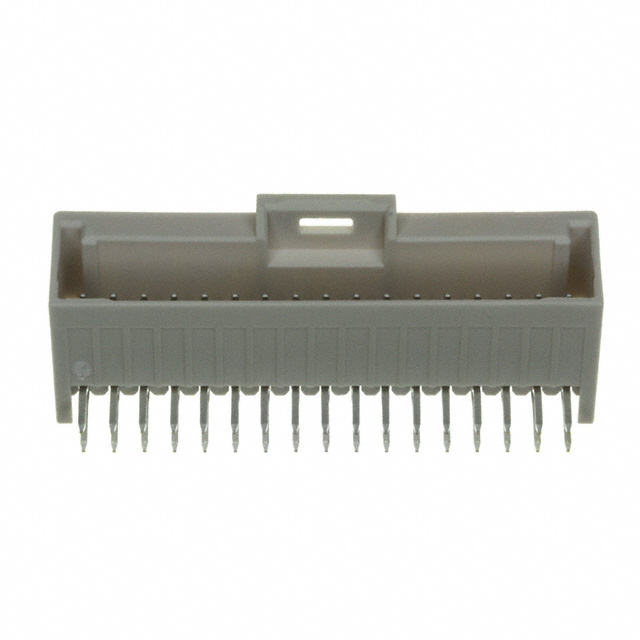

Molex 5018763440	Shrouded - 4 Wall	Board to Cable/Wire					Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm		0.079 in	2 mm		Through Hole Right Angle	34	Square	Latch Holder	Header	Solder	Natural	0.327 "	8.3 mm	UL94 V-0	Polyamide (PA66) Nylon 6/6 Glass Filled			Tin		Automotive General Purpose Industrial Medical Telecommunications
Molex 5018762440	Shrouded - 4 Wall	Board to Cable/Wire					Brass	All	2	3.2 mm	0.126 in	Male Pin	0.079 in	2 mm		0.079 in	2 mm		Through Hole Right Angle	24	Square	Latch Holder	Header	Solder	Natural	0.327 "	8.3 mm	UL94 V-0	Polyamide (PA66) Nylon 6/6 Glass Filled			Tin		Automotive General Purpose Industrial Medical Telecommunications
