90512 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

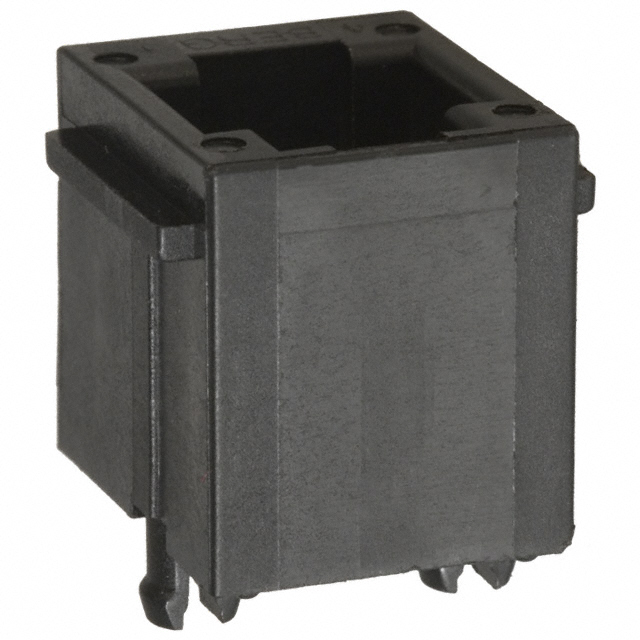

CONN MOD JACK 6P6C VERT UNSHLD
| Part | Shielding | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Features | Ratings | Tab Direction | Number of Rows | Orientation | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Mounting Type | Number of Positions/Contacts | Contact Material | LED Color | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Unshielded | Polyamide (PA) Nylon | 0.127 µm | 5 µin | Solder | Board Lock Panel Stops | Cat3 | User Selectable | 1 | Vertical | Jack | -40 °C | 70 °C | Gold | Through Hole | 6p6c (RJ11 RJ12 RJ14 RJ25) | Copper Alloy | Does Not Contain LED | 1 |
Amphenol ICC (FCI) | Unshielded | Polyamide (PA) Nylon | 0.127 µm | 5 µin | Solder | Board Lock Panel Stops | Cat3 | User Selectable | 1 | Vertical | Jack | -40 °C | 70 °C | Gold | Through Hole | 6p4c | Copper Alloy | Does Not Contain LED | 1 |
 Amphenol ICC (FCI) | Unshielded | Polyamide (PA) Nylon | 0.127 µm | 5 µin | Solder | Board Lock Panel Stops | Cat3 | User Selectable | 1 | Vertical | Jack | -40 °C | 70 °C | Gold | Through Hole | 6p4c | Copper Alloy | Does Not Contain LED | 1 |
