ED500 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 3POS SIDE ENTRY 5MM PCB
| Part | Clamp Material - Plating [custom] | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Contact Material - Plating | Housing Material | Wire Termination | Current | Mounting Type | Positions Per Level | Color | Wire Gauge [Min] | Wire Gauge [Max] | Voltage | Number of Levels | Mating Orientation | Pitch | Pitch | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

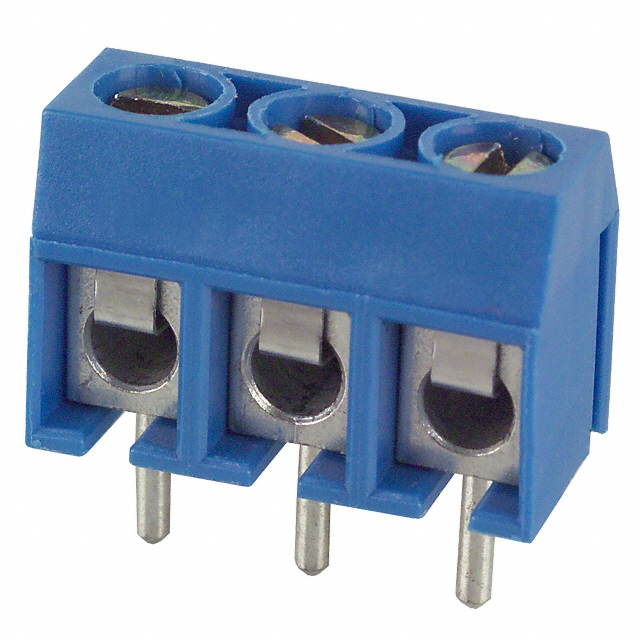

 On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 3 | Blue | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | |
 On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 6 | Gray | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | |

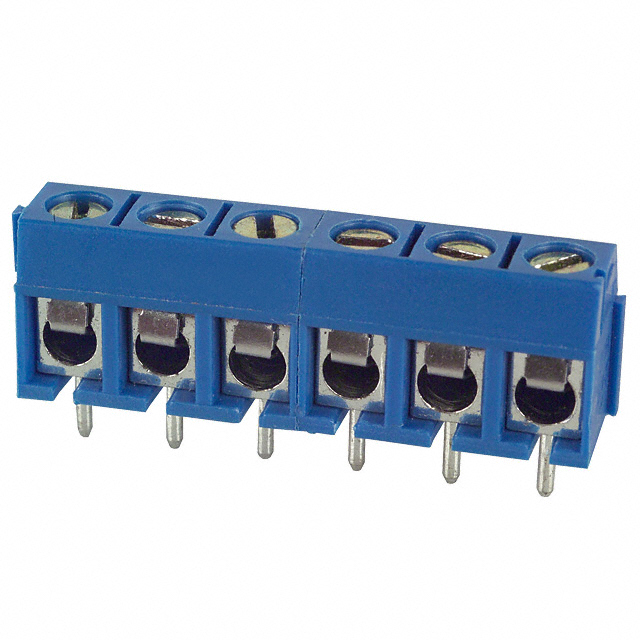

 On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 6 | Blue | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | |

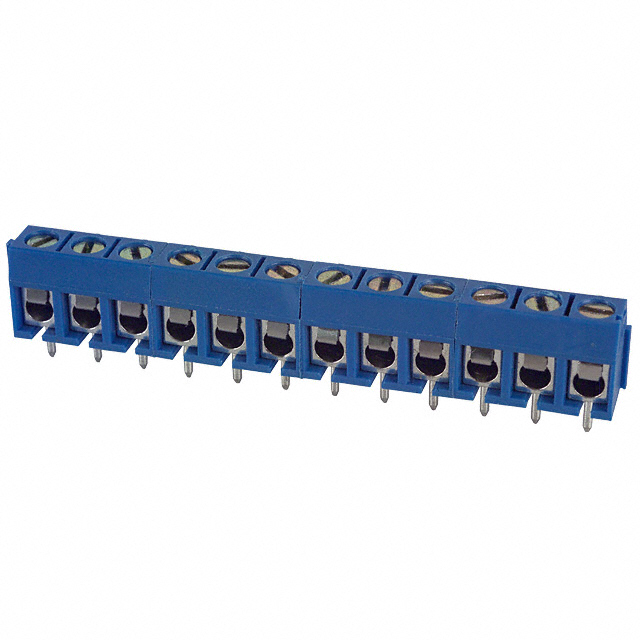

 On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 12 | Blue | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | |

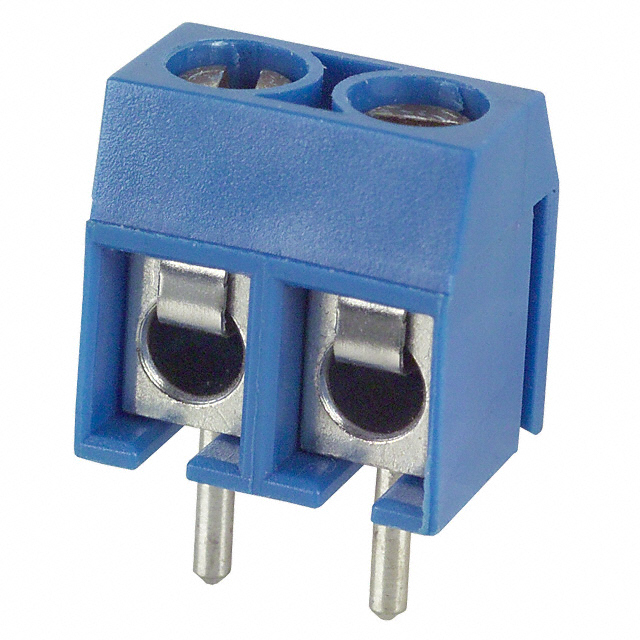

 On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 2 | Blue | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | |
On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 3 | Gray | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | |

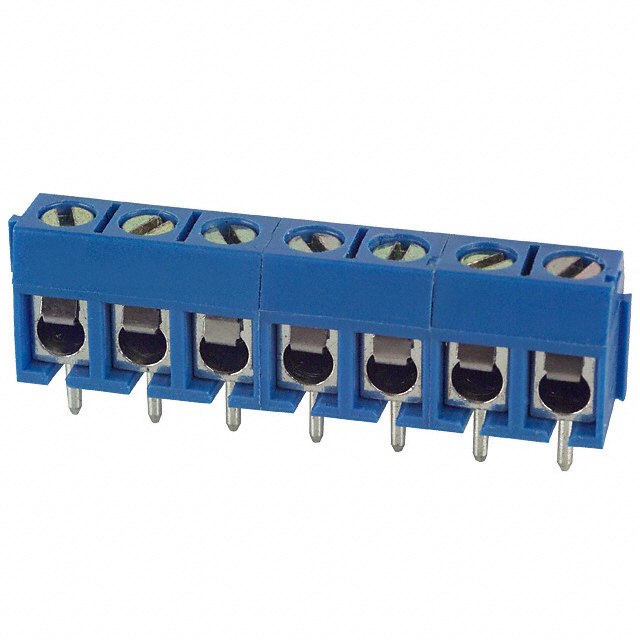

 On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | Blue | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | 7 | |

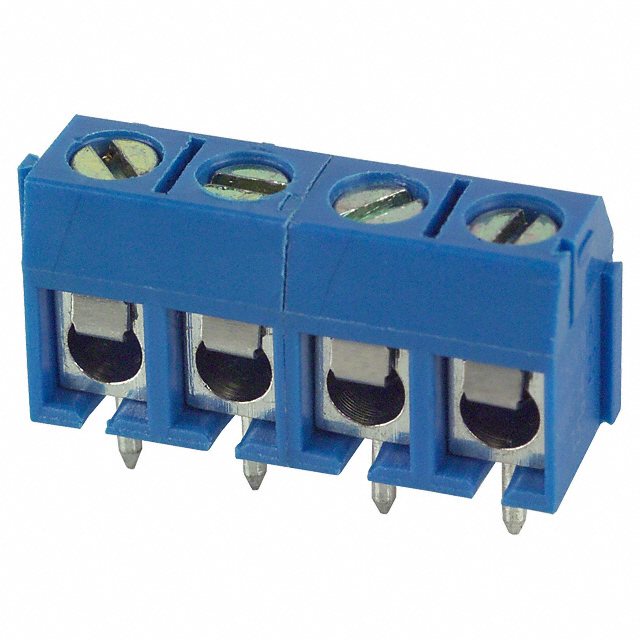

 On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 4 | Blue | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | |
On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 3 | Gray | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm | |

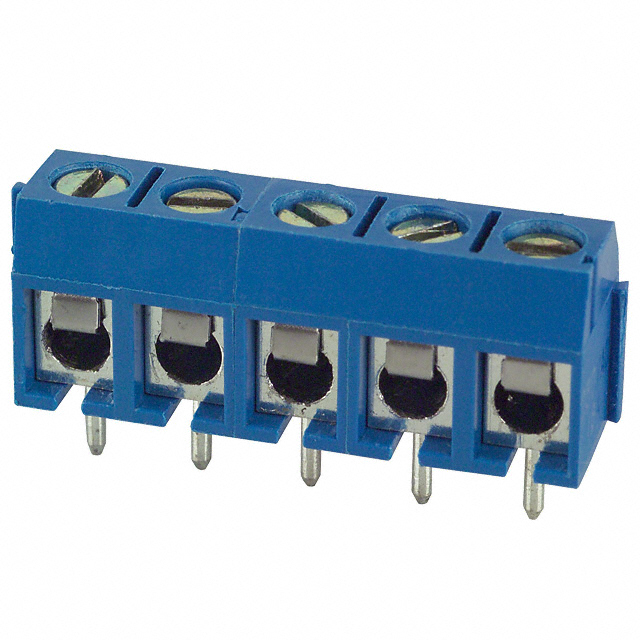

 On Shore Technology Inc. | Stainless Steel | M2.6 | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | Polyamide (PA) Nylon | Screw - Leaf Spring Wire Guard | 15 A | Through Hole | 5 | Blue | 14 AWG | 22 AWG | 300 VDC | 1 | Horizontal with Board | 0.197 in | 5 mm |
