PE4558 Series
Manufacturer: Pasternack
Beta
⌘K

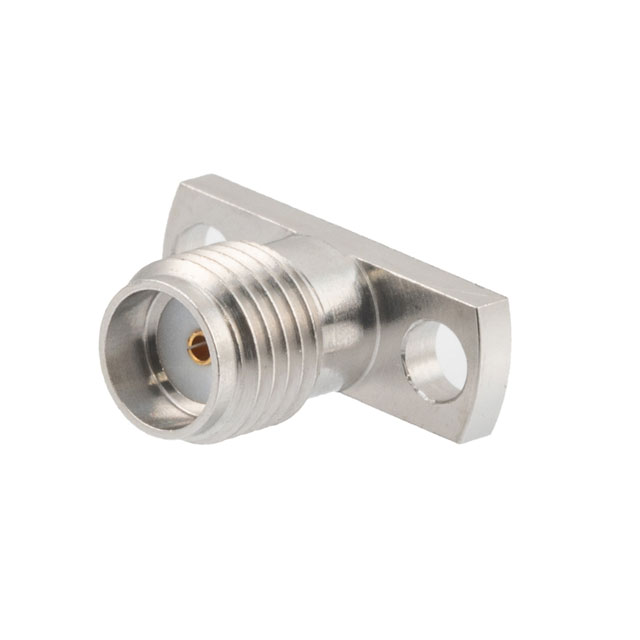

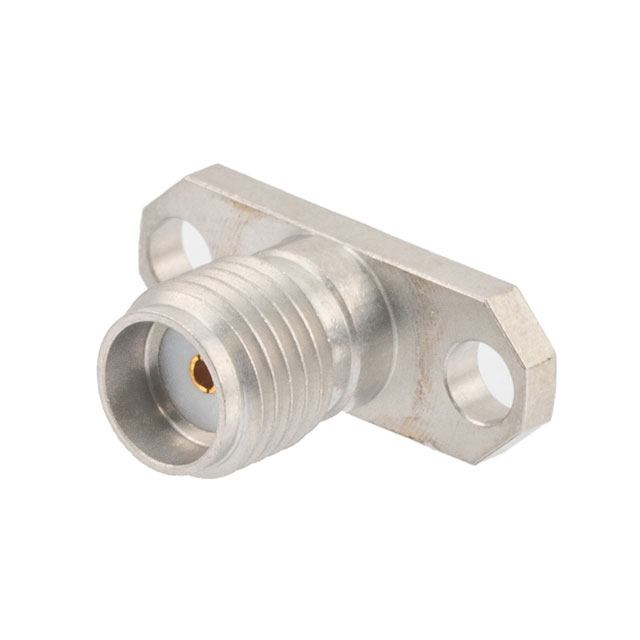

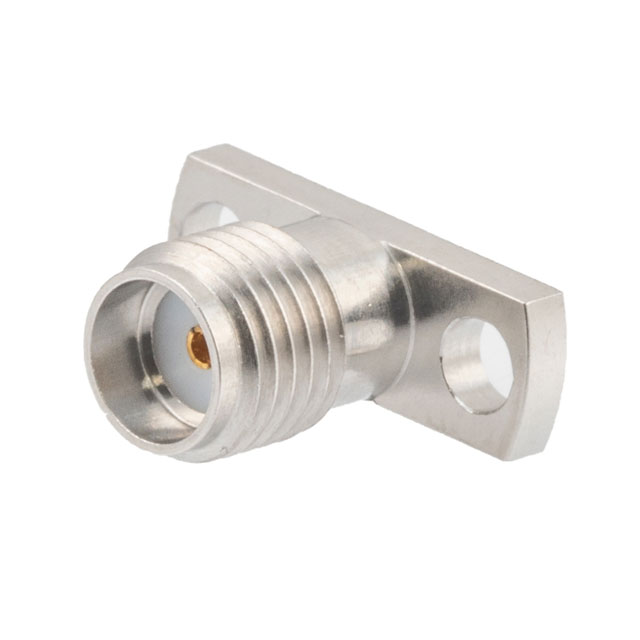

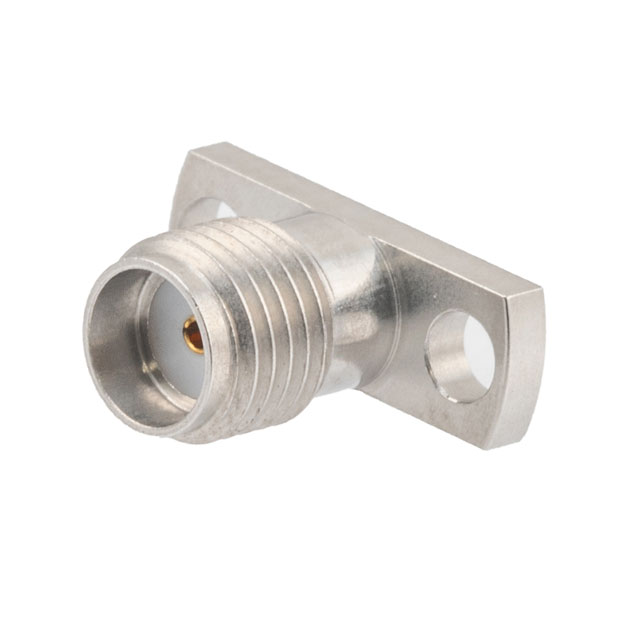

SMA(F) FLD RPL 2HOLE 0.015" PIN
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Center Contact Plating | Number of Ports | Connector Type | Housing Color | Impedance | Connector Style | Shield Termination | Contact Termination | Fastening Type | Mounting Type | Features | Mounting Feature | Center Contact Material | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pasternack | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 1 | Receptacle Female Socket | Silver | 50 Ohms | SMA | Screw | Compression | Threaded | Panel Mount | Field Replaceable For Hermetically Sealed Pin | Flange | Beryllium Copper | 27 GHz |
 Pasternack | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 1 | Receptacle Female Socket | Silver | 50 Ohms | SMA | Screw | Compression | Threaded | Panel Mount | Field Replaceable For Hermetically Sealed Pin | Flange | Beryllium Copper | 27 GHz |
 Pasternack | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 1 | Receptacle Female Socket | Silver | 50 Ohms | SMA | Screw | Compression | Threaded | Panel Mount | Field Replaceable For Hermetically Sealed Pin | Flange | Beryllium Copper | 27 GHz |
 Pasternack | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 1 | Receptacle Female Socket | Silver | 50 Ohms | SMA | Screw | Compression | Threaded | Panel Mount | Field Replaceable For Hermetically Sealed Pin | Flange | Beryllium Copper | 27 GHz |
