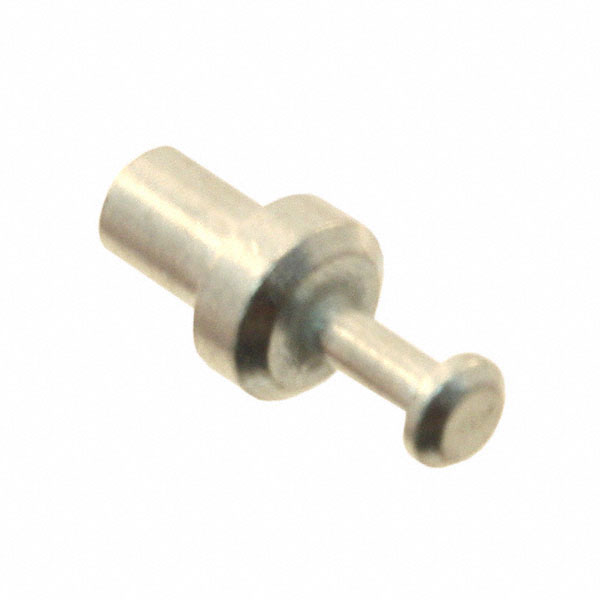

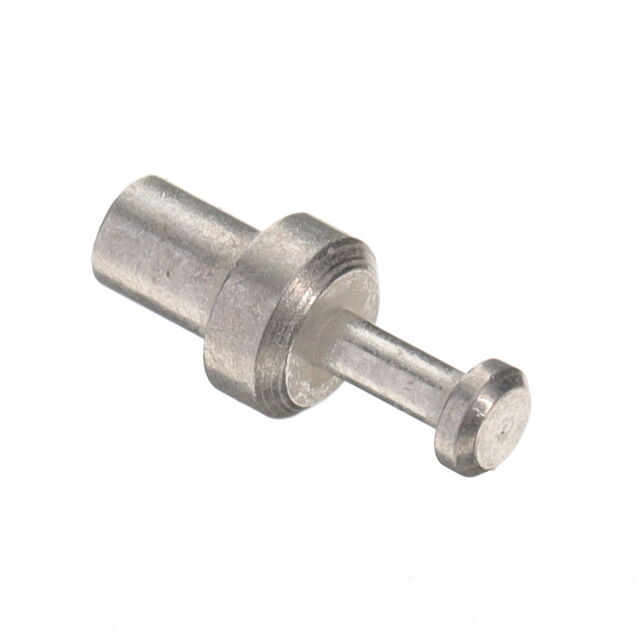

2503-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
TERM TURRET SNG
| Part | Board Thickness | Board Thickness | Length - Overall [x] | Length - Overall [x] | Insulation | Number of Turrets | Contact Material | Contact Finish | Staking Side ID [diameter] | Staking Side ID [diameter] | Termination | Flange Diameter | Flange Diameter [diameter] | Terminal Type | Staking Side OD [diameter] | Staking Side OD [diameter] | Length - Above Board [x] | Length - Above Board [x] | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.062 in | 1.57 mm | 0.296 in | 7.52 mm | Non-Insulated | Single | Brass Alloy | Tin | 1.4 mm | 0.055 " | Swage | 3.18 mm | 0.125 in | Single End | 1.98 mm | 0.078 in | 0.187 in | 4.75 mm | 2.77 mm | 0.109 in | Through Hole | 1.91 mm | 0.075 in | 2.08 mm | 0.082 in | 200 Áin | 5.08 Ám |
Mill-Max Manufacturing Corp. | 0.062 in | 1.57 mm | 0.296 in | 7.52 mm | Non-Insulated | Single | Brass Alloy | Tin-Lead | 1.4 mm | 0.055 " | Swage | 3.18 mm | 0.125 in | Single End | 1.98 mm | 0.078 in | 0.187 in | 4.75 mm | 2.77 mm | 0.109 in | Through Hole | 1.91 mm | 0.075 in | 2.08 mm | 0.082 in | 300 µin | 7.62 µm |
 Mill-Max Manufacturing Corp. | 0.062 in | 1.57 mm | 0.296 in | 7.52 mm | Non-Insulated | Single | Brass Alloy | Tin-Lead | 1.4 mm | 0.055 " | Swage | 3.18 mm | 0.125 in | Single End | 1.98 mm | 0.078 in | 0.187 in | 4.75 mm | 2.77 mm | 0.109 in | Through Hole | 1.91 mm | 0.075 in | 2.08 mm | 0.082 in | 200 Áin | 5.08 Ám |
