M80-841 Series

Catalog

CONN, R/A HDR, 6POS, 2ROW, 2MM ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Color	Style	Number of Positions	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shrouding	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Post	Contact Length - Post	Contact Material	Material Flammability Rating	Features	Insulation Material	Number of Positions Loaded	Number of Rows [custom]	Connector Type	Voltage Rating	Contact Shape	Contact Finish - Mating	Fastening Type	Termination	Row Spacing - Mating	Row Spacing - Mating

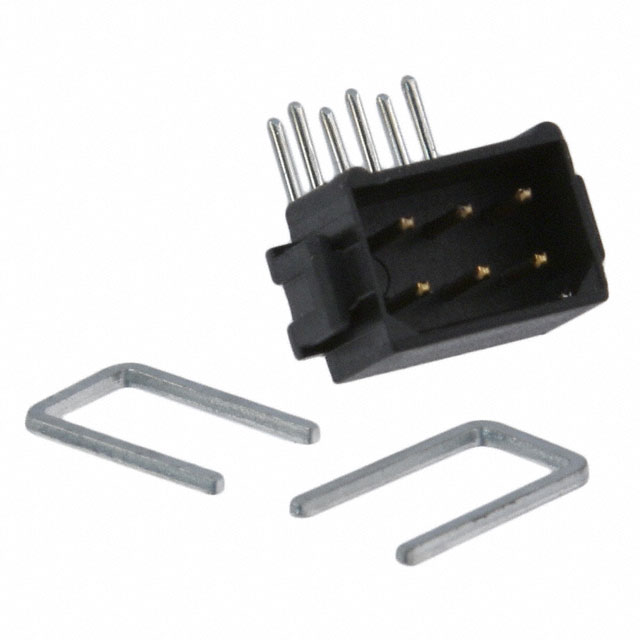

Harwin Inc. M80-8410642	118.1 µin	3 µm	Black	Board to Board Cable	6	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Tin	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in

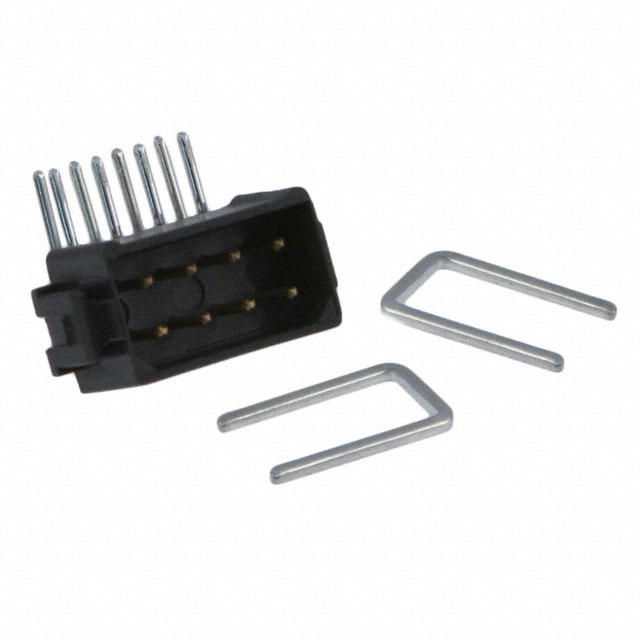

Harwin Inc. M80-8410842	118.1 µin	3 µm	Black	Board to Board Cable	8	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Tin	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in

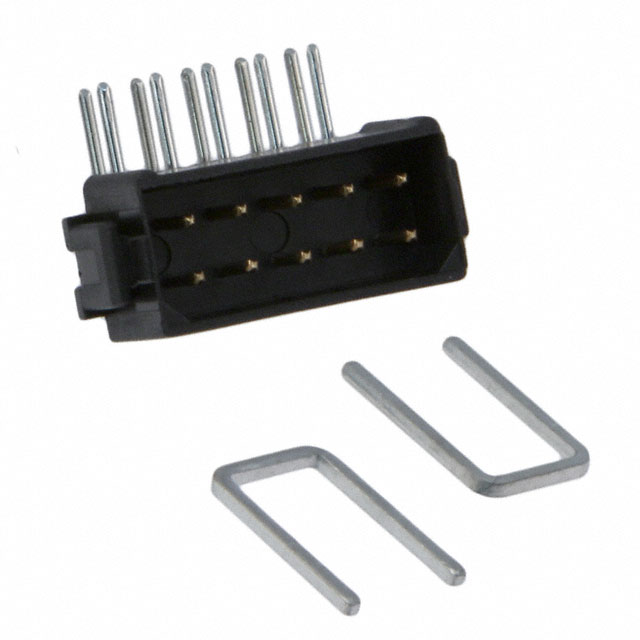

Harwin Inc. M80-8411042	118.1 µin	3 µm	Black	Board to Board Cable	10	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Tin	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in
Harwin Inc. M80-8412645			Black	Board to Board Cable	26	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Gold	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in
Harwin Inc. M80-8411045			Black	Board to Board Cable	10	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Gold	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in
Harwin Inc. M80-8410645			Black	Board to Board Cable	6	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Gold	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in

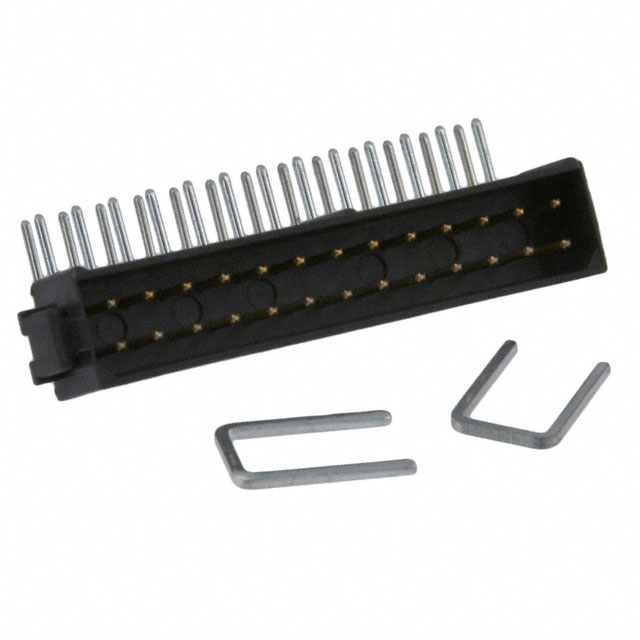

Harwin Inc. M80-8412642	118.1 µin	3 µm	Black	Board to Board Cable	26	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Tin	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in

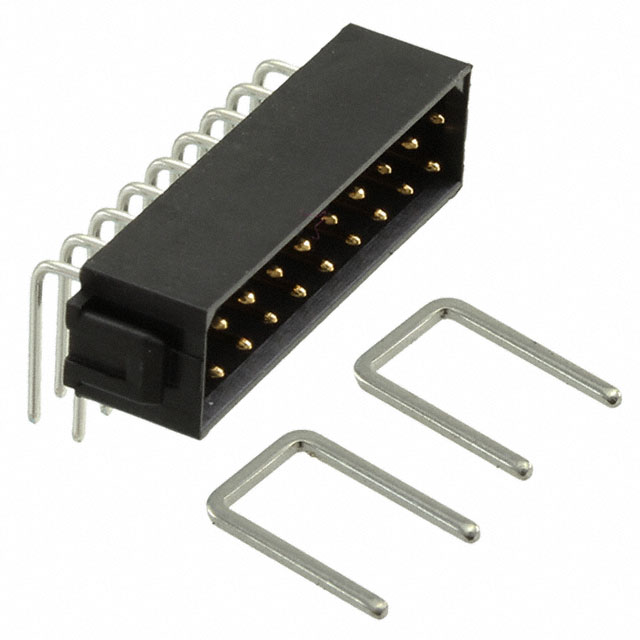

Harwin Inc. M80-8411842	118.1 µin	3 µm	Black	Board to Board Cable	18	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Tin	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in
Harwin Inc. M80-8411642	118.1 µin	3 µm	Black	Board to Board Cable	16	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Tin	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in

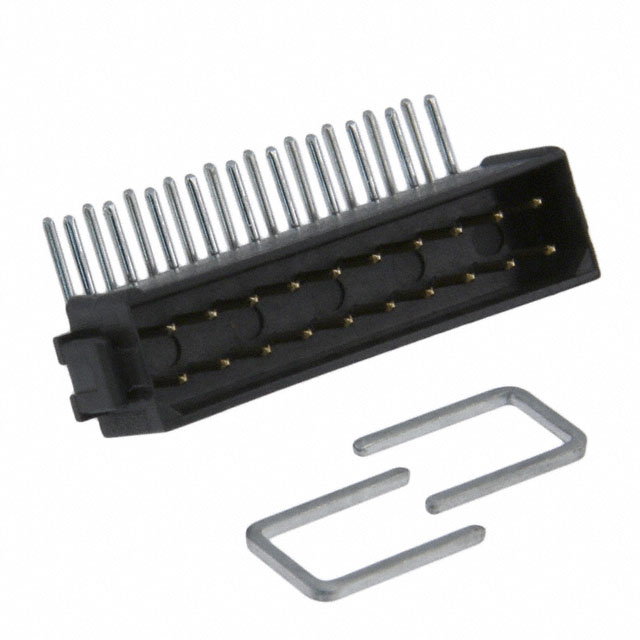

Harwin Inc. M80-8412042	118.1 µin	3 µm	Black	Board to Board Cable	20	0.079 "	2 mm	2.2 A	29.5 µin	0.75 µm	Shrouded - 4 Wall	Tin	0.235 in	5.97 mm	Right Angle Through Hole	-55 C	125 °C	Male Pin	0.118 in	3 mm	Phosphor Bronze	UL94 V-0	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	All	2	Header	120 VDC	Circular	Gold	Latch Holder	Solder	2 mm	0.079 in
