111-47 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

STANDRD SOLDRTL DBL SKT

Part	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Resistance	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Type	Type	Type	Termination	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Mounting Type	Contact Finish - Post	Housing Material	Features	Contact Material - Post	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 111-47-304-41-001000	UL94 V-0	4.32 mm	0.17 in	3 A	10 mOhm	Flash	-55 C	125 °C	2 x 2	4 pins	7.62 mm	0.3 in	DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 111-47-952-41-001000	UL94 V-0	4.32 mm	0.17 in	3 A	10 mOhm	Flash	-55 C	125 °C			22.86 mm	0.9 in	DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 111-47-642-41-001000	UL94 V-0	4.32 mm	0.17 in	3 A	10 mOhm	Flash	-55 C	125 °C		42			DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 111-47-428-41-001000	UL94 V-0	4.32 mm	0.17 in	3 A	10 mOhm	Flash	-55 C	125 °C		28		0.4 in	DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 111-47-652-41-001000	UL94 V-0	4.32 mm	0.17 in	3 A	10 mOhm	Flash	-55 C	125 °C					DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 111-47-424-41-001000	UL94 V-0	4.32 mm	0.17 in	3 A	10 mOhm	Flash	-55 C	125 °C		24		0.4 in	DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm			12	2

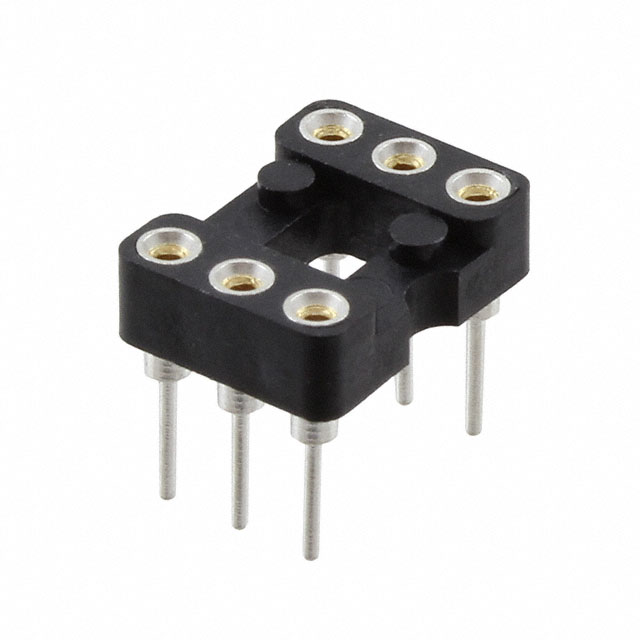

Mill-Max Manufacturing Corp. 111-47-306-41-001000		4.32 mm	0.17 in	3 A		Flash	-55 C	125 °C		6	7.62 mm	0.3 in	DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm			2	3 positions or pins
Mill-Max Manufacturing Corp. 111-47-432-41-001000	UL94 V-0	4.32 mm	0.17 in	3 A	10 mOhm	Flash	-55 C	125 °C		32		0.4 in	DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 111-47-950-41-001000	UL94 V-0	4.32 mm	0.17 in	3 A	10 mOhm	Flash	-55 C	125 °C			22.86 mm	0.9 in	DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm			2	25	50

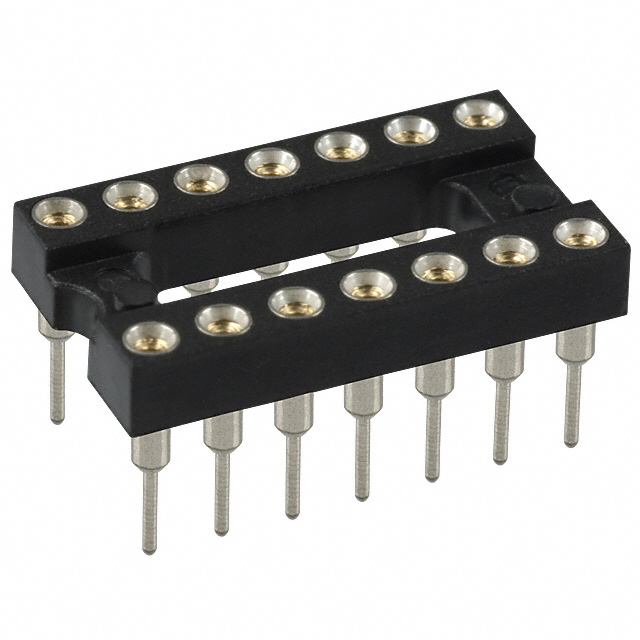

Mill-Max Manufacturing Corp. 111-47-314-41-001000		4.32 mm	0.17 in	3 A		Flash	-55 C	125 °C		14	7.62 mm	0.3 in	DIP	Solder	Beryllium Copper	200 µin	5.08 µm	Gold	Through Hole	Tin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	Brass Alloy	0.1 "	2.54 mm	0.1 in	2.54 mm
