S9691 Series

Manufacturer: Sullins Connector Solutions

Catalog

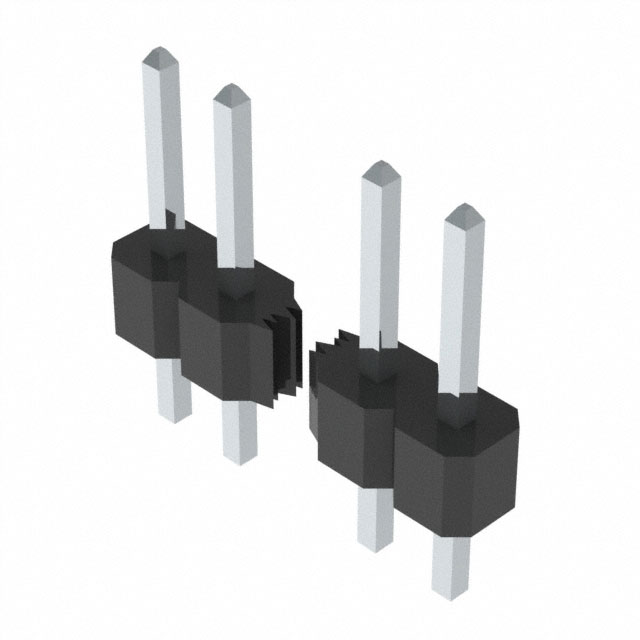

CONN HEADER VERT 2POS 2.54MM

Part	Fastening Type	Contact Finish - Post	Mounting Type	Number of Positions	Overall Contact Length [x]	Overall Contact Length [x]	Contact Material	Contact Type	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Number of Positions Loaded	Contact Shape	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Rows	Style	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Termination	Shrouding	Current Rating (Amps)

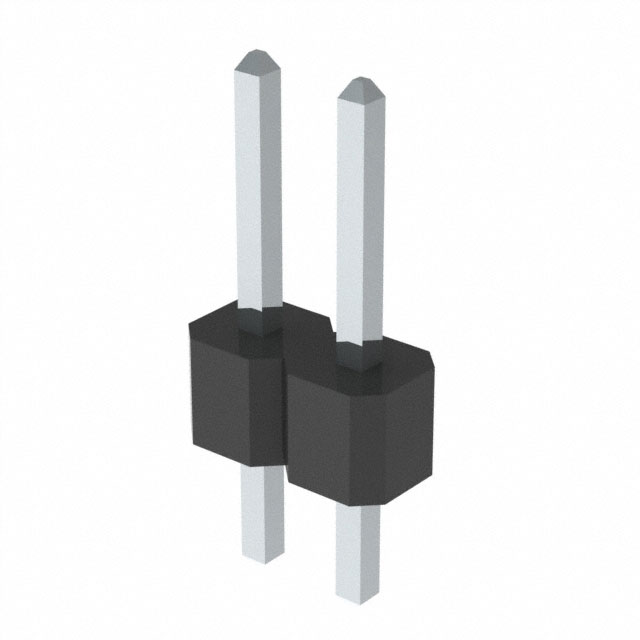

Sullins Connector Solutions S9691E-02	Push-Pull	Tin	Through Hole	2	11.43 mm	0.45 in	Phosphor Bronze	Male Pin	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	All	Square	Header Breakaway	-65 ░C	125 °C	Black	1	Board to Board Cable	3.05 mm	0.12 in	0.1 "	2.54 mm	0.23 in	5.84 mm	Solder	Unshrouded	3 A
Sullins Connector Solutions S9691E-12	Push-Pull	Tin	Through Hole	12	11.43 mm	0.45 in	Phosphor Bronze	Male Pin	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	All	Square	Header Breakaway	-65 ░C	125 °C	Black	1	Board to Board Cable	3.05 mm	0.12 in	0.1 "	2.54 mm	0.23 in	5.84 mm	Solder	Unshrouded	3 A
Sullins Connector Solutions S9691E-05	Push-Pull	Tin	Through Hole	5	11.43 mm	0.45 in	Phosphor Bronze	Male Pin	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	All	Square	Header Breakaway	-65 ░C	125 °C	Black	1	Board to Board Cable	3.05 mm	0.12 in	0.1 "	2.54 mm	0.23 in	5.84 mm	Solder	Unshrouded	3 A

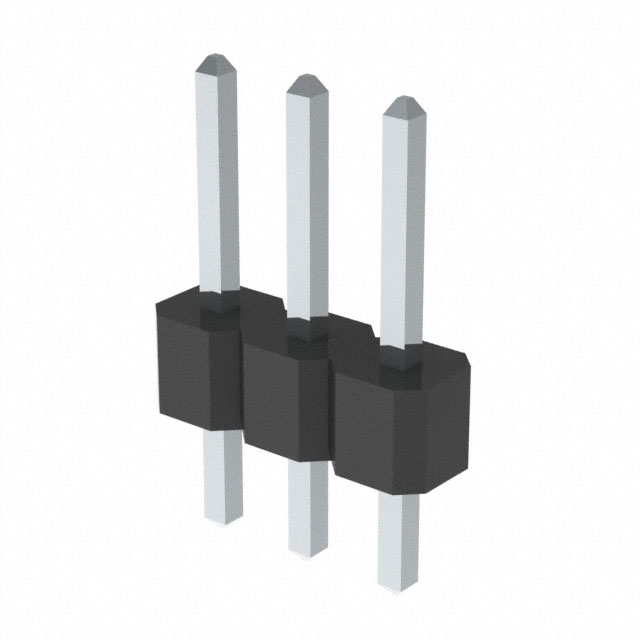

Sullins Connector Solutions S9691E-03	Push-Pull	Tin	Through Hole		11.43 mm	0.45 in	Phosphor Bronze	Male Pin	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	All	Square	Header Breakaway	-65 ░C	125 °C	Black	1	Board to Board Cable	3.05 mm	0.12 in	0.1 "	2.54 mm	0.23 in	5.84 mm	Solder	Unshrouded	3 A
Sullins Connector Solutions S9691E-11	Push-Pull	Tin	Through Hole	11	11.43 mm	0.45 in	Phosphor Bronze	Male Pin	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	All	Square	Header Breakaway	-65 ░C	125 °C	Black	1	Board to Board Cable	3.05 mm	0.12 in	0.1 "	2.54 mm	0.23 in	5.84 mm	Solder	Unshrouded	3 A
Sullins Connector Solutions S9691E-08	Push-Pull	Tin	Through Hole	8	11.43 mm	0.45 in	Phosphor Bronze	Male Pin	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	All	Square	Header Breakaway	-65 ░C	125 °C	Black	1	Board to Board Cable	3.05 mm	0.12 in	0.1 "	2.54 mm	0.23 in	5.84 mm	Solder	Unshrouded	3 A
Sullins Connector Solutions S9691E-07	Push-Pull	Tin	Through Hole	7	11.43 mm	0.45 in	Phosphor Bronze	Male Pin	0.1 in	2.54 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	All	Square	Header Breakaway	-65 ░C	125 °C	Black	1	Board to Board Cable	3.05 mm	0.12 in	0.1 "	2.54 mm	0.23 in	5.84 mm	Solder	Unshrouded	3 A
