78299 Series

Catalog

CONN HEADER R/A 20POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Color	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating	Contact Shape	Contact Material	Material Flammability Rating	Fastening Type	Shrouding	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Insulation Height	Insulation Height	Termination	Connector Type	Number of Positions Loaded	Insulation Material	Number of Positions	Contact Finish - Post
Amphenol ICC (FCI) 78299-620	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle	20	30 Áin	0.76 Ám	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All
Amphenol ICC (FCI) 78299-116H	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle		30 Áin	0.76 Ám	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	16

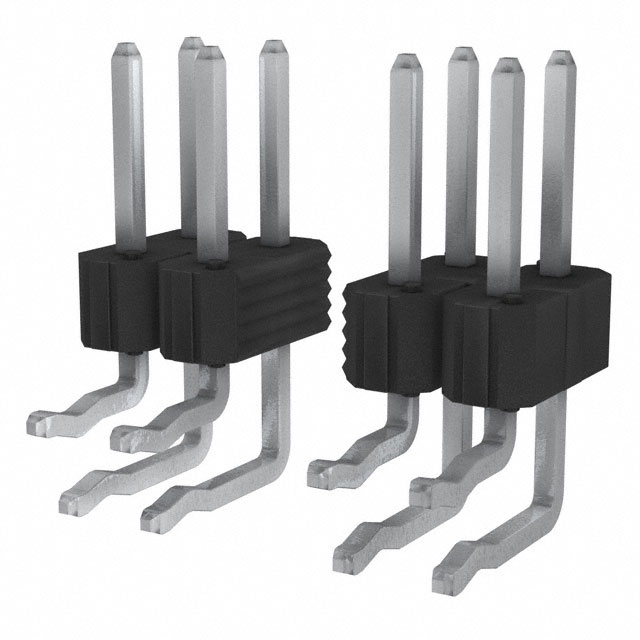

Amphenol ICC (FCI) 78299-404	0.1 in	2.54 mm		Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle	4	100 çin	2.54 çm	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All
Amphenol ICC (FCI) 78299-410	0.1 in	2.54 mm		Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle	10	100 çin	2.54 çm	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All
Amphenol ICC (FCI) 78299-216HLF	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle		15 µin	0.38 µm	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	16
Amphenol ICC (FCI) 78299-272	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle	72	15 µin	0.38 µm	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All
Amphenol ICC (FCI) 78299-106	0.1 in	2.54 mm	Gold or Gold GXT™	Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle	6	30 Áin	0.76 Ám	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All
Amphenol ICC (FCI) 78299-416HLF	0.1 in	2.54 mm		Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle		100 çin	2.54 çm	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)	16	Tin

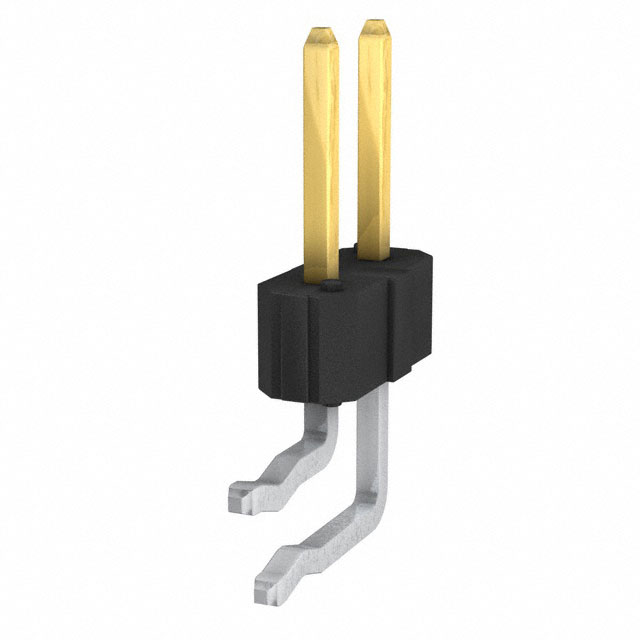

Amphenol ICC (FCI) 78299-102HLF			Gold or Gold GXT™	Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle	2	30 Áin	0.76 Ám	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)

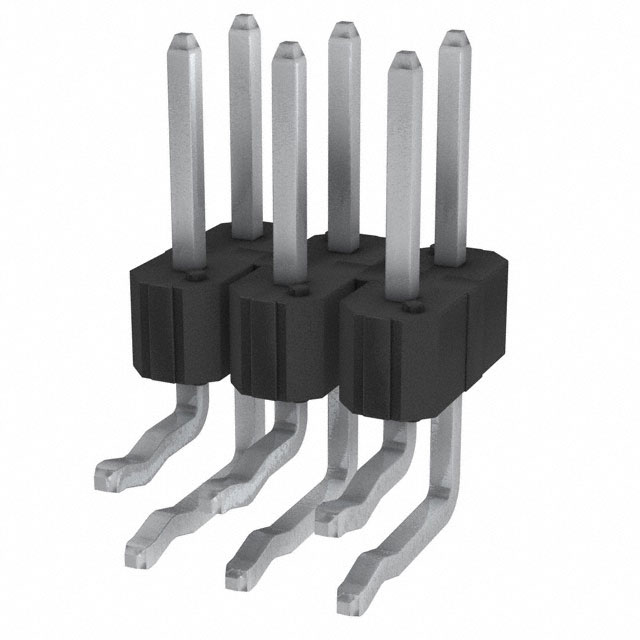

Amphenol ICC (FCI) 78299-406HLF	0.1 in	2.54 mm		Black	2	2.54 mm	0.1 in	0.23 in	5.84 mm	Square	Phosphor Bronze	UL94 V-0	Push-Pull	Unshrouded	Through Hole Right Angle	6	100 çin	2.54 çm	0.12 in	3.05 mm	Male Pin	4.83 mm	0.19 in	Press-Fit Solder	Header	All	Polycyclohexylenedimethylene Terephthalate (PCT)		Tin
