CRE22F4B Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER SPST 20A 125V
| Part | Mechanical Life | Electrical Life | Color - Actuator/Cap | Circuit | Ingress Protection | Termination Style | Actuator Type | Actuator Marking | Current Rating (Amps) | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

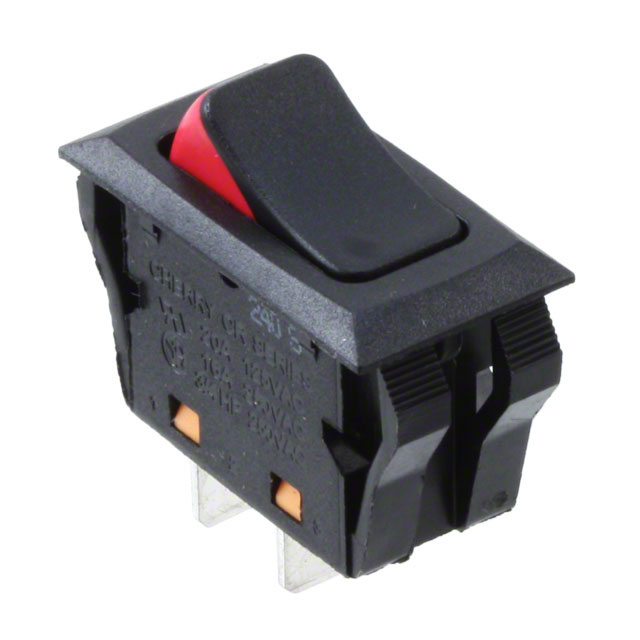

 ZF Electronics | 100000 Cycles | 6000 Cycles | Black Red | SPST | IP42 | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | No Marking | 20 A | 125 V | 85 °C | -20 ░C | On-Off | 13.8 mm | 28.5 mm | Panel Mount Snap-In | Two-Tone Rocker |

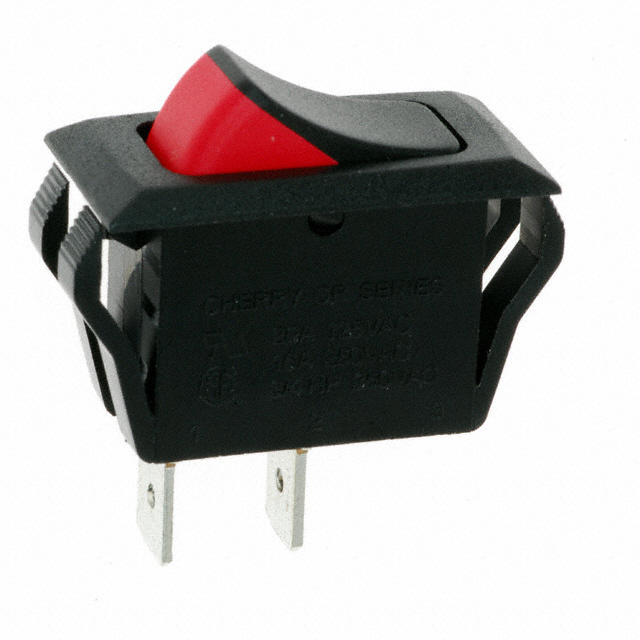

 ZF Electronics | 100000 Cycles | 6000 Cycles | Black Red | SPST | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | No Marking | 20 A | 125 V | 85 °C | -20 ░C | On-Off | 12.1 mm | 28.5 mm | Panel Mount Snap-In | Two-Tone Rocker |
