280428 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

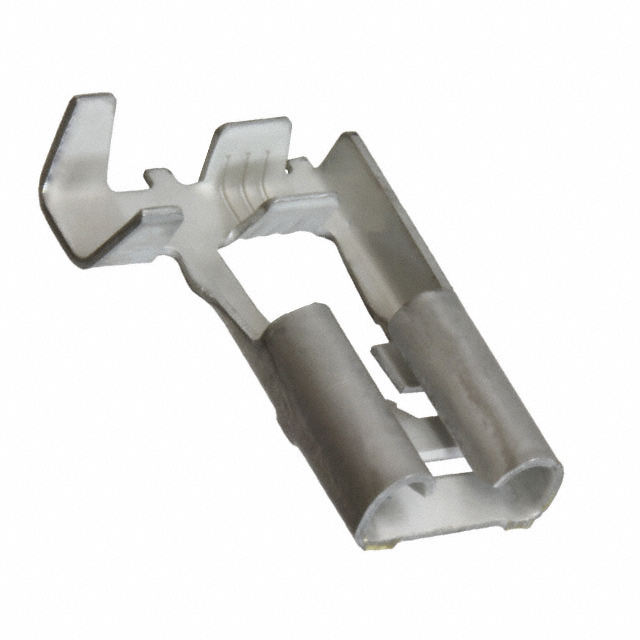

CONN QC RCPT 17-20AWG 0.250
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Termination | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Terminal Type | Contact Material | Gender | Tab Width | Tab Width | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Insulation | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 17 AWG | 20 AWG | Free Hanging (In-Line) Right Angle | Crimp | 3.3 mm | 0.13 in | Angled - 90° Flag | Brass | Female | 6.35 mm | 0.25 in | 0.032 in | 0.81 mm | 0.299 in | 7.6 mm | Non-Insulated | Tin |
