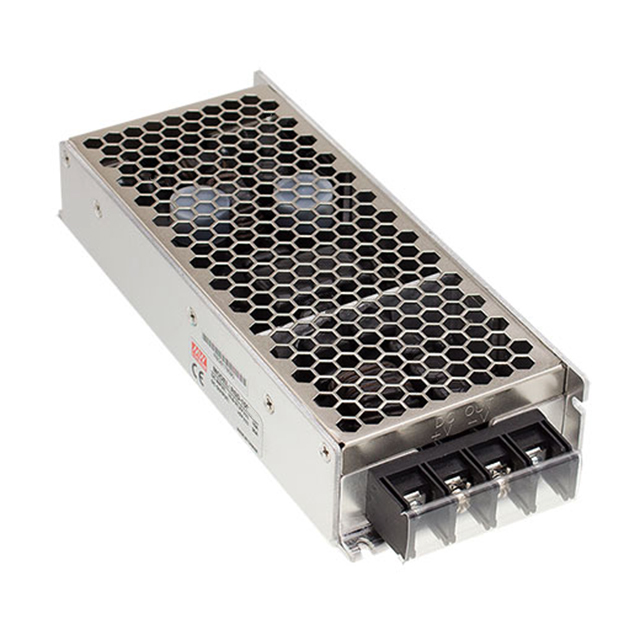

RSD-150D Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER 12V 150W
| Part | Number of Outputs | Voltage - Input (Min) [Min] | Mounting Type | Current - Output (Max) [Max] | Voltage - Output 1 | Applications | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Efficiency | Type | Approval Agency | Voltage - Input (Max) [Max] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1 | 67.2 V | Chassis Mount | 12.5 A | 12 V | ITE (Commercial) Railway | 150 W | 3.03 in | 189 mm | 77 mm | 7.44 in | 1.42 " | 36 mm | 92 % | Enclosed | CE | 143 V | 4000 V |
MEAN WELL USA Inc. | 1 | 67.2 V | Chassis Mount | 30 A | 5 V | ITE (Commercial) Railway | 150 W | 3.03 in | 189 mm | 77 mm | 7.44 in | 1.42 " | 36 mm | 90 % | Enclosed | CE | 143 V | 4000 V |
