EL5411 Series

Catalog

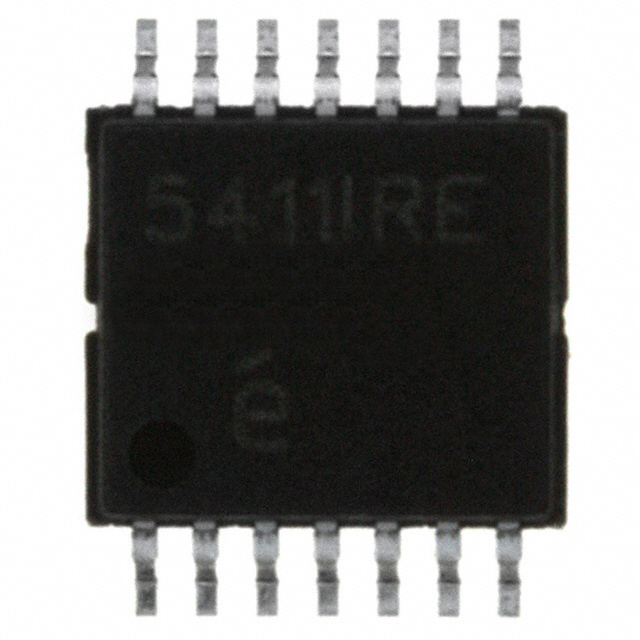

IC OPAMP VFB 4 CIRCUIT 14HTSSOP

Part	Amplifier Type	Output Type	Current - Supply	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Current - Input Bias	-3db Bandwidth	Package / Case	Supplier Device Package	Current - Output / Channel	Slew Rate	Voltage - Supply Span (Max) [Max]	Number of Circuits	Mounting Type
Renesas Electronics Corporation EL5411IREZ-T13	Voltage Feedback	Rail-to-Rail	10 mA	85 °C	-40 °C	3 mV	4.5 V	2 nA	60 MHz	14-TSSOP (0.173" 4.40mm Width) Exposed Pad	14-HTSSOP	65 mA	75 V/µs	16.5 V	4	Surface Mount
Renesas Electronics Corporation EL5411IRE-T7	Voltage Feedback	Rail-to-Rail	10 mA	85 °C	-40 °C	3 mV	4.5 V	2 nA	60 MHz	14-TSSOP (0.173" 4.40mm Width) Exposed Pad	14-HTSSOP	65 mA	75 V/µs	16.5 V	4	Surface Mount
Renesas Electronics Corporation EL5411IRZ	Voltage Feedback	Rail-to-Rail	10 mA	85 °C	-40 °C	3 mV	4.5 V	2 nA	60 MHz	14-TSSOP (0.173" 4.40mm Width) Exposed Pad	14-HTSSOP	65 mA	75 V/µs	16.5 V	4	Surface Mount
Renesas Electronics Corporation EL5411IRE	Voltage Feedback	Rail-to-Rail	10 mA	85 °C	-40 °C	3 mV	4.5 V	2 nA	60 MHz	14-TSSOP (0.173" 4.40mm Width) Exposed Pad	14-HTSSOP	65 mA	75 V/µs	16.5 V	4	Surface Mount
