P70-11000 Series
Manufacturer: Harwin Inc.
Beta
⌘K

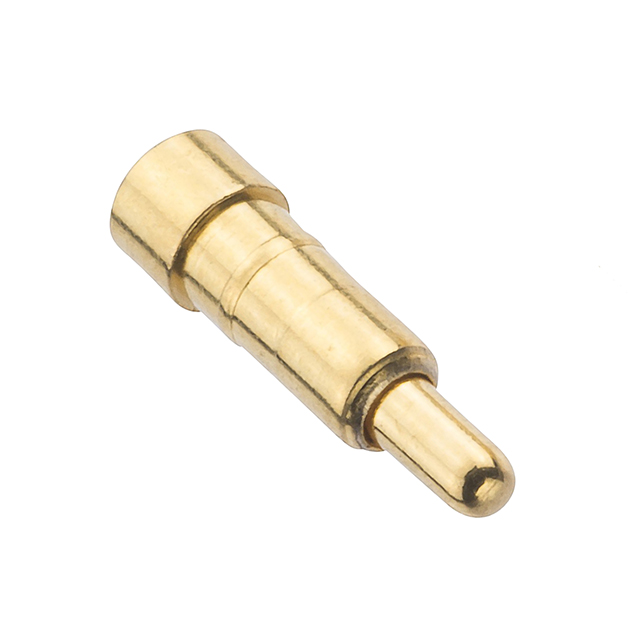

SPRING LOADED CONTACT, PIN, 6.3MM, SMT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force - Mid Compression | Mounting Type | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height | Minimum Working Height | Contact Finish | Mating Cycles | Contact Type | Current Rating (Amps) | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | 124.41 gf | Surface Mount | 0.035 in | 0.9 mm | 4.7 mm | 0.185 in | Gold | 10000 | Sleeve & Plunger (Pogo Pins) | 2 A | 0.209 in | 5.3 mm | Brass | 16 µin | 0.41 µm | 2 mm | 0.079 in | Circular | 0.197 in | 5 mm |
