2249/12C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

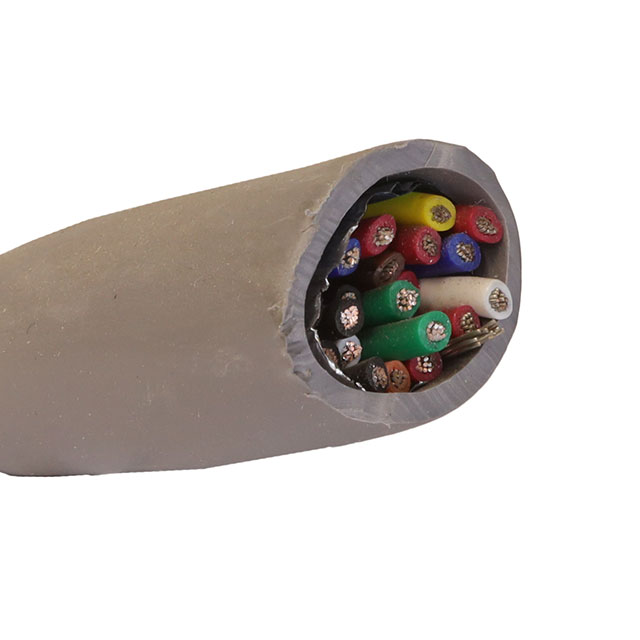

CABLE 12COND 18AWG SHLD 100'
| Part | Shield Material | Shield Coverage | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Cable Type | Usage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Voltage | Number of Conductors | Length [x] | Length [x] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Foil | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Communication Control | Drain Wire | 1.397 mm | 0.055 in | Copper Tinned | Slate | 0.652 in | 16.56 mm | Poly-Vinyl Chloride (PVC) | 300 VDC | 12 | 100 ft | 30.5 m | 18 AWG | 16 | 30 AWG | ||
ALPHA WIRE | Aluminum | 100 % | Foil | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Communication Control | Drain Wire | 1.397 mm | 0.055 in | Copper Tinned | Slate | 0.652 in | 16.56 mm | Poly-Vinyl Chloride (PVC) | 300 VDC | 12 | 18 AWG | 16 | 30 AWG | 304.8 m | 1000 ft |
