R12331 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

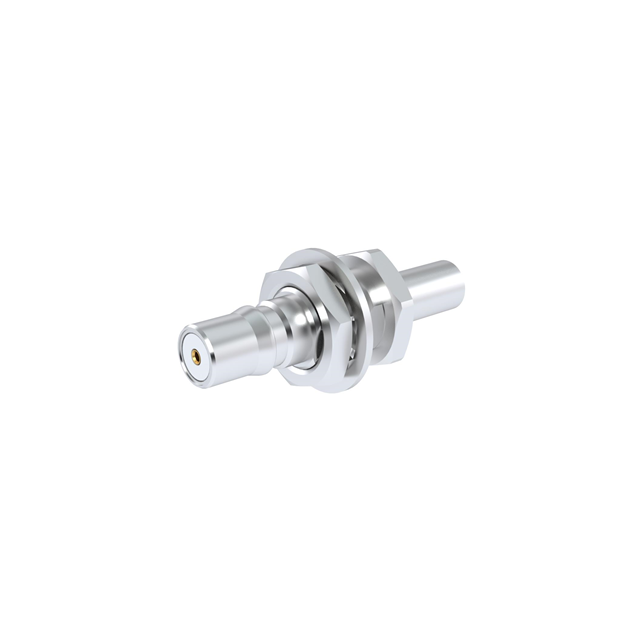

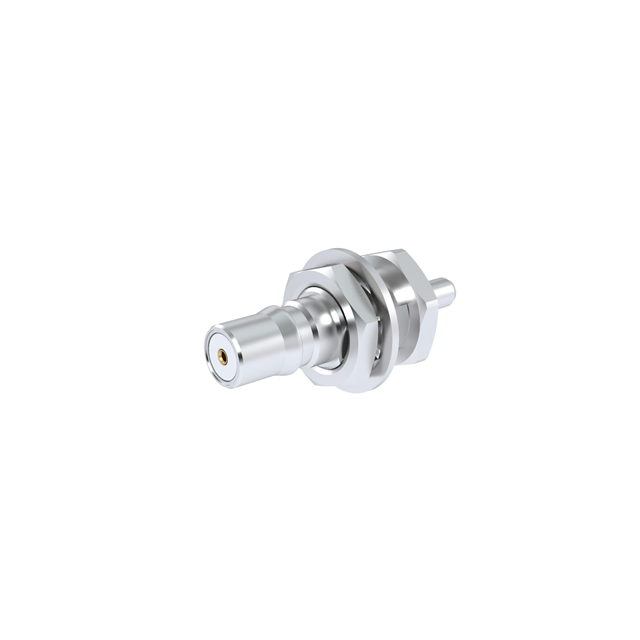

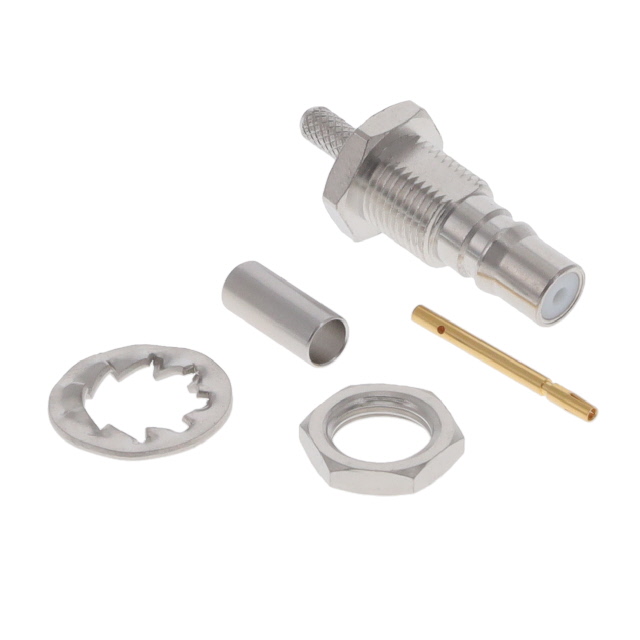

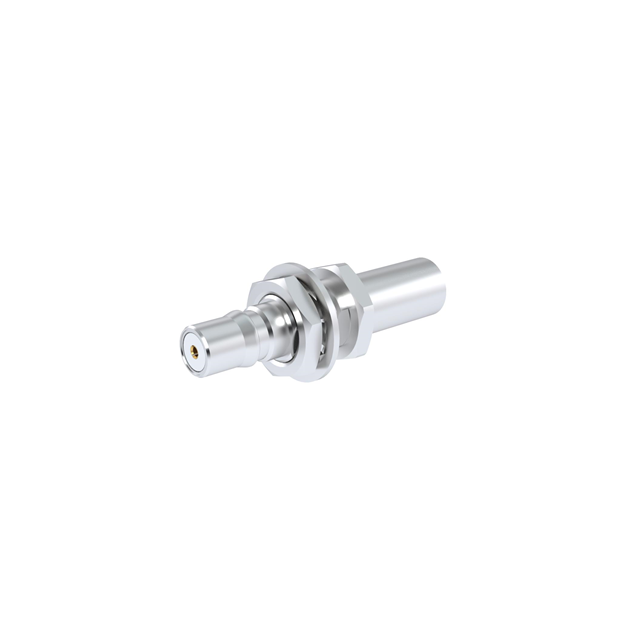

QMA / STRAIGHT BULKHEAD JACK CRI
| Part | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Body Material | Voltage Rating | Body Finish | Center Contact Material | Shield Termination | Impedance | Mounting Type | Frequency - Max [Max] | Connector Type | Housing Color | Cable Group | Mounting Feature | Number of Ports | Contact Termination | Fastening Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 0.25 dB | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 250 V | White Bronze | Beryllium Copper | Crimp | 50 Ohms | Panel Mount | 6000 MHz | Female Socket Jack | Silver | 316 RG-188 | Bulkhead - Front Side Nut | 1 | Crimp | Snap-On | |
 Radiall USA, Inc. | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 335 V | White Bronze | Beryllium Copper | Crimp | 50 Ohms | Panel Mount | 6000 MHz | Female Socket Jack | Silver | 223 400 RG-142 | Bulkhead - Front Side Nut | 1 | Crimp | Snap-On | ||
Radiall USA, Inc. | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 335 V | White Bronze | Beryllium Copper | Crimp | 50 Ohms | Panel Mount | 6000 MHz | Female Socket Jack | Silver | 223 400 RG-142 | Bulkhead - Front Side Nut | 1 | Crimp | Snap-On | ||
 Radiall USA, Inc. | 0.25 dB | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 250 V | White Bronze | Beryllium Copper | Crimp | 50 Ohms | Panel Mount | 6000 MHz | Female Socket Jack | Silver | 316 RG-188 | Bulkhead - Front Side Nut | 1 | Crimp | Snap-On | |
 Radiall USA, Inc. | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 250 V | White Bronze | Beryllium Copper | Crimp | 50 Ohms | Panel Mount | 6000 MHz | Female Socket Jack | Silver | RG-316 Double Braid | Bulkhead - Front Side Nut | 1 | Crimp | Snap-On | ||
 Radiall USA, Inc. | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 335 V | White Bronze | Beryllium Copper | Crimp | 50 Ohms | Panel Mount | 6000 MHz | Female Socket Jack | Silver | RG-58 | Bulkhead - Front Side Nut | 1 | Crimp | Snap-On | 141 | |
Radiall USA, Inc. | -40 C | 105 ░C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 250 V | White Bronze | Beryllium Copper | Crimp | 50 Ohms | Panel Mount | 6000 MHz | Female Socket Jack | Silver | RG-316 Double Braid | Bulkhead - Front Side Nut | 1 | Crimp | Snap-On |
