CC-1-3046 Series

Catalog

PMI RND .319" LED 12V RED WIRE I

Part	Voltage	Viewing Angle	Panel Cutout Shape	Current	Type	Termination Style	Wavelength - Peak	Lamp Color	Millicandela Rating	Lens Color	Lens Size	Lens Size	Ratings	Lens Style	Panel Cutout Dimensions	Panel Cutout Dimensions
Visual Communications Company - VCC CC-1-3046-9908-I	1.9 V 12 V	30 °	Round	20 mA	LED	Wire Leads - 6.000" (152.40mm)	626 nm	Red	900 mcd	Red	5 mm	T-1 3/4	DC	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CC-1-3046-9910-I	1.9 V 24 V	30 °	Round	20 mA	LED	Wire Leads - 6.000" (152.40mm)	626 nm	Red	900 mcd	Red	5 mm	T-1 3/4	DC	Round with Domed Top	0.32 "	8.1 mm

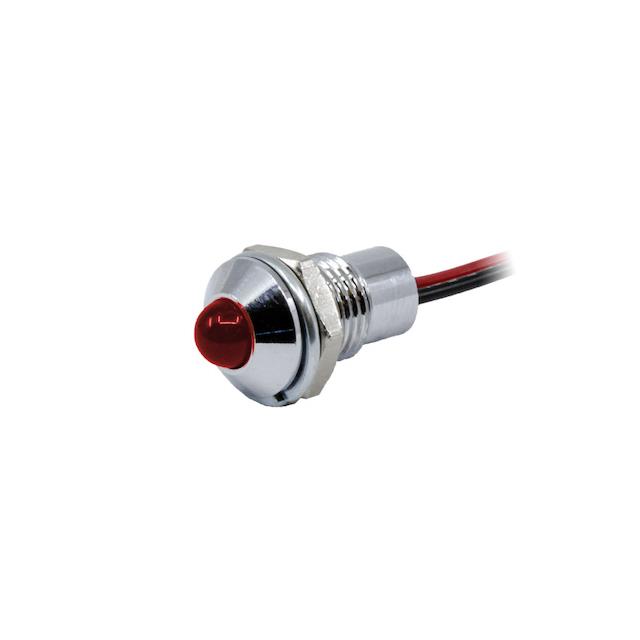

Visual Communications Company - VCC CC-1-3046-0000-I	1.9 V	30 °	Round	20 mA	LED	Wire Leads - 6.000" (152.40mm)	626 nm	Red	900 mcd	Red	5 mm	T-1 3/4		Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CC-1-3046-9920-I	1.9 V 120 V	30 °	Round	20 mA	LED	Wire Leads - 6.000" (152.40mm)	626 nm	Red	900 mcd	Red	5 mm	T-1 3/4	AC	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CC-1-3046-9912-I	1.9 V 48 V	30 °	Round	20 mA	LED	Wire Leads - 6.000" (152.40mm)	626 nm	Red	900 mcd	Red	5 mm	T-1 3/4	DC	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CC-1-3046-9907-I	1.9 V 5 V	30 °	Round	20 mA	LED	Wire Leads - 6.000" (152.40mm)	626 nm	Red	900 mcd	Red	5 mm	T-1 3/4	DC	Round with Domed Top	0.32 "	8.1 mm
Visual Communications Company - VCC CC-1-3046-9914-I	1.9 V 60 V	30 °	Round	20 mA	LED	Wire Leads - 6.000" (152.40mm)	626 nm	Red	900 mcd	Red	5 mm	T-1 3/4	DC	Round with Domed Top	0.32 "	8.1 mm
