M2013S3 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Features	Current Rating (Amps)	Illumination	Switch Function	Voltage Rating - DC	Actuator Type	Bushing Thread	Bushing Thread	Actuator Length [x]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type
NKK Switches M2013S3S4W01	Brass Chrome Plated	25000 Steps	125 V	6.5 mm	Epoxy Sealed Terminals	3 A 6 A	Non-Illuminated	On-Off-On	30 V	Standard Round	0.75	M6	6.5 mm	Solder Lug	85 °C	-30 ░C	SPDT	Panel Mount
NKK Switches M2013S3S2W45	Brass Chrome Plated	25000 Steps	125 V	6.5 mm	Epoxy Sealed Terminals	4 A 6 A	Non-Illuminated	On-Off-On	30 V	Standard Round		Unthreaded	6.5 mm	PC Pin	85 °C	-30 ░C	SPDT	Right Angle Through Hole Vertical
NKK Switches M2013S3S1G03	Brass Chrome Plated	50000 Cycles	28 V	6.5 mm	Epoxy Sealed Terminals	0.4 VA	Non-Illuminated	On-Off-On	28 V	Standard Round		1/4-40	6.5 mm	PC Pin	85 °C	-30 ░C	SPDT	Panel Mount

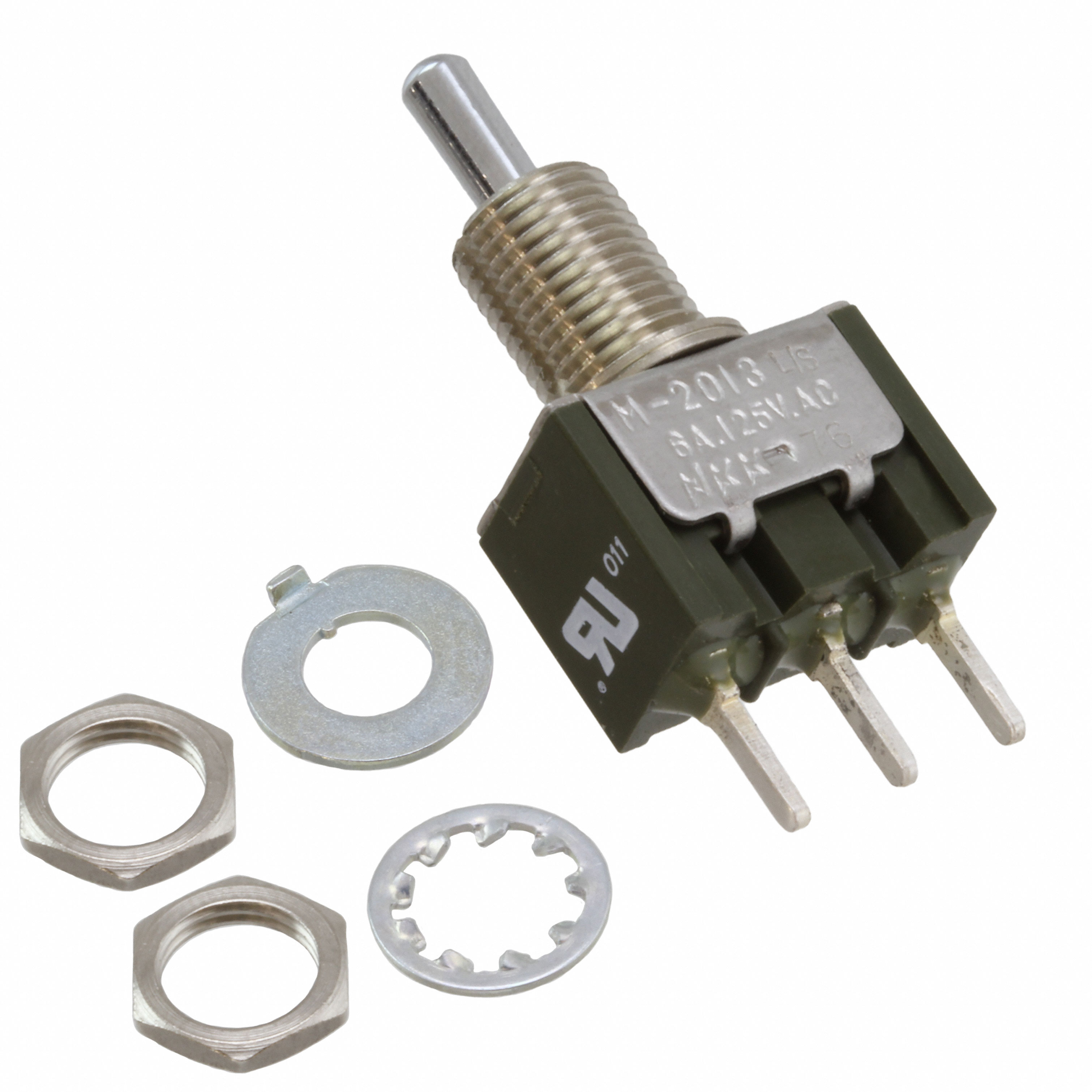

NKK Switches M2013S3S1W03	Brass Chrome Plated	25000 Steps	125 V	6.5 mm	Epoxy Sealed Terminals	3 A 6 A	Non-Illuminated	On-Off-On	30 V	Standard Round		1/4-40	6.5 mm	PC Pin	85 °C	-30 ░C	SPDT	Panel Mount

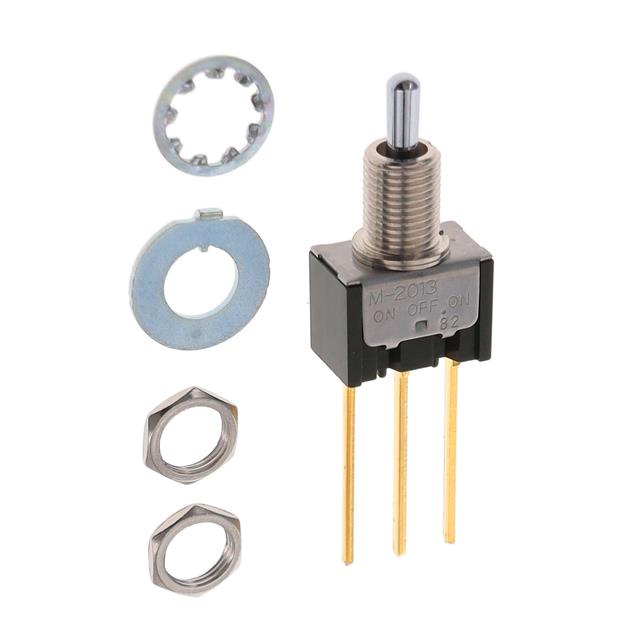

NKK Switches M2013S3S1G06	Brass Chrome Plated	50000 Cycles	28 V	6.5 mm	Epoxy Sealed Terminals	0.4 VA	Non-Illuminated	On-Off-On	28 V	Standard Round		1/4-40	6.5 mm	Wire Wrap	85 °C	-30 ░C	SPDT	Panel Mount
