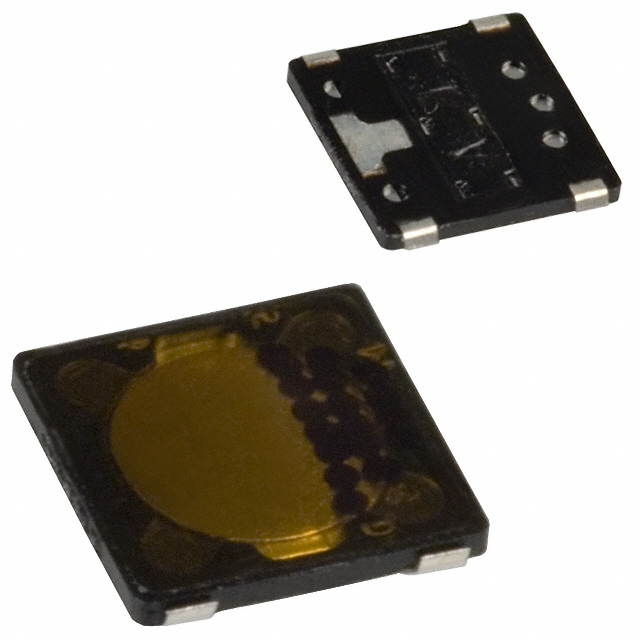

EVQ-P6 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Actuator Type	Circuit	Actuator Orientation	Switch Function	Illumination	Ingress Protection	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]	Mounting Type	Switch Travel	Mechanical Life	Termination Style	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage [x]	Features
Panasonic Industrial Automation Sales EVQ-P6JB35	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.35 mm	4.1 mm	4.1 mm	Surface Mount	0.25 mm	200000 Cycles	J Lead	350 gf	-20 C	70 °C	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVQ-P6DB35	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.35 mm	4.1 mm	4.1 mm	Surface Mount	0.2 mm	1000000 Cycles	J Lead		-20 C	70 °C	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVQ-P6SB55	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.58 mm	4.1 mm	4.1 mm	Surface Mount	0.25 mm	1000000 Cycles	J Lead		-20 C	70 °C	0.02 A 15 VDC	Push Plate
Panasonic Industrial Automation Sales EVQ-P6YB55	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.58 mm	4.1 mm	4.1 mm	Surface Mount	0.2 mm	500000 Cycles	J Lead	240 gf	-20 C	70 °C	0.02 A 15 VDC	Push Plate
Panasonic Industrial Automation Sales EVQ-P6UB55	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.58 mm	4.1 mm	4.1 mm	Surface Mount	0.25 mm	500000 Cycles	J Lead	240 gf	-20 C	70 °C	0.02 A 15 VDC	Push Plate
Panasonic Industrial Automation Sales EVQ-P6LB55	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.58 mm	4.1 mm	4.1 mm	Surface Mount	0.2 mm	1000000 Cycles	J Lead		-20 C	70 °C	0.02 A 15 VDC	Push Plate
Panasonic Industrial Automation Sales EVQ-P6EB35	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.35 mm	4.1 mm	4.1 mm	Surface Mount	0.25 mm	1000000 Cycles	J Lead		-20 C	70 °C	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVQ-P6GB35	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.35 mm	4.1 mm	4.1 mm	Surface Mount	0.25 mm	500000 Cycles	J Lead	240 gf	-20 C	70 °C	0.02 A 15 VDC
Panasonic Industrial Automation Sales EVQ-P6WB55	Standard	SPST-NO	Top Actuated	Off-Mom	Non-Illuminated	Dust Proof	0.58 mm	4.1 mm	4.1 mm	Surface Mount	0.25 mm	200000 Cycles	J Lead	350 gf	-20 C	70 °C	0.02 A 15 VDC	Push Plate
