L77SDC37 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 37POS SLDR CUP

Part	Color	Dielectric Material	Voltage Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Contact Form	Flange Feature	Number of Rows [custom]	Connector Type	Mounting Type	Connector Style	Contact Finish Thickness	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Type	Number of Positions	Contact Finish	Material Flammability Rating	Termination	Features	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness

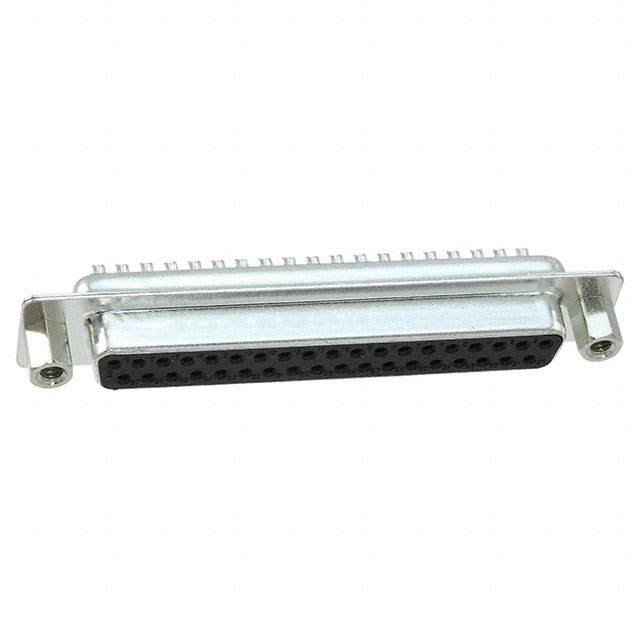

Amphenol ICC (Commercial Products) L77SDC37SVF	Black	Thermoplastic Glass Filled	250 V	Brass	-55 C	105 ░C	20 AWG	Stamped	4-40 Mating Side Female Screwlock	2	Receptacle Female Sockets	Free Hanging (In-Line)	D-Sub	Flash	3 A	4	DC C	Signal	37	Gold	UL94 V-0
Amphenol ICC (Commercial Products) L77SDC37S1ACH3F	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	Mating Side Female Screwlock (M3)	2	Receptacle Female Sockets	Right Angle Through Hole	D-Sub	Flash	3 A	4	DC C	Signal	37	Gold	UL94 V-0	Solder	Board Lock	10.3 mm	0.406 in

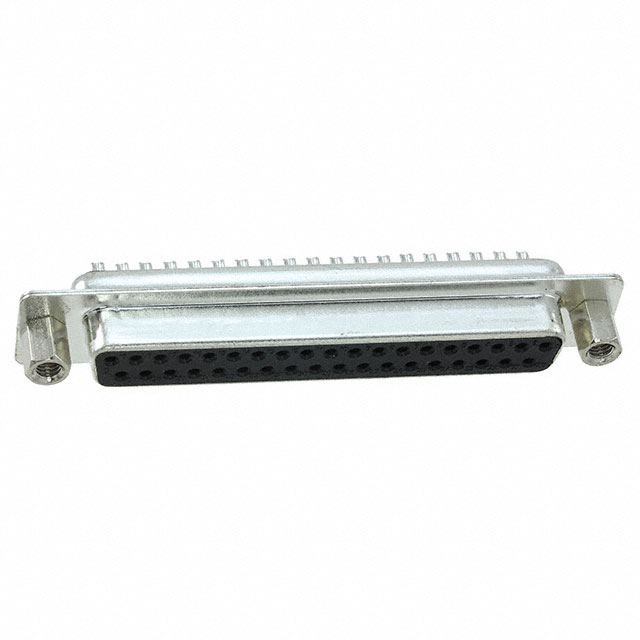

Amphenol ICC (Commercial Products) L77SDC37SVFM	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	Mating Side Female Screwlock (M3)	2	Receptacle Female Sockets	Free Hanging (In-Line)	D-Sub	Flash	3 A	4	DC C	Signal	37	Gold	UL94 V-0
Amphenol ICC (Commercial Products) L77SDC37S1ACH4R	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	Board Side (4-40)	2	Receptacle Female Sockets	Right Angle Through Hole	D-Sub	Flash	3 A	4	DC C	Signal	37	Gold	UL94 V-0	Solder	Board Lock	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L77SDC37SOL2VF	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	4-40 Mating Side Female Screwlock	2	Receptacle Female Sockets	Through Hole	D-Sub	Flash	3 A	4	DC C	Signal	37	Gold	UL94 V-0	Solder
Amphenol ICC (Commercial Products) L77SDC37SA4CH4RC309	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	Board Side (4-40)	2	Receptacle Female Sockets	Right Angle Through Hole	D-Sub		3 A	4	DC C	Signal	37	Gold	UL94 V-0	Solder	Board Lock	8.08 mm	0.318 "	30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L77SDC37SABCH4FC309	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	4-40 Mating Side Female Screwlock	2	Receptacle Female Sockets	Right Angle Through Hole	D-Sub		3 A	4	DC C	Signal	37	Gold	UL94 V-0	Solder	Board Lock	14.99 mm	0.59 in	30 Áin	0.76 Ám
Amphenol ICC (Commercial Products) L77SDC37S1ACH4FC309	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	4-40 Mating Side Female Screwlock	2	Receptacle Female Sockets	Right Angle Through Hole	D-Sub		3 A	4	DC C	Signal	37	Gold	UL94 V-0	Solder	Board Lock	10.3 mm	0.406 in	30 Áin	0.76 Ám

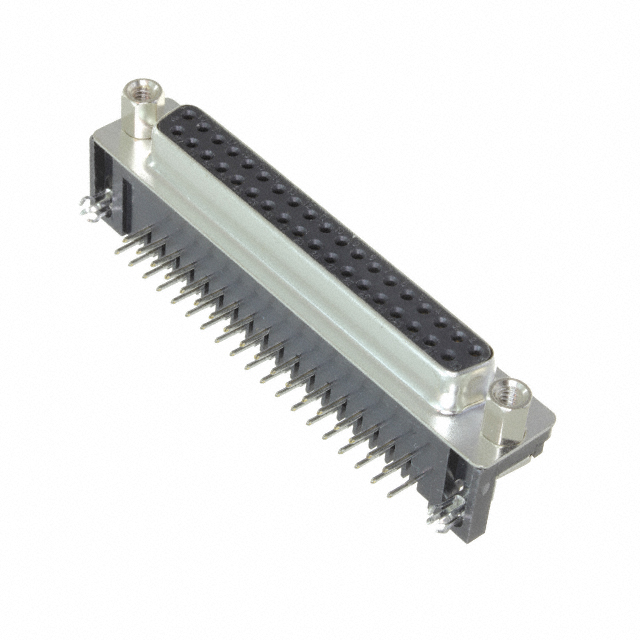

Amphenol ICC (Commercial Products) L77SDC37SA4CH4F	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	4-40 Mating Side Female Screwlock	2	Receptacle Female Sockets	Right Angle Through Hole	D-Sub	Flash	3 A	4	DC C	Signal	37	Gold	UL94 V-0	Solder	Board Lock	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) L77SDC37SA4CH3R	Black	Thermoplastic Glass Filled	250 V	Phosphor Bronze	-55 C	125 °C		Stamped	Board Side (M3)	2	Receptacle Female Sockets	Right Angle Through Hole	D-Sub	Flash	3 A	4	DC C	Signal	37	Gold	UL94 V-0	Solder	Board Lock	8.08 mm	0.318 "
